Lower Extremity Bones

Helpfulness: 0
Set Details Share
created 5 years ago by nicolefraserr
756 views
updated 5 years ago by nicolefraserr
show moreless
Page to share:
Embed this setcancel
COPY
code changes based on your size selection
Size:
X
Show:
1

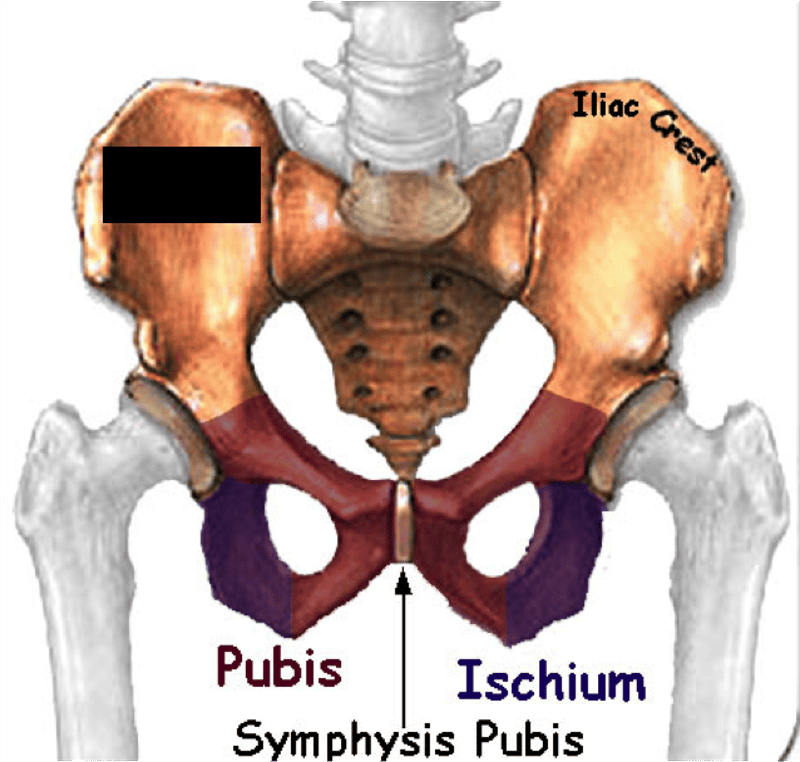

Ilium

card image

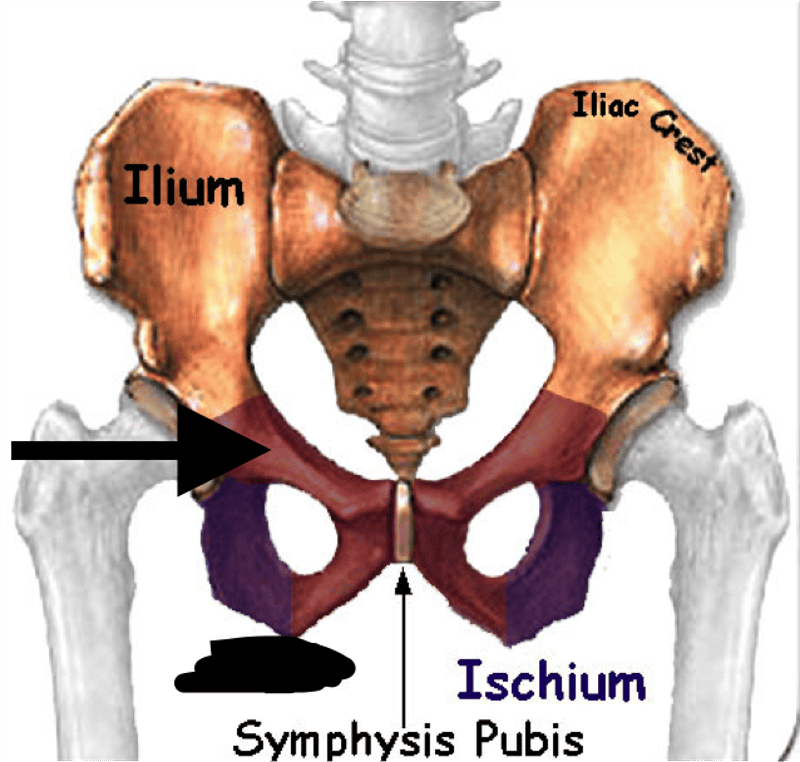

2

Ischium

card image
3

Pubis

card image

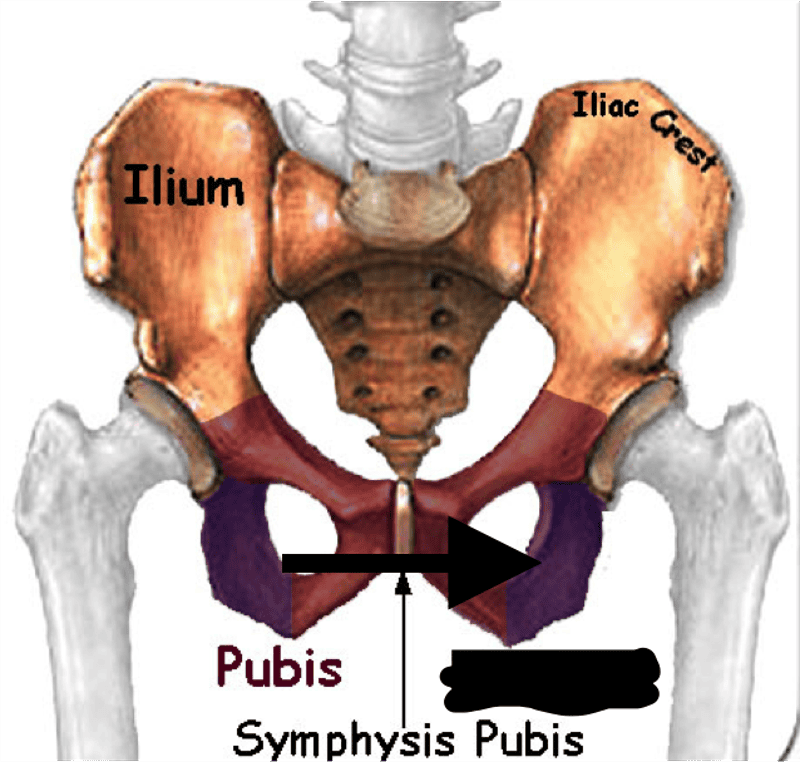

4

Sacrum

card image
5

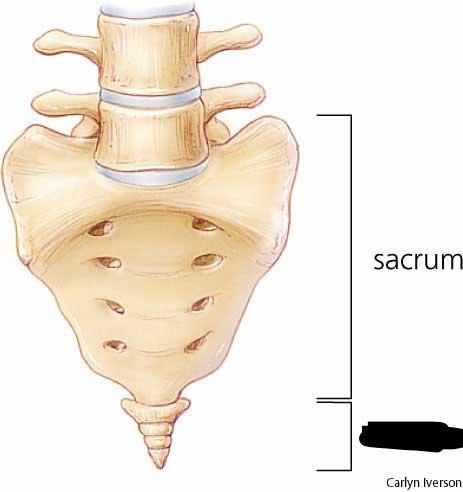

Coccyx

card image
6

location of the ilium

largest and uppermost portion

7

location of the ischium

lowest portion

8

location of the pubis

anterior portion

9

Acetabulum is formed by what

all 3 bones of the innominate

10

Articulation site for Acetabulum

Between femur and coxa

-coxofemoral joint

11

what forms the obturator foramen

ischium & pubis

12

Largest foremen in body

Obturator forament

13

Acetabulum

card image
14

Obturator Foramen

card image
15

Landmarks on the Ilium

-Anterior inferior iliac spine (AIIS)

-Anterior superior iliac spine (ASIS)

-Posterior inferior iliac spine (PIIS)

-Posterior superior iliac spine (PSIS)

-Iliac crest

-Iliac fossa

-Greater Sciatic notch

16

Anterior inferior iliac spine (AIIS)

card image
17

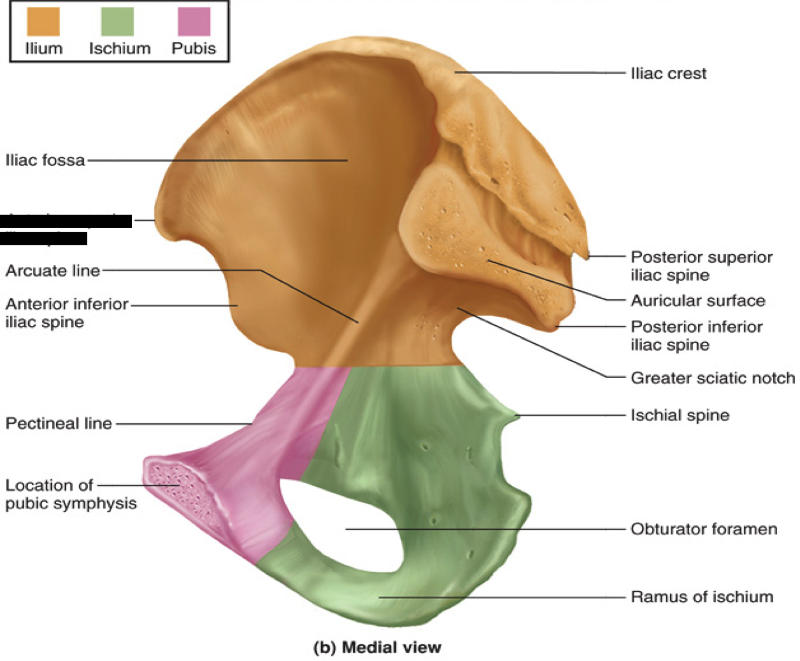

Anterior superior iliac spine (ASIS)

card image

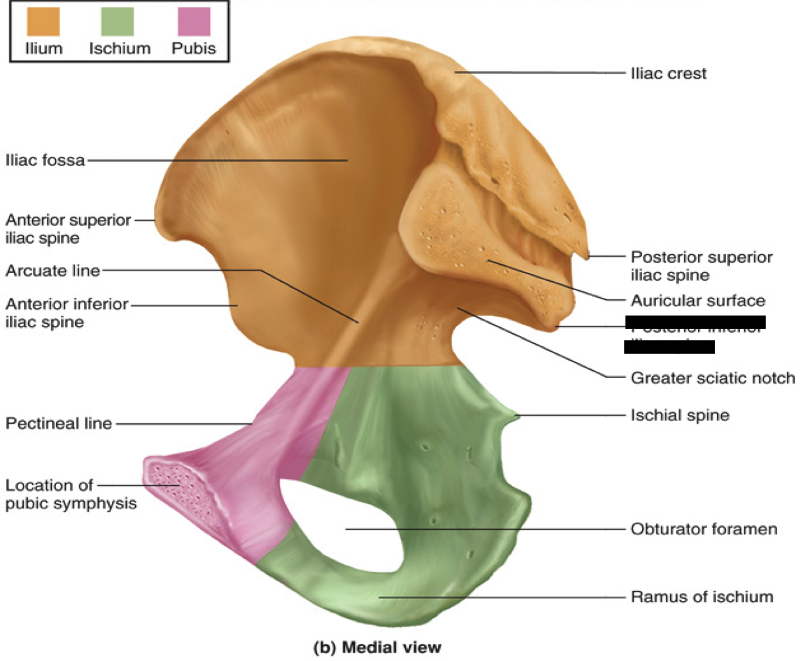

18

Posterior inferior iliac spine (PIIS)

card image
19

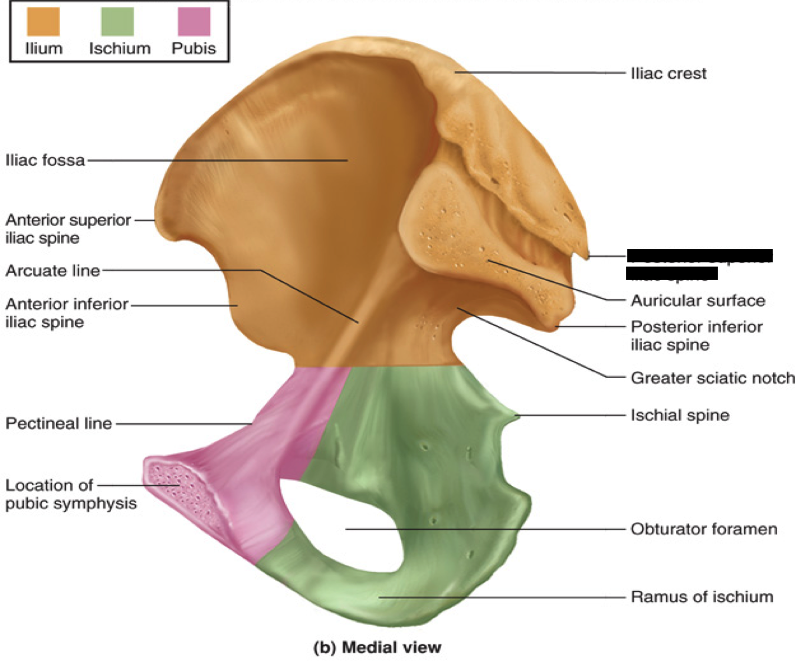

Posterior superior iliac spine (PSIS)

card image
20

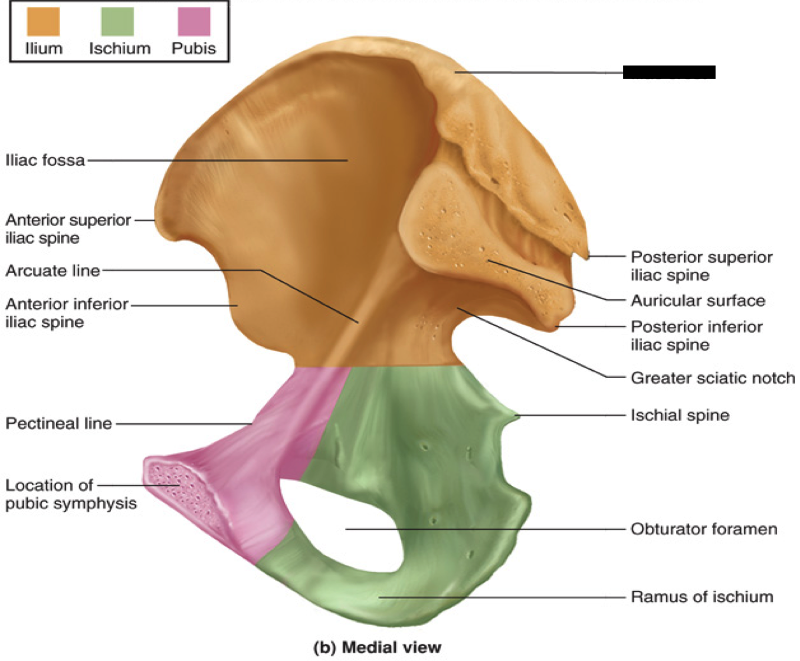

Iliac crest

card image
21

Iliac fossa

card image
22

Greater Sciatic notch

card image
23

Landmarks on the Ischium

-Ischial tuberosity

-Ischial spine

-Ramus of the ischium

24

Ischial tuberosity

card image
25

Ischial Spine

card image
26

Ramus of the ischium

card image
27

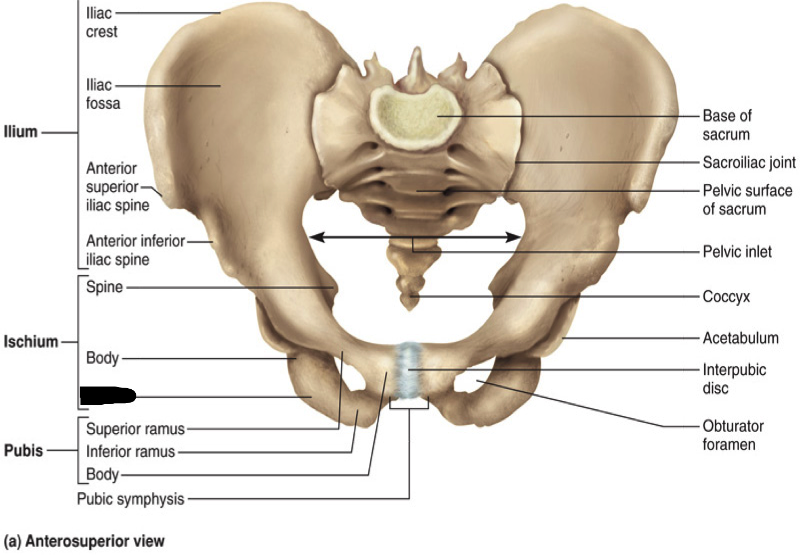

Landmarks on the Pubis

-Superior ramus of pubis

-Inferior ramus of pubis

-Pubic tubercle

-Body of pubis

28

Superior ramus of pubis

card image
29

Inferior ramus of pubis

card image
30

Pubic tubercle

card image
31

Body of pubis

card image
32

Sciatic Nerve properties

-Emerges from lumbosacral plexus (L4-S3)

-Travels through greater sciatic foramen

33

What nerves does the sciatic nerve form

Tibial nerve

common peroneal nerve

34

Pelvic Girdle Functions

-Provides support to the body's weight (trunk/core)

-Provides articulation sites LE limbs

-Provides attachment sites for LE musculature

-Provides protection for lower quadrant organs: (bladder, reproductive organs, distal large intestines

*LE = lower extremity

35

Posterior superior iliac spine (PSIS)

card image
36

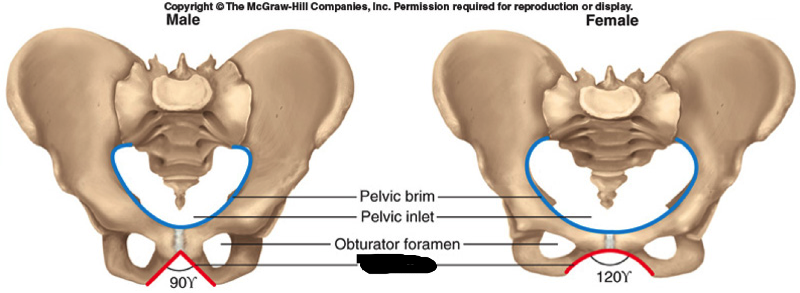

Gender Differences in the pelvic girdle

-Female has a larger pelvic arch

-Female has larger, more round pelvic brim

-Female has smaller more oval/triangular obturator foramen

37

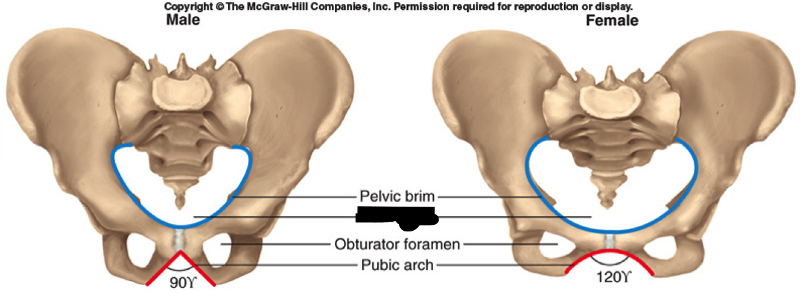

Pelvic Brim

card image
38

Pelvic Arch

card image
39

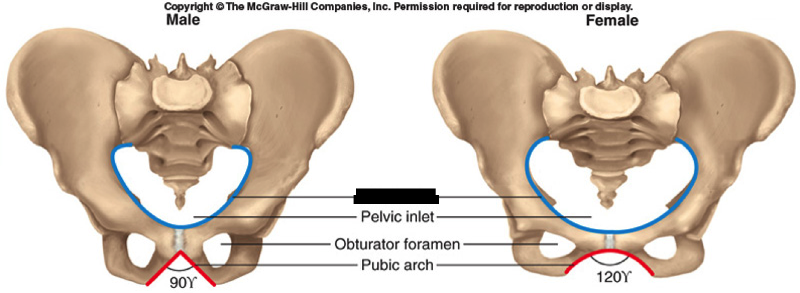

Pelvic inlet

card image
