1
card image

What is the highlighted area?

Sphenoid bone

2
card image

What is the blue line called

Alveolar margin

3
card image

what is the process

Coronoid process

4
card image

Name the highlighted area

Foramen magnum

5
card image

Name the highlighted section

Crista galli

6
card image

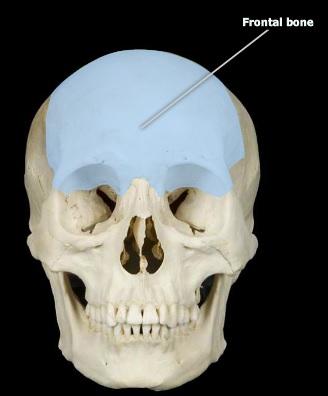

What is the blue area called?

Frontal bone

7
card image

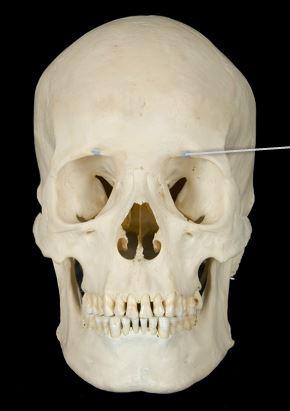

What Foramen is this highlighted area

Supraorbital foramen

8
card image

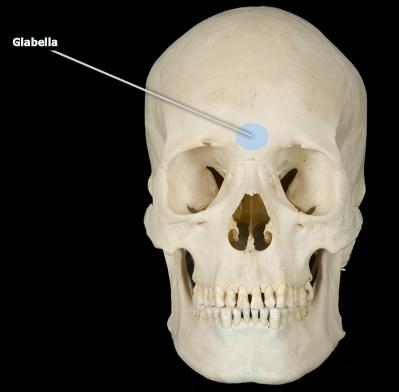

What is the blue area called?

Glabella

9
card image

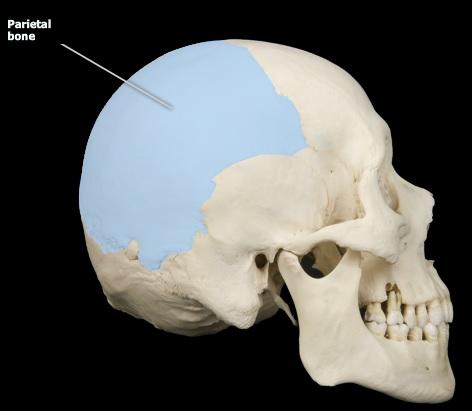

What is the blue area called?

Parietal bone

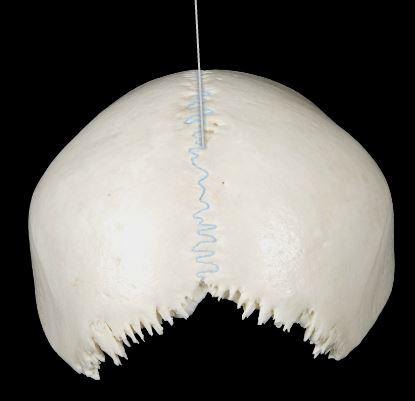

10
card image

What Suture is this?

Sagital suture

11
card image

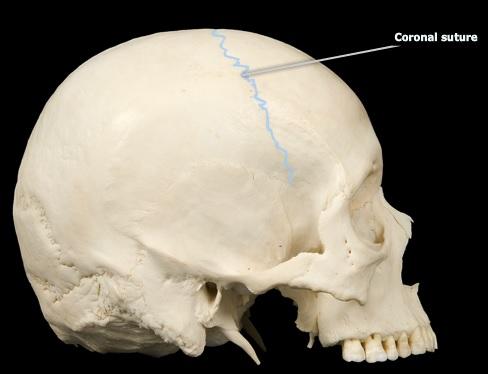

What is the blue line called?

Coronal suture

12
card image

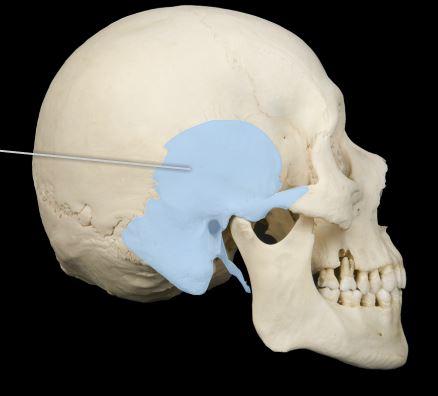

What is this blue area called?

Temporal bone

13
card image

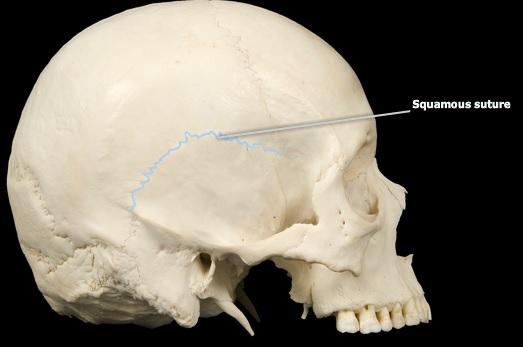

What is the blue line called

Squamous suture

14
card image

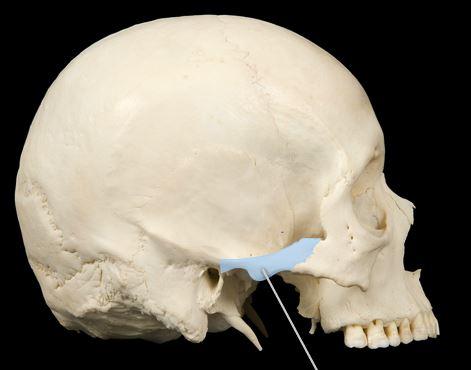

What is the blue area called?

Zygomatic process

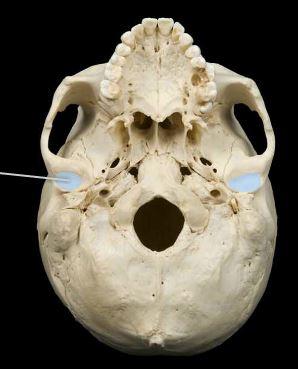

15
card image

Name the blue area?

Mandibular fossa

16
card image

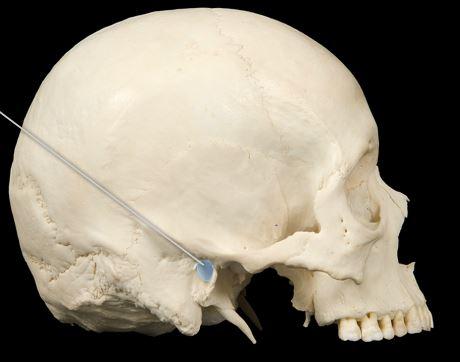

Name the highlighted area?

External acoustic meatus

17
card image

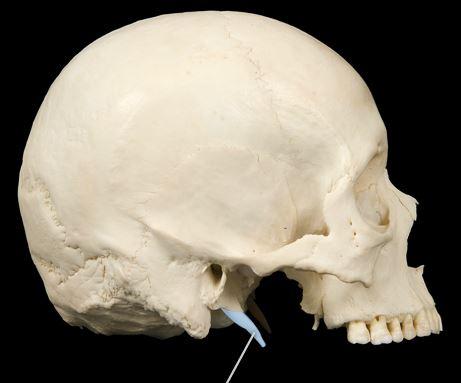

Name the blue part?

Styloid process

18
card image

Name the blue section?

Mastoid process

19
card image

Name the blue section?

Jugular foramen

20
card image

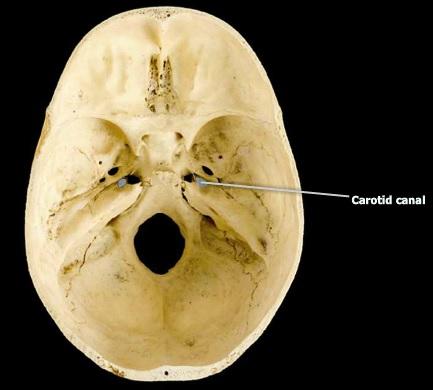

Name the blue area?

Carotid canal

21
card image

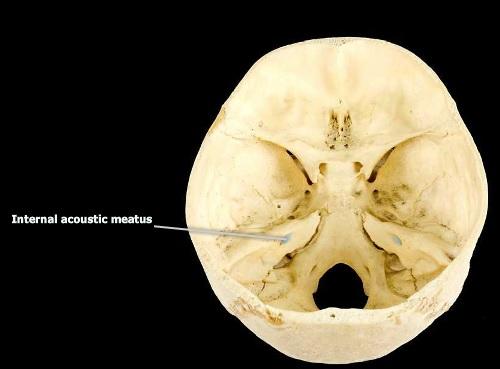

Name the blue area?

Internal acoustic meatus

22
card image

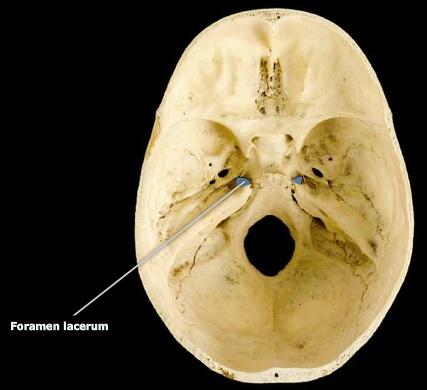

Name the blue part?

Foramen lacerum

23
card image

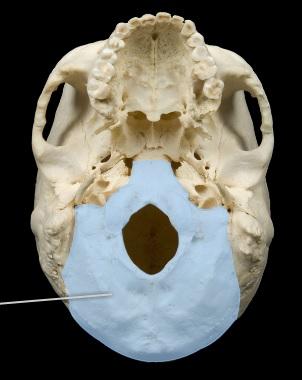

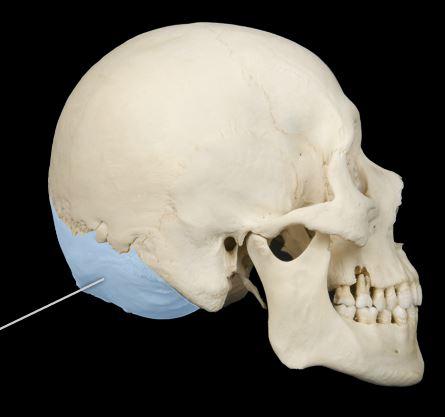

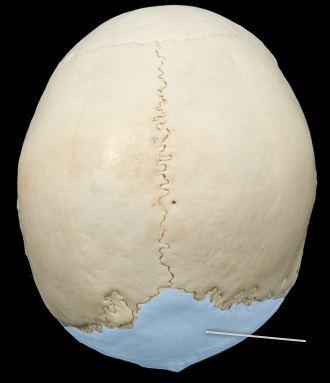

Name the blue part?

Occipital bone

24
card image

Name the blue part

Occipital bone

25
card image

Name the blue part

Occipital bone

26
card image

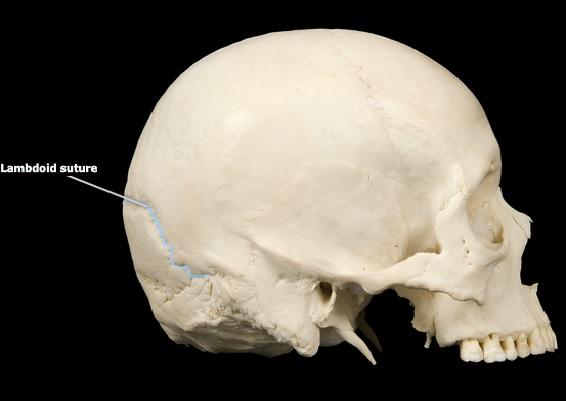

Name the blue line?

Lambdoid suture

27
card image

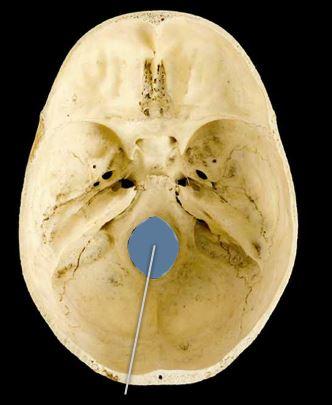

Name the blue section?

Foramen magnum

28
card image

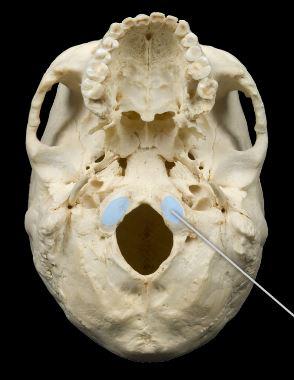

Name the blue portion?

Occipital condyles

29
card image

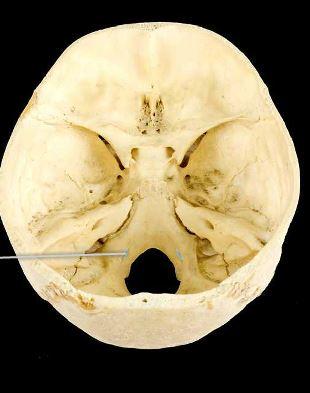

Name the blue section?

Hypoglossal canal

30
card image

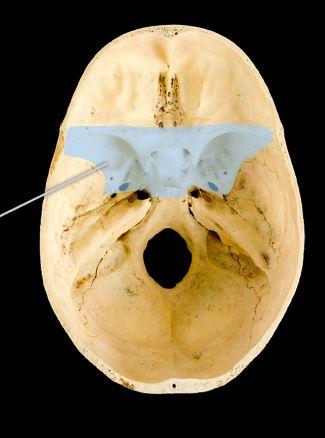

Name the blue section?

Sphenoid bone

31
card image

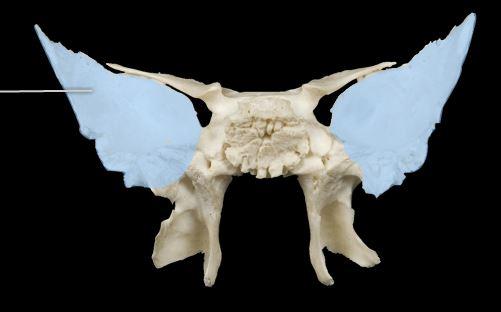

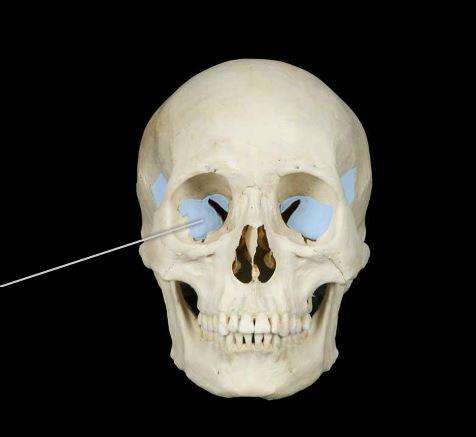

Name the highlighted blue section?

Greater wings

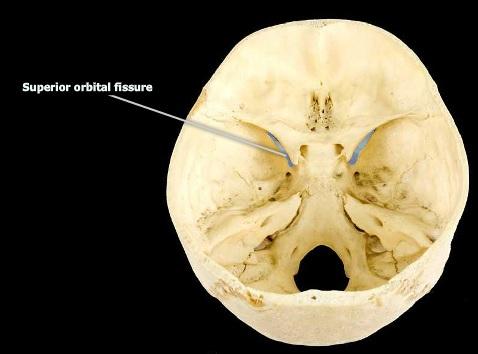

32
card image

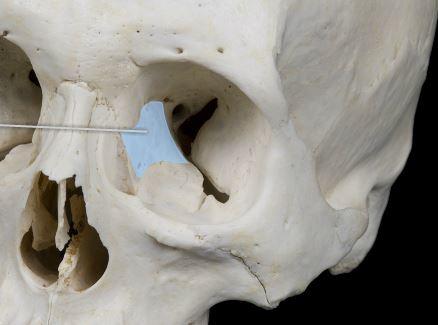

Name the blue section?

Superior orbital fissure

33
card image

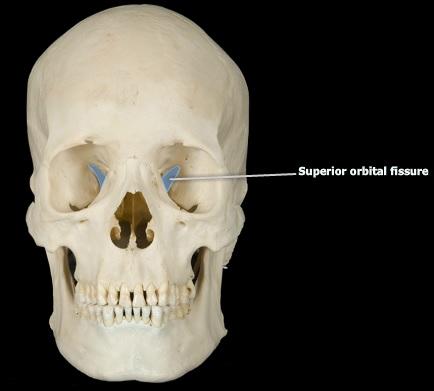

Name blue section?

Superior orbital fissure

34
card image

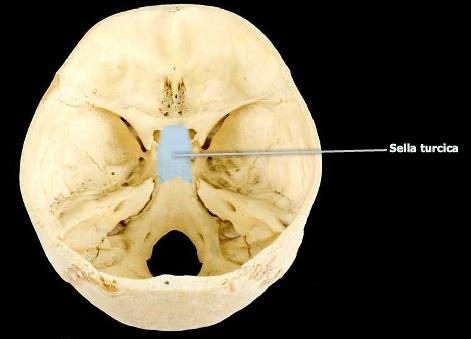

Name the blue section?

Sella turcica

35
card image

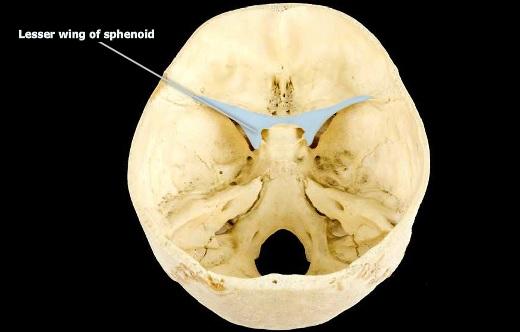

Name the blue section?

Lesser wing

36
card image

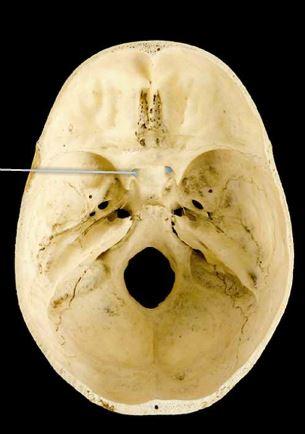

Name the blue section?

Optic canal

37

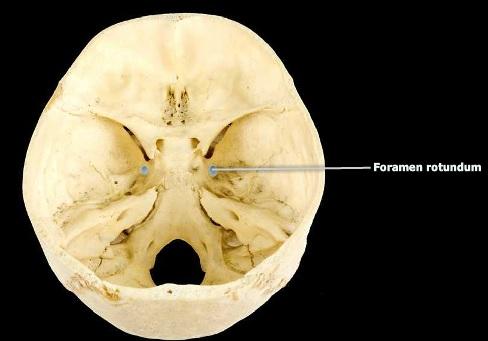

card image

Name the blue section?

Foramen rotundum

38
card image

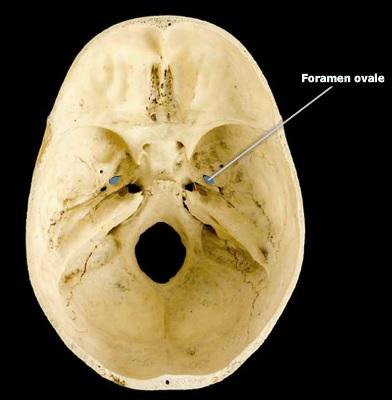

Name the blue area?

Foramen ovale

39
card image

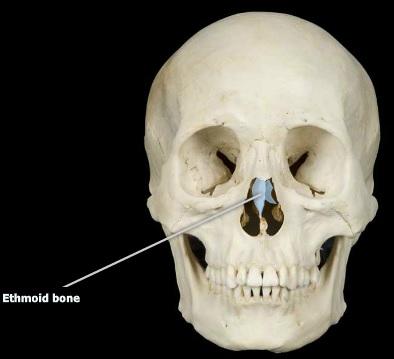

Name blue section?

Ethmoid bone

40
card image

Name blue section?

Ethmoid bone

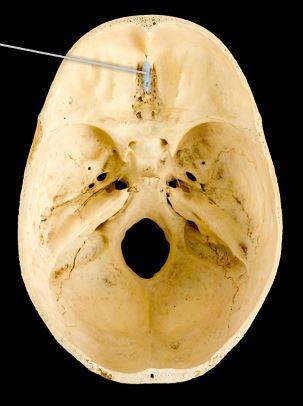

41
card image

Name blue section?

Crista galli

42
card image

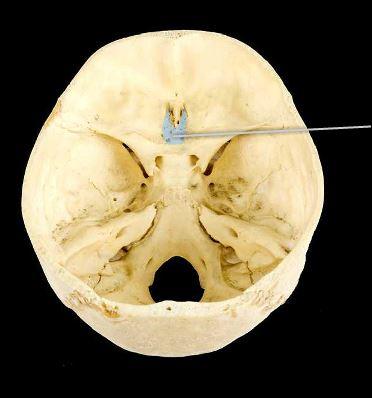

Name blue section

Cribiform plates

43
card image

Name blue section

Middle nasal conchae

44
card image

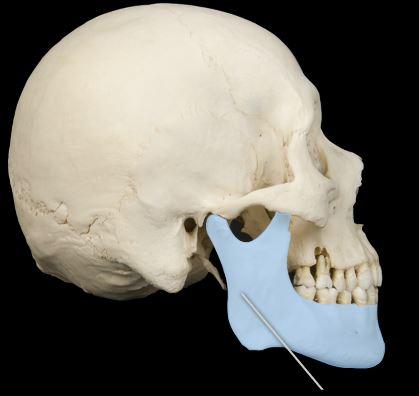

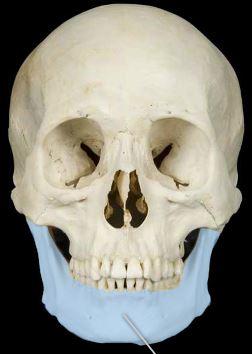

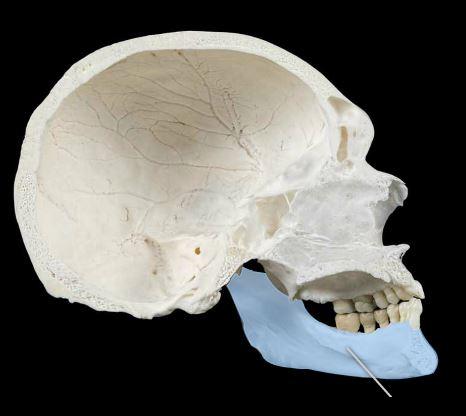

Name blue section

Mandible

45
card image

Name blue section?

Mandible

46
card image

Name blue section?

Mandible

47
card image

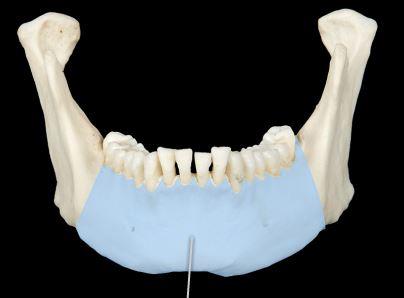

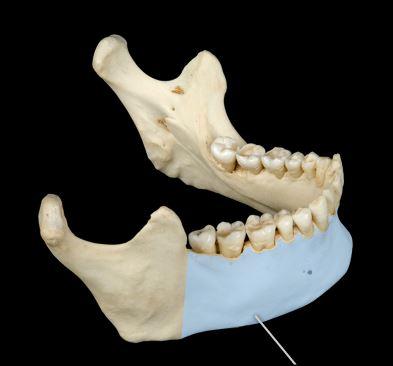

What portion of the Mandible is this highlighted in blue?

Body

48
card image

Name the section in blue?

Body

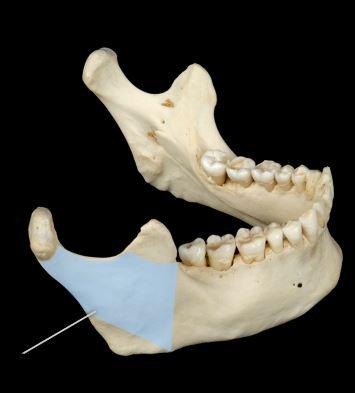

49
card image

Name the section in blue of the mandible?

Ramus

50
card image

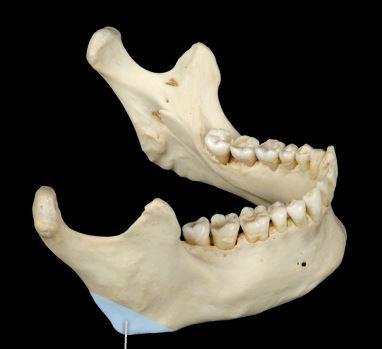

Name the section in blue?

Angle

51
card image

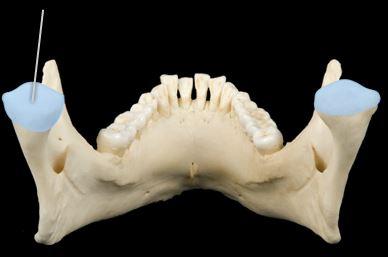

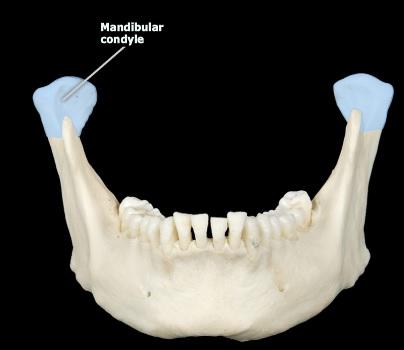

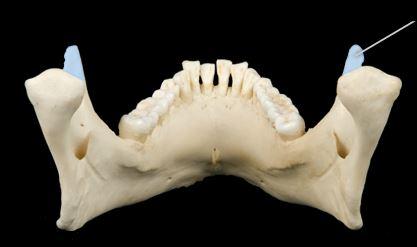

Name the section in blue?

Mandibular condyle

52
card image

Name the part in blue?

Mandibular condyle

53
card image

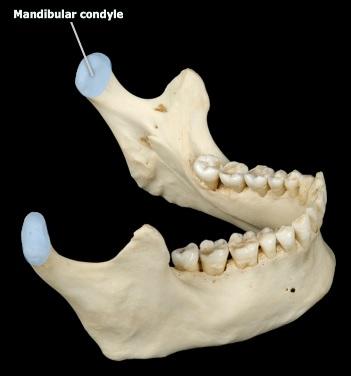

Name the section in blue?

Mandibular condyle

54
card image

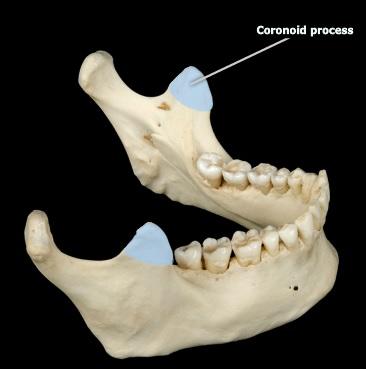

Name the section in blue?

Coronoid process

55
card image

Name section in blue?

Coronoid process

56
card image

Name the section in blue?

Coronoid process

57
card image

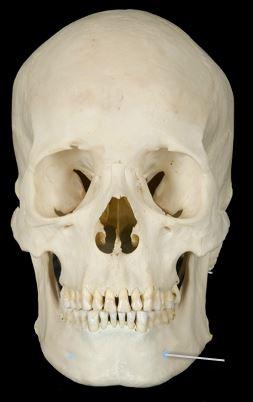

Name the blue section?

Mental foramen

58
card image

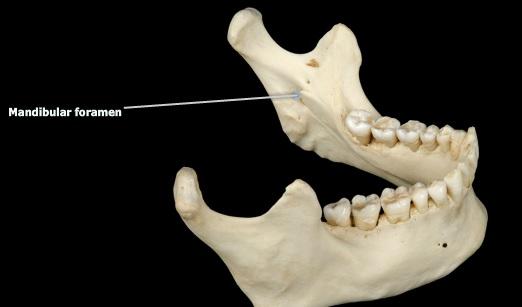

Name the section in blue?

Mandibular foramen

59
card image

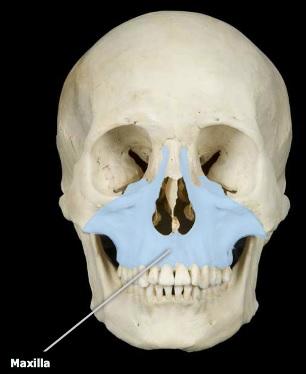

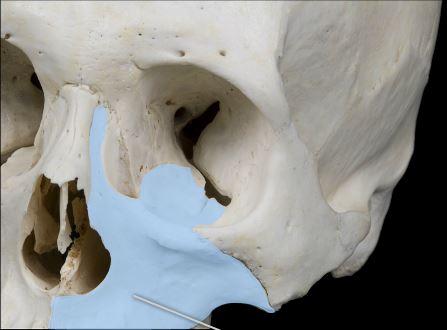

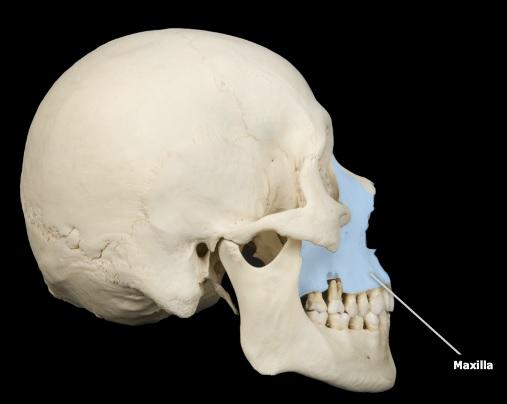

Name the blue section?

Maxillae

60
card image

Name the blue section?

Maxillae

61
card image

Name the blue section?

Maxillae

62
card image

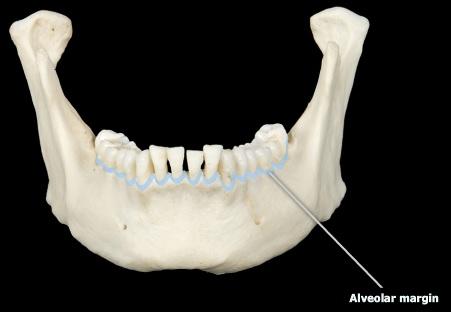

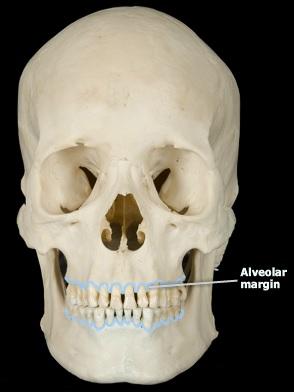

Name the blue line?

Alveolar margin

63
card image

Name the blue section?

Alveolar margin

64
card image

Name blue section?

Alveolar margin

65
card image

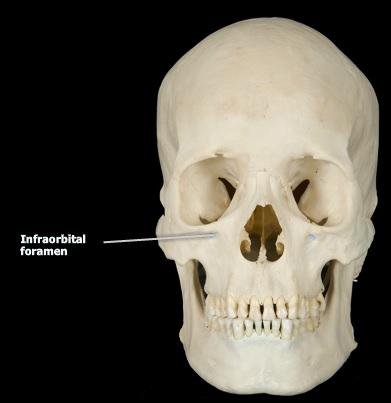

Name blue portion?

Infraorbital foramen

66
card image

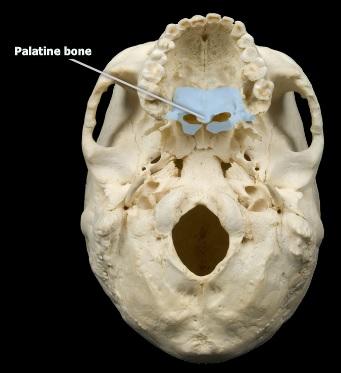

Name blue section?

Palantine bone

67
card image

Name the blue section?

Incisive fossa

68
card image

Name blue section?

Zygomatic process

69
card image

Name the blue section?

Vomer

70
card image

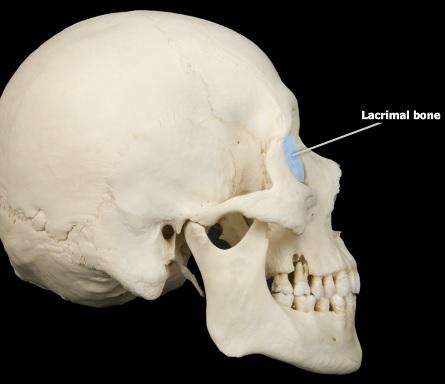

Name blue section?

Lacrimal bone

71
card image

Name blue section?

Lacrimal bone

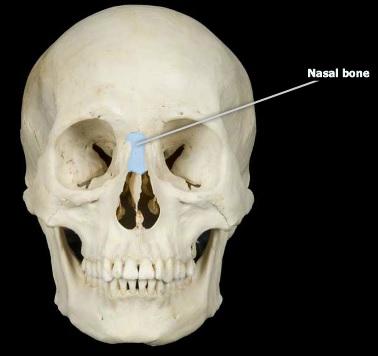

72
card image

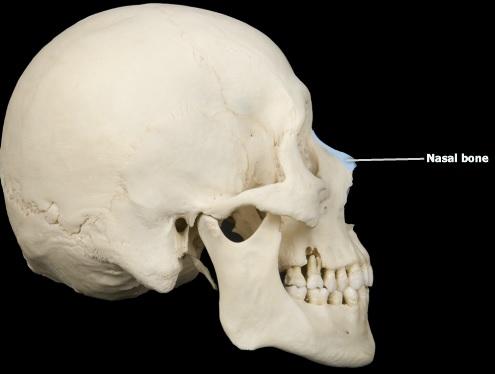

Name blue section?

Nasal bone

73
card image

Name blue section?

Nasal bone

74
card image

Name blue section?

Inferior nasal conchae
