electrical vs. chemical synapses
electrical: current flows freely through open gap junctions
chemical: NTs are released from the presynaptic cell, traverse the cleft and bind to receptors on the post synaptic cell
what can pass easily through gap junction pores
ions and small molecules (no proteins)
describe the flow of ion and current through gap junctions
ion flow bidirectionally; current is rectifying (only flows on direction)
gap junctions can be excitatory or inhibitory
in the inferior olive, thalamus, and hippocampus, are either excitatory or inhibitory
what about in the cerebral cortex
1. excitatory
2. inhibitory
what are the key benefits to using gap junctions opposed to the chemical synapse
we get synchronozation of activity in a network of interconnected neurons
fast and synchronized
what is functional role of glial cells in membrane potentials
help to regulate extracellular potassium concentration
note: some epilepsies are due to breakdown in this regulation causing depolarizations
two major classes of chemical synapses
1. ionotropic (channel linked)- the channels and receptor are part of the same protein
2. metabotropic (G protein linked)- receptor is GPCR whose response opens nearby channels
4 variations of boutons terminoux
1. axodendritic
2. axoaxonic
3. axosomatic
4. dendrodendritic
explain boutons en passage
where is this commonly found
when we see several connections on a single postsynaptic cell
commonly found on autonomics of smooth muscle
light vs. dark core NT vesicles
light core
- small molecular NTs (epi and norepi)
-made in soma, but some may be recyclced in the axon terminal
dark core
-peptide (larger molecules)
-always made in soma and brought to the terminal via transport along the MTs
why are 80% of deaths due to diabetes actually the result of atherosclerosis
each of the 3 major problems with diabetes leads back to vascular problem
(vasoconstriction, atherosclerosis, hyperplasia blood vessel endothelial cells)
one advantage and disadvantage to using G linked metabotropic synapse systems
adv: amplification of singla within the cell
disad: too many pieces of puzzle can go wrong and energetically expensive
but the advantages must outweigh the disad because this is a common mechanism in the body
explain how axoaxonic synapses can be used to regulate the final outcome
the first axon synapses on the second axon to modulate whether the signal the second axon sends willl be excitatory or inhibitory
temporal vs spatial summation
when multiple signals are sent to the same neuron, they can combine spatial (as a function of distance to one another) or spatially (as a function of time in between separate signals)
give an example of how neuronal integration works
say you grab a mug of hot coffee and it begins to burn; brain says hold ont the mug, but withdrawal refelex may tell same neurons to let go
excitatory and inhibitory potentials combine in neuron of focus and summartion is detected at initial segment to determine AP or not
what is missing from axon terminal that may otherwise allow for APs to possibly jump the synaptic cleft
Na-channels (NOT IN THE AXON TERMINAL)
for each junction, indicate type of receptor
1. NMJ
2. Preganglionic AM
3. postganglionic parasympathetic
4. brain stem and basal forebrain
1. nicotinic (PNS)
2. nicotinic (PNS)
3. muscarinic (PNS)
4. muscarinic (CNS)
catecholamines are important NTs
outline the sequence of biosynthesis for both epi and serotonin
tyrosine->DOPA->dopamine->norepi->epi
tryptophan->sero
name the 2 AAs that often act as NTs
excitatory or inhibitory
1. glutamate
2. aspartate
both excitatory
most glutamate receptors are ionotropic. a special type of Glu channel is the NMDA channel; compare the conventional to the NMDA glutamate receptor
conventional receptors work as normal ionotropic receptor
NMDAs have a Mg2+ ion that block the channel. this means that you need a larger depolarization to activate this channel, but once activated it leads to lasting changes in the synapse
NMDAs may lead to
1. long term potentiation
2. excitotoxicity
explain each
LTPs are involved in learning and memories. the NMDA can be activated to cause LTPs to lead to long term changes in how the membrane responds to potential changes
excitotoxicity- this is when excitation occurs too much for too long causing damage or even killing the neuron
inhibitory NTs
GABA
glycine
reaction to get GABA
glutamate->(glutamic acid decarboxylase)->GABA
peptide NTs
substance P
endogenous opioids
gas NT
NO (nitric oxide)
five fates of NTs
1. interact with receptor
2. breakdown
3. re-uptake (back into cell from which it was secreted)
4. uptake (it's a different cell; usually glial)
5. diffusion-it simply diffuses out of synaptic cleft
what is the main task of the nervous system? where do nerve cells make this happen?
communication
synapses
how does the change in membrane potential activity proceed at that region
...
what are the types of synapses
electrical and chemical synapses
what is the structure of electrical synapses
opposed plasma membranes of cells in near contact
proteins acting like membrane spanning pores align in adjacent cells from multiple
6 connexins, forming a connexon
what passes through gap junction pores?
ions
small molecules
what direction can current go in?
bidirectional or rectifying (only allows in one direction and not the other
where are gap junctions found? where are they excitatory and inhibitory?
PNS and CNS
excitatory: inferior olive, thalamus, hippocampus
inhibitory: cerebral cortex
how do gap junctions communicate?
rapidly through no neurotransmitters, no synaptic delay; at most direct level, straightforward effects
where is activity of gap junctions synchronized?
in the network of interconnected neurons
what is the neuron doctrine
says the individual nerve cells comprise the nervous system instead of a syncitium
how do gap junctions help with glial cells
they are the functional link between glial cells
play a role in helping astrocytes regulate EC K because they are linked by gap junctions; epilepsy could be from this
they also play a role in intracellular transport within Schwann cells
how are Schwann cells linked in a useful function by gap junctions?
if something goes nucleus to membrane to get there, it would have to go around, but it can take shortcuts through membranes to get there quickly
what are some consequences of malfunctioning connexin proteins in Schwann cells?
CMT disease family
CMT X chromosome is gene, conduction of APs break down
probably most common cause of peripheral neuropathy
- high foot arch, paresthesis, arched foot, atrophy of muscle in legs, inverted champagne bottle leg
what is true about chemical synapses compared to electrical synapses
more common
seemingly better understood
why are chemical synapses considered "chemical"
involvement of chemical molecule to carry signal from one signal from one cell to next
what are the two major classes of chemical synapses
channel linked chemical synapses- ionotropic
G protein linked chemical synapses- metabotropic
what are some variations in chemical synapses (boutons terminaux)
axodendritic
axoaxonic
axosomatic
dendrodendritic
boutons en passage (multiple boutons on postsynaptic cell; when one works, they all exert effect)- typical of how postsynaptic autonomic cells synapse on smooth muscle cell
what is the basic sequence of function in a chemical synapse
AP in presyn neuron
depol of axon terminal
entrance of Ca ions into axon terminal
exocytosis of NT
diffusion of NT across synaptic cleft
binding of NT to receptor molecules of postsyn cell
initiates response in postsyn cell
-hyperpol: inhibitor
-depol: excitatory
removal of released NT
what triggers NT vesicles to dock with plasma membrane?
Ca entrance due to Ca channel opening due to depolaritzation of terminal
what docking proteins are on the presynaptic cell that help bring vesicles closer to synaptic cell
synapta bregmen and synapta tagin on vesicle
synaptataxon and synap 25 on synaptic cleft
what are light core NT vesicles containing?
small clear vesicles with small molecule NTs, ACh, GABA, glutamate, glycine
what are dense core vesicles containing?
amines
dopamine
epi
norepi
serotonin
what are in larger dense core vesicles?
peptide NTs
endogenous opiates
beta endorphin
enkephalins
neuropeptide Y
can be found many places because made many places
what is the general orientation of a G protein receptor complex?
NT in ECF in synaptic cleft
receptor on membrane
G protein with alpha, beta, gamma subunits with GDP on alpha
adenylate cyclase in membrane
what happens when receptor binds NT?
Galpha switches GDP for GTP and it goes to activate adenylate cyclase, which produces cAMP and can amplify response
why are chemicals needed at cehmical synapses?
ions will not be able to cross synaptic cleft
where is ACh present in the body? what types of receptors are at each point?
ACh, present in PNS at NMJ (nicotinic), pregang autonomic motor receptors (nicotinic), postgang parasym receptors (muscarinic)
in CNS: brain stem and basal forebrain receptors (muscarinic)
what are catecholamines derived from?
epi and norepi from tyrosine
serotonin from tryptophan
enzyme: dopa decarboxylase takes DOPA dihydroxyphenylalanine to dopamine
what are some AAs that are NTs
glutamate and Asp
what types of channels are normally there for glutamate?
channel linked with receptor site and ion channel that works fast as an excitatory NT; if it goes, it lets Na into cells and cells depolarize
but there
what is the special type of glutamate receptors?
NMDA receptor with a narrow throat with Mg lodged in it; if a glutamate does bind, it still does not allow things in because of Mg; if there is a big depolarization with the normal glutamate receptors, then the NMDA receptors change and they allow Ca ions through which changes cells in a way that a regular glutamate channel depolarization does not
what is long term potentiation
excitation of this cell when Ca comes in can last a longer time than when just regular glutamate cells come open
downside of these is excitotoxicty: when Ca ions come in it is risky because high Ca levels are bad, cells can go through self induced suicide and they can be excited to death
how is GABA produced?
from glutamate, which via glutamic acid decarboxylase becomes GABA (gamma amino butyric acid)
are GABA and glycine usually involved in inhibition or excitation
inhibition
what are some peptide hormones?
substance P
endogenous opioids
what is the function of NO as a neurotransmitter?
dilation of BVs
what are the fates of neurotransmitters?
inactvation
reuptake
uptake
diffusion
interaction of NT and receptors
what are the two types of changes in membrane potential of postsynaptic cells? where do these affect the cell? how can these types of things be modulated?
excitatory postsynaptic potential (EPSP)
inhibitory postsynaptic potential (IPSP)
affect at initial segment on the axon
axoaxonic or axodendritic or axosomatic summation
why are the membarne potentials at the initial segment important?
this is where VG Na channels are most concentrated
what that we did in class is a good example of neuronal integration
motor centers in brain have inhibitory synaptic input from descending spinal tract and sensory input from the hand has a withdrawal reflex on muscle, these combine and you can override the reflex for a while
what portion of the neural tube does the spinal cord develop from?
caudal portion of neural tube
what parts of spinal cord give rise to sensory and motor regions, respectively
alar plate to sensory
basal plate to motor
where are the nerves located in cervical spine C1-C7? T1 and below?
C1-C7 above corresponding vertebral bone
T1 and below all below corresponding vertebral bone
where are the spinal cord enlargements?
cervical enlargement is C5-T1
lumbosacral enlargement is L2-S3
what is the progression of location of conus medullaris in the developing spinal cord? why?
first it is present at the coccygeal vertebral level
next it is present at S3
at birth it is present at L2-L3
a few months after birth it is present at about L1-L2
bones grow at a faster rate than the spinal column, so they take spinal nerves with it

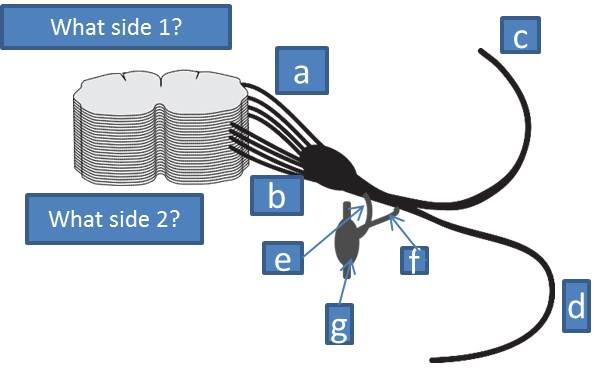

side 1: posterior
side 2: anterior
a. dorsal root
b. ventral root
c. dorsal ramus
d. ventral ramus
e. gray rami communicantes
f. white rami communicantes
g. sympathetic ganglia
what cord segment innervates the upper arm?
C5
what cord segment innervates the thumb and lateral forearm
C6
what cord segment innervates the middle finger
C7
what cord segment innervates the little finger
C8
what cord segment innervates the nipple
T4
what cord segment innervates the umbilicus
T10
what cord segment innervates the big toe
L5
what cord segment innervates the heel
S1
what cord segment innervates the back of the thigh
S2

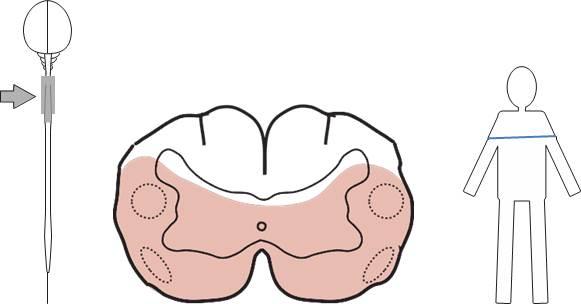

what spinal cord level is this
thoracic

what spinal cord level is this
lumbar

what spinal cord level is this
cervical

what spinal cord level is this
sacral

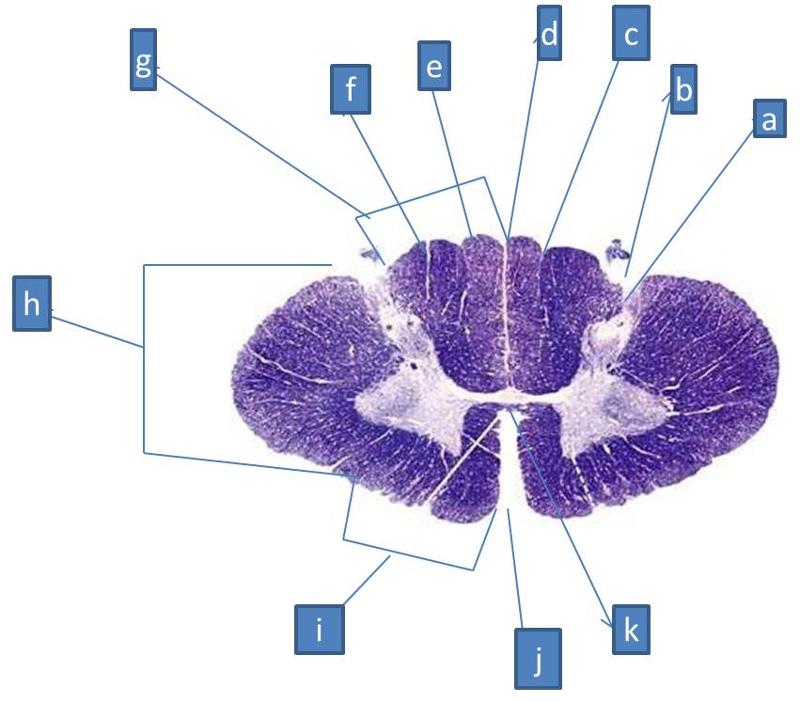

a-d
a. Lissauer's tract
b. posterolateral sulcus
c. posterior intermediate sulcus
d. posterior median sulcus

e-h
e. gracile fasciculus
f. cuneat fasciculus
g. dorsal funiculus
h. lateral funiculus

i-k
i. ventral funiculus
j. anterior median fissure
k. anterior white commissure
where do dorsal and dorsal root ganglion neurons come in and synapse on the dorsal horn? at the respective level, above, or below?
can be any of the three, travel elsewhere in Lissauer's tract
thin diameter axons more likely to go up or down

a-e
a. cuneate fasciculus
b. gracile fasciculus
c. lateral corticospinal tract
d. dorsal spinocerebellar tracts
e. ventral spinocerebellar tracts
f. anterolateral system

a. substantia gelatinosa
b. nucleus propria
c. Clarke's nucleus
d. dorsal horn
e. lateral horn
f. intermediate gray horn
g. ventral horn
parasympathetic nucleus is only in the cervical and sacral
what is Rexed lamina IX
always at anterior horn, lower motor/alpha motor neurons that innervate muscle cells
what are the most important tracts within the spinal cord?
Dorsal Column Pathway
anterolateral system
corticospinal tract
dorsal spinocerebellar tract also considered
what types of axons are involved in the dorsal column pathway?
Ia, Ib, II
large diamater heavily myelinated sensory afferent axons
what is somatotopic organization
organization that reflects that of the body

a. what levels of the spinal cord run in a and which ones are on which side
b. what levels of the spinal cord run in b and which are on which side
c. what is c
d. where are we in the spinal cord
a. S5-T6
b. T5-C1
c. substantia gelatinosa
d. above T5

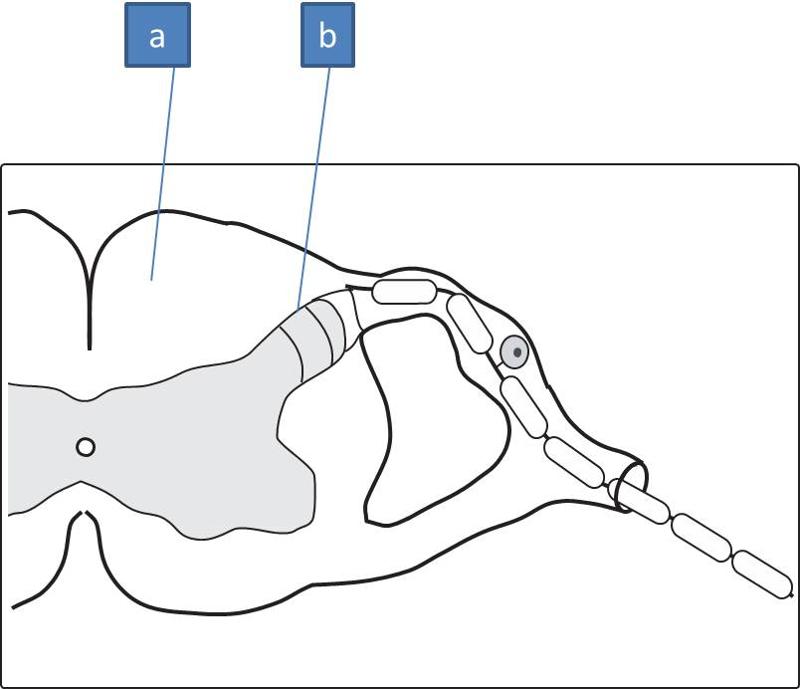

a. what levels of the spinal cord terminate here
b. what is this
a. S5-T6, running outward
b. substantia gelatinosa
Dorsal column pathway
- ascending/descending?
- location of tract?
- origin of tract?
- termination of tract?
- "laterality"?
-"somatotopicity"?
ascending pathway
located in dorsal funiculus
origin: primary and sensory afferent neurons with cell bodies in dorsal root ganglion
terminate in dorsal column nuclei
ipsilateral organization
somatotopic organization within the tract with the lower body control being more medial and the upper body control being more lateral

a. what is this
b. what is this
c. what is this
d. what is this
e. what is this
a. gracile nucleus
b. cuneate fasciculus
c. gracile fasciculus
d. gracile fasciculus

e. what is this f. what is this
g. what spinal cord level is this
h. what spinal cord level is this
i. what spinal cord level is this
e. cuneate fasciculus f. cuneate nucleus
g. cervical
h. thoracic (lateral horn) below T6
i. sacral/lumbar
what is the functional role of the DCP?
carry proprioceptive
fine touch and vibration sense
pallesthesia: vibration
Anterolateral system
- ascending/descending?
- location of tract?
- origin of tract?
- termination of tract?
- "laterality"?
-"somatotopicity"?
ascending
location is in ventral-lateral funiculus
originates in substantia gelatinosa and nucleus proprius
terminates in thalamus
contralateral
lower body is more dorsal and lateral while upper body is more ventral and medial
what is another name for the anterolateral system
spinothalamic tracts
what is the functional role of the anterolateral system?
pain, temperature, crude touch
what types of axons are in the anterolateral system?
Adelta and C

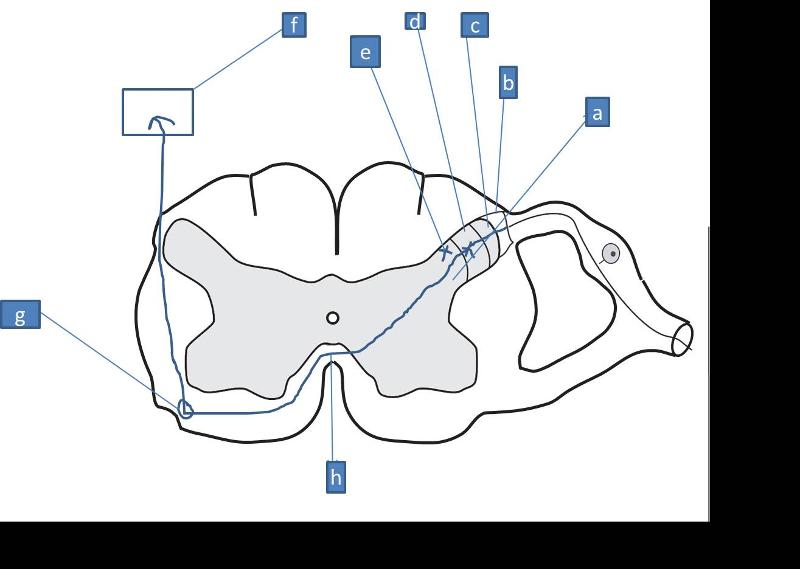

label
what does e represent?
where in g would arm innervations lie?
a. nucleus proprius
b. Lissauer's tract
c. substantia gelatinosa
d. still substantia gelatinosa
e. lissauer's tract can synapse either in substantia gelatinosa or nucleus proprius
f. thalamus
g. anterolateral system
h. anterior white commissure
more ventral and medial
legs more dorsal and lateral

a. cerebral cortex
b. motor decussation
c. no difference between arm and leg
d. no difference between arm and leg
ARM MORE MEDIAL, LEG MORE LATERAL
Lateral Corticospinal Tract
Dorsal column pathway
- ascending/descending?
- location of tract?
- origin of tract?
- termination of tract?
- "laterality"?
-"somatotopicity"?
descending pathway
origin in pyramidal cells in cerebral cortex
termination: spinal cord gray matter
contralateral: R side cortex controls L side
somatotropic: to upper body is more medial, lower body more lateral
what is the function of the lateral corticospinal tract
1. carry motor instructions down to spinal cord
2. modulate sensory processing in cord- can tone down reflex

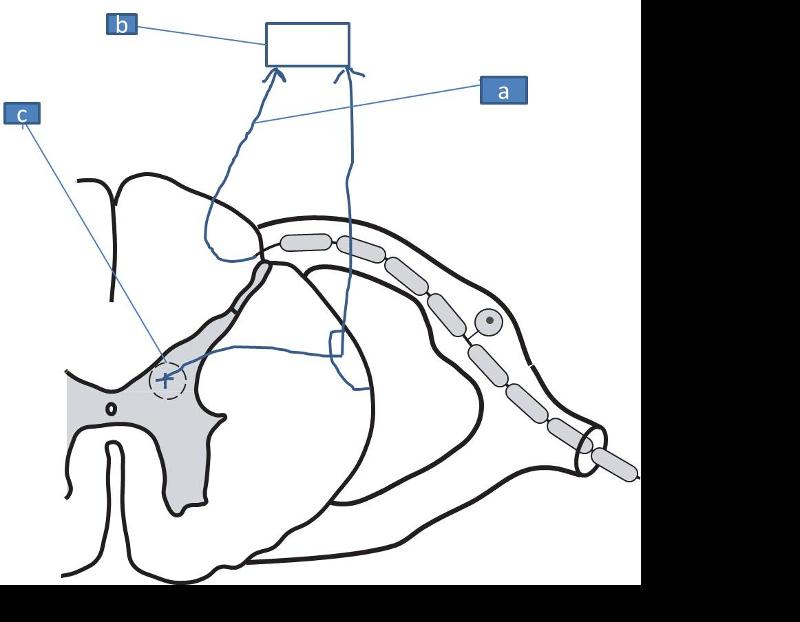

a. how does a get to go straight up?
b. what is this
c. what is this
a. due to inferior cerebellar peduncle
b. cerebellum
c. Clarke's nucleus
Posterior Spinocerebellar Tract
- ascending/descending?
- location of tract?
- origin of tract?
- termination of tract?
- "laterality"?
-"somatotopicity"?
ascending
in margin of lateral funiculus (posterior part)
origin: cells of Clarke's nucleus
terminate in cerebellum
ipsilateral
what is the functional role of the posterior spinocerebellar tract?
convey proprioception from the lower body
what type of axons run in the posterior spinocerebellar tract?
Ia, Ib, II
large diameter, heavily myelinated sensory afferent axons

what is affected in the depiction? what is depicted?
anterior cord syndrome (at cervical cord)
fine touch, proprioception, vibration sense
- not affected because the dorsal columns are not affected by the anterior spinal artery
pain and temperature
- bilateral at and below level of lesion, clinically it is one or two levels below
motor
- flaccid paralysis at the level
- spastic paralysis at lower levels

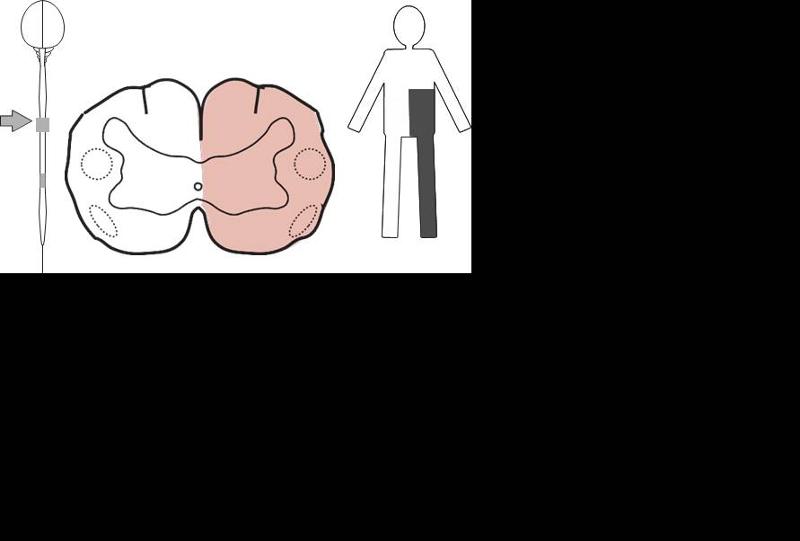

what is affected in the depiction? what is depicted?
Brown Sequard Syndrome (at any level)
fine touch, proprioception, vibtration sense
- same side lost
pain and temperature
- opposite side loss
motor
- flaccid at level, same side
- spastic at levels below, same side

what is affected in the depiction? what is depicted?
syringomyelia/syringomyeliac syndrome (cervical cord takes place more than others)
fine touch, proprioception, vibration sense
- no effect
pain temperature
- cavitation at anterior white commissure
- loss only at level of injury
motor
- maybe some flaccidity but paresis (weakness) first and possible paralysis later if lesion works itself over

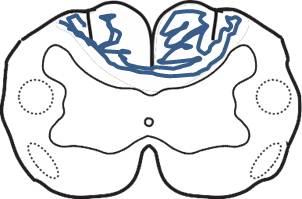

what is the depicted ailment? what can cause this? what are the manifestations of this type of lesion?
tabes dorsalis
tertiary syphillis
loss of fine touch, vibration sense, proprioception, which can be shown through a positive Romberg test (swaying) because together with visual and vestibular input coordinates balance

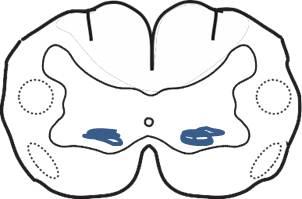

what is the depicted ailment? what can cause this? what are the manifestations of this type of lesion?
polio
viral infection of poliovirus
loss of alpha motor neurons at the particular level, which leads to either paresis or flaccid paralysis with time

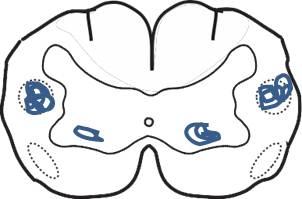

what is the depicted ailment? what can cause this? what are the manifestations of this type of lesion?
ALS
combination of flaccidity or spasticity depending on whether upper MNs or lower MNs are affected; if you lose lower motor neurons, you have a more immediate problem

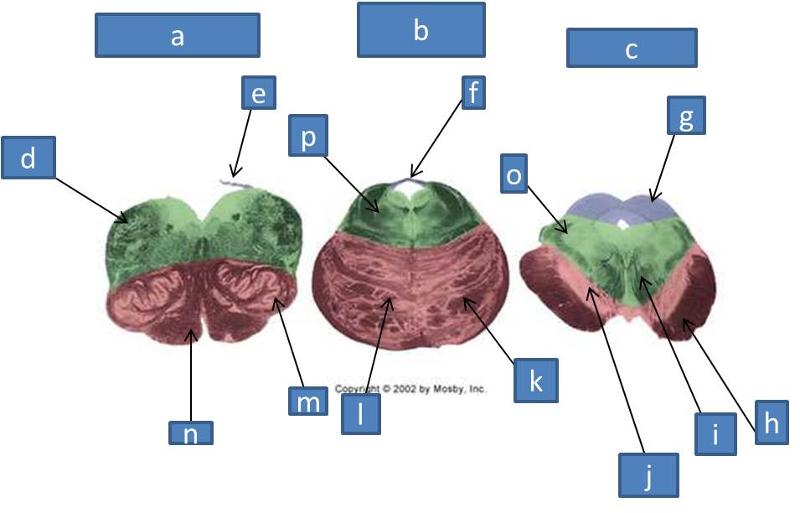

a. medulla
b. pons
c. midbrain
d. tegmentum
e. tectum
f. tectum
g. tectum
h. cerebral peduncles (crus cerebri) that contain pyramidal tract axons and corticospinal axons
i. red nuclei
j. substantia nigra
k. corticospinal and corticobulbar axons
l. pontine nuclei
m. inferior olive (inferior olivary nucleus)
n. pyramids (pyramidal tract axons), corticospinal axons
o. tegmentum
p. tegmentum

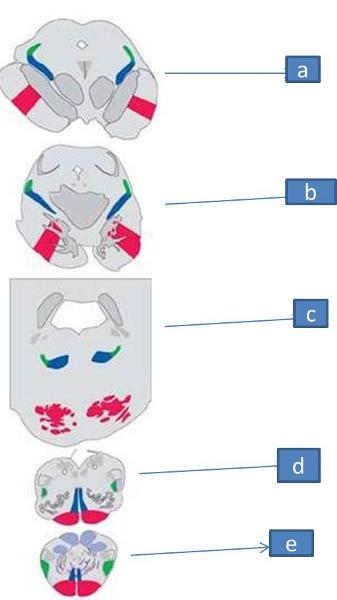

what is each layer?
a. upper midbrain
b. lower midbrain
c. pons
d. high medulla
e. low medulla

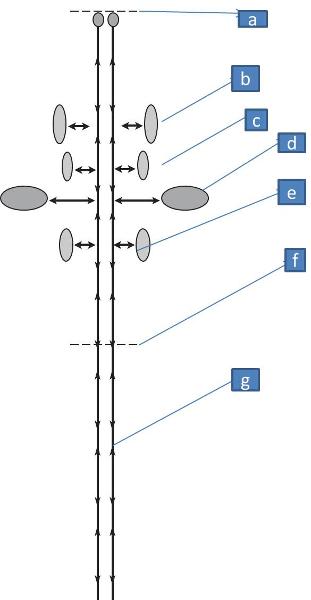

what are the labeled areas?
what is this tract useful for? what do all these things do?
a. diencephalon
b. CN III
c. CN IV
d. vestibular nuclei
e. CN VI
f. spinal cord
g. MLF
axons can drop in, go with spinal cord, and get off the track at a particular place
they can also cross the midline
these things communicate across the MLF to make eye movements compensate for head movements
what do CN III, CN IV, and CN VI have in common?
they help innervate the movement of the eye
what do the vestibular nuclei do?
receive information from vestibular apparatus about head movements
what happens when we turn our head
every time we move our head, we make eye movements that compensate for head movement, and eyes will move in the opposite direction of the turn to help stabilize the visual world
if MLF breaks for some reason, what happens to our eyes when we move our head
coordination breaks down like in MS
what is nystagmus
when you see repeated movements in the eye but then they flip back really fast to the direction you move, slowly move usually then flip when their eyes cant move the right way any more
always named for the direction of fast eye movement
can be pathological

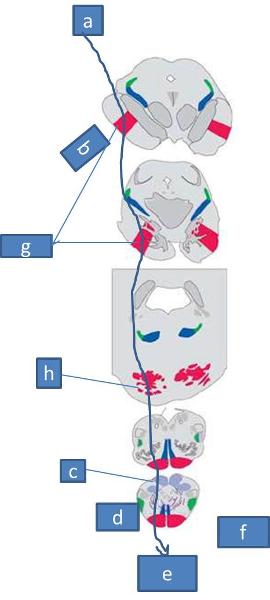

what pathway is this?
a. what is this
b. what is the somatotopic organization here
c. what is this
d. what is the somatotopic organization here and WHAT is the pink area
e. what is this
f. what is here
g. what is this
h. what is this
Lateral Corticospinal tract
a. cerebral cortex
b. LTA lateral to medial
c. dorsal column nuclei
d. LTA lateral to medial and it is the pyramid
e. spinal cord
f. motor decussation
g. cerebral peduncles
h. pontine nucleus

what tract is this
a. what is this
b. what is the somatotopic organization here
c. what is the somatotopic organization here
d. what is the somatotopid organization here
e. what does this path's axons originate from
medial lemniscus
a. thalamus
b. ATL medial to lateral
c. ATL medial to lateral
d. ATL posterior to anterior
e. dorsal column nuclei

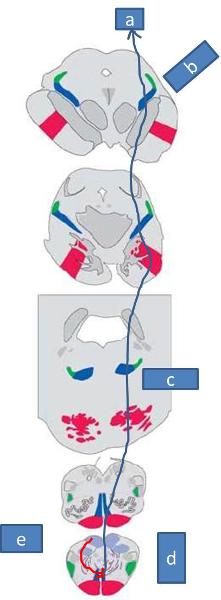

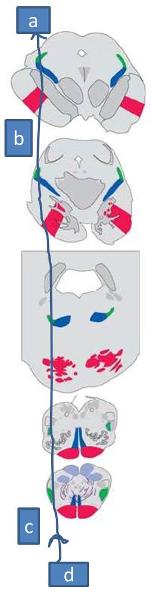

what tract is this
a. what is this
b. what is the somatotopic organization
c. what is the somatotopic organization
d. what is this
Anterolateral system
a. thalamus
b. LA post to ant
c. LA post to ant
d. spinal cord
where is the reticular formation located on the brainstem?
nondescript part of center of brainsteam
what are the three regions of the reticular formation
lateral (mostly in medulla)
medial
raphe (gets most mention, in midline)
what do control centers in the brainstem have control over? where are they?
breathing, swallowing, cardiovascular control, coughing, gagging, vomiting
in or around reticular formation
where is the brainstem in reference to the forebrain and spinal cord?
a place that takes input from spinal cord and forebrain and also passes through the brainstem and the bulk of a cranial nerves run out of brainstem and thus relay response
what is ascending reticular actvation's role
send projections ramified throughout the forebrain and correlate arousal or excitement; they set this level
some brainstem neurons are extensive in their projections
what are the monoamine systems of the reticular formation?
norepinephrine
dopamine
serotonin
what are two important regions in the norepinephrine monoamine systems?
famous in having cell bodies in one spot: locus ceruleus (blue spot, more important) and lateral reticular nuclei (near medulla)
where is locus ceruleus
below and lateral to ventricles
why is the norepinephrine monoamine system important?
sets wakefulness, elevates level of attention to fit current situation
what are the dopamine monoamine systems? where are they located?
substantia nigra (pars compacta is the important part of SN to remember) and ventral tegmental area
midbrain

what is depicted in dark areas?
locus ceruleus
where is substantia nigra located? ventral tegmental area?
just deep to cerebral peduncles in midbrain
VTA is ventral to that
what are the dopamine monoamine systems important?
parkinson's and motor problems
mostly movement, cognition, and pleasure related
what is important with mesolimbic or mesocortical systems?
discussing projections from ventral tegmental area using dopamine to limbic areas in cerebral hemispheres or just cerebral hemispheres altogether
where is the raphe? what type of monoamine system does it hold and use in its neurons
midline of brainstem reticular formation
serotonin
what does the serotonin monoamine system control?
general level of arousal (morning vs. evening) not moment to moment
part of pain control pathway in nervous system (makes life more bearable), also called descending pain control pathway
where is the cholinergic monoamine system?
basal forebrain, basal ganglia
where do the vertebral arteries supply the brain?
most of medulla except posterior lateral section
where does the basilar artery supply in the brain?
most of pons
anterior medial midbrain
what does the posterior cerebral artery supply in the brain?
much of midbrain, except anterior medial part
