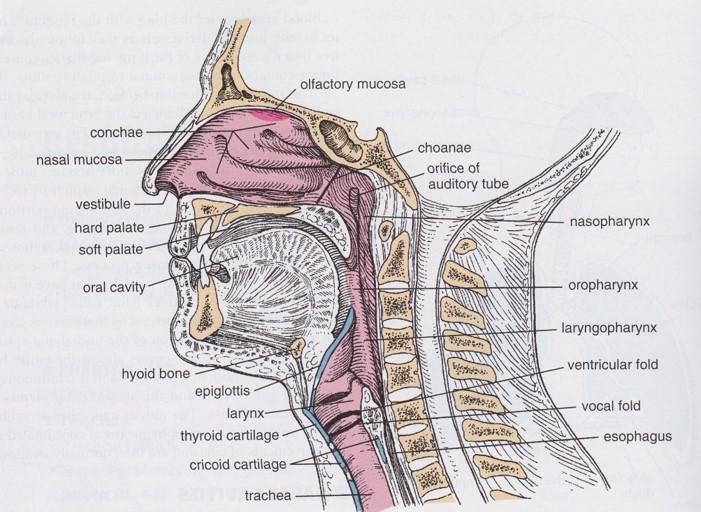

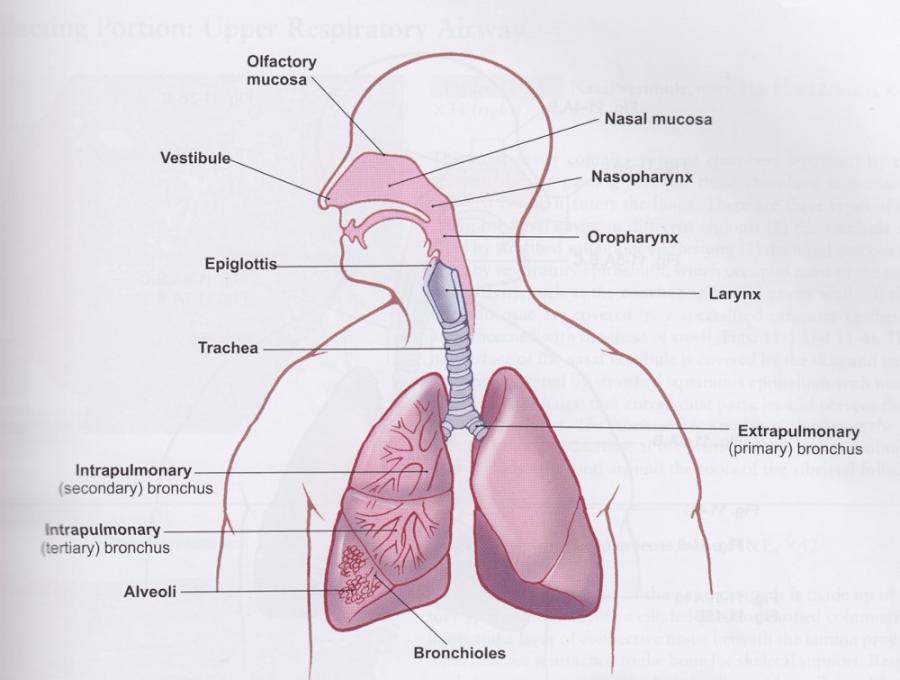

Respiratory System

card image

Respiratory System

card image

Lungs and air passages


  • Air conduction
  • Air filtration and conditioning
  • Gas exchange (external respiration)
  • Speech (larynx)
  • Smell (nasal cavity)

Conducting Portion of Respiratory System

  • Nasal cavities, pharynx, larynx, trachea, bronchi, and large bronchioles
  • Lined with pseudostratified ciliated columnar epithelium with numerous mucus-secreting goblet cells
  • As passage branches, tubes become smaller (diameter) and height of epithelium decreases (width of blue)

Respiratory Portion of Respiratory System

  • Where external respiration occurs
  • Respiratory bronchioles, alveolar ducts, alveolar sacs, and alveoli
  • Respiratory bronchioles are transition between conducting and respiratory portions of respiratory system
  • Alveoli are lined with a thin simple squamous epithelium (no goblet cells)
card image

Nasal Cavity

card image

Paired chambers separated by septum of cartilage and bone

Pseudostratified columnar epithelium lines most of nasal cavity (similar to rest of respiratory tract)

  • Lamina propria attached to seputm

Stiff hairs (vibrissae) trap large particulate matter in anterior portion of cavity


Pseudostratified Columnar Epithelium (Respiratory Epithelium) Cell Types

card image
  • Ciliated cells: tall with cilia projecting into mucus that covers surface of the epithelium

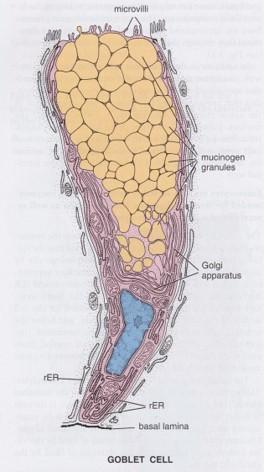

  • Goblet cells: synthesize and secrete mucus
  • Basal cells: stem cells for other cell types
card image

Olfactory Epithelium

card image

Part of dome (roof) of each nasal cavity

Lined with olfactory mucosa

  • Olfactory epithelium (pseudostratified columnar, but no goblet cells)
  • Olfactory (Bowman’s) glands

Lamina propria: blood and lymphatic vessels, unmyelinated olfactory nerves, myelinated nerves, and olfactory glands

card image

Respiratory and olfactory epithelium of nasal cavity

card image

Olfactory epithelium is much larger in rodents vs. humans.

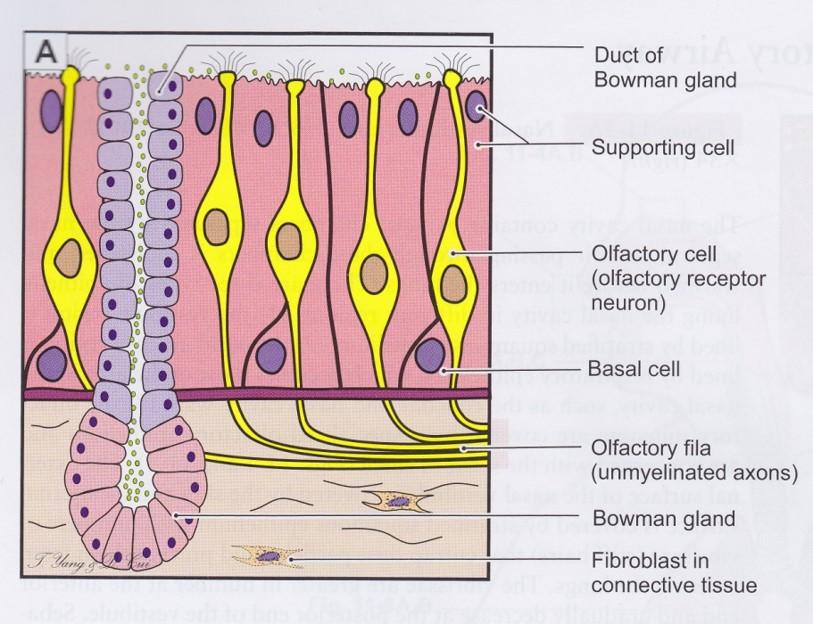

Olfactory Epithelium Cell Types

card image
  • Olfactory cells/bipolar neurons (sensory cells): cilia on apical dendrite where odors bind; quickly replaced
  • Supporting/sustentacular cells: columnar with microvilli, provide mechanical and metabolic support for olfactory cells
  • Basal cells: stem cells

Olfactory Glands (Bowman’s Glands)

Within mucosa

Branched, tubuloalveolar serous glands

Secretion traps and acts as a solvent for odor molecules

  • Thinner than mucus secreted by goblet cells throughout the rest of the nasal cavity
card image

Olfactory Epithelium

card image


card image
  • Passageway for air between pharynx and trachea
  • Irregularly shaped plates of hyaline and elastic cartilage
  • Vocal folds (cords): two folds of mucosa that project into lumen (speech)
  • Luminal surface of vocal folds and epiglottis covered with stratified squamous epithelium
  • Rest of larynx covered with ciliated pseudostratified columnar epithelium
  • CT contains mixed mucus/serous glands
card image


card image
  • Short, flexible tube from larynx to mid thorax (divides into main bronchi)
  • Lumen remains open due to cartilaginous rings
  • Runs parallel to esophagus

Trachea: Wall Layers

card image


  • Ciliated, pseudostratified columnar epithelium in elastic fiber-rich lamina propria
  • Goblet cells and mucosal folds


  • Slightly denser CT (but still classified as loose) than in lamina propria
  • Seromucus tracheal glands

Cartilaginous layer

  • C-shaped hyaline cartilage (holds tube open)


  • CT that binds trachea to adjacent structures

Wall Layers

card image



3.Cartilaginous Layer




card image
  • Trachea divides into 2 main/primary bronchi
  • Before entrance to lungs, bronchi are same histologically as trachea
  • In lungs, cartilage rings replaced by irregular plates that decrease in size with branching of bronchi and they have a circumferential layer of smooth muscle

Bronchus wall layers

card image


  • Pseudostratified epithelium with lamina propria


  • Continuous layer of smooth muscle in larger bronchi; attenuated and loose in smaller bronchi


  • Loose CT, glands in larger bronchi, and adipose tissue in larger bronchi

Cartilage layer

  • Discontinuous cartilage plates


  • Dense CT

Respiratory Portion: Gas Exchange

card image


  • Terminal bronchiole
  • Respiratory bronchiole

Alveolar ducts

Alveolar sacs



Majority of lung tissue:

card image

Majority of lung tissue volume is dedicated to alveoli for maximum gas exchange. Cross-sections of blood vessels and airways (bronchus and bronchioles) are also visible. Lymphatic nodules are sporadically placed within the lung tissue.

card image

Bronchiolar structure

card image

≤1 mm diameter

Larger bronchioles have ciliated, pseudostratified columnar epithelium which transforms into simple ciliated, columnar epithelium

  • No goblet cells in terminal bronchioles
  • No glands or cartilage plates
  • Thick layer of smooth muscle

Small bronchioles

  • Simple cuboidal epithelium
  • Smooth muscle
  • Thin CT
  • Clara non-ciliated cells (club cells): secrete surfactant to hold lumen open

Surfactant: product of clara/club cells

  • Decreases surface tension of alveoli
  • Clears foreign materials
  • Modulates immune responses
card image

Terminal bronchiole with mucosal folds

card image


card image
  • Alveolar ducts: elongated airways with only alveoli as peripheral boundary
  • Alveolar sacs: spaces surrounded by clusters of alveoli
  • Alveoli are surrounded by thin CT layer that has capillaries (alveolar septum or septal wall)

Respiratory bronchiole, alveolar duct, and alveoli

card image

Small Bronchiole vs. Artery

card image


  • Clear lumen
  • Prominent mucosa folds (epithelium + lamina propria)
  • Pseudostratified ciliated columnar epithelium
  • Thin layer of smooth muscle


  • Erythrocytes in lumen
  • Simple squamous epithelium
  • Thick layer of smooth muscle


card image
  • Increase surface area for gas exchange
  • Site of exchange between air and blood
  • Each alveolus is surrounded by network of capillaries
  • Alveoli attach to alveolar sac

Alveolar epithelium

card image

Type I cells (pneumocytes)

  • Thin, squamous cells (gas exchange)
  • Line 95% alveolar surface
  • Joined by occluding junctions (barrier)
  • No cell division

Type II cells (pneumocytes)

  • Secretory cells, dispersed among type I cells
  • Cuboidal
  • Congregate at septal junctions
  • Secrete lamellar bodies (surfactant)
  • Stem cells

Alveolar macrophages (dust cells)

  • Scavenge air spaces to remove inhaled particulates, microorganisms, and red blood cells


card image


card image

Emphysema: disease caused from destruction of walls of alveoli

  • Alveoli enlarged sacs
  • Decreased elasticity of lungs—less able to recoil during expiration

Dust cells produce enzyme that destroys elastic fibers—normal lungs protected by endogenous inhibitor

  • Inhibitor destroyed by cigarette smoke and other substances

Panacinar emphysema (image): uniform damage to respiratory bronchiole, alveolar ducts, alveolar sacs, and alveoli

  • Alveolar septa almost entirely destroyed
  • Lung has lacy appearance (“cotton candy lung”)


card image

Potentially lethal infection of alveoli and connective tissue of lungs

20-35% of those infected succumb to disease

  • Immunocompromised and those with chronic illnesses most succeptible

Numerous types based on pathogen: bacterial, viral, fungal

  • Inhaled or introduced in blood to lungs

Symptoms: productive coughs, fever, shollow breathing, rasping sounds, white foci on lung x-rays

Increased leukocytes and fluid within infected lungs


summary table of respiratory system

card image

Digestive System I

card image

The digestive system (Chapters 13-15)

card image

Components of digestive tract

  • Oral cavity (13)
  • Esophagus (14)
  • Stomach (14)
  • Small intestine (14)
  • Large intestine (14)
  • Rectum (14)
  • Anal canal (14)

Accessory Organs

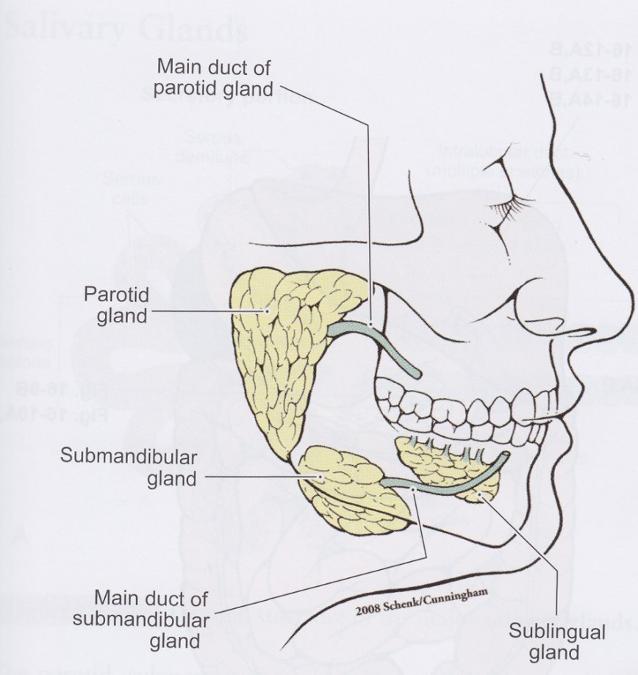

  • Salivary glands (15)
  • Liver (15)
  • Gallbladder (15)
  • Pancreas (15)

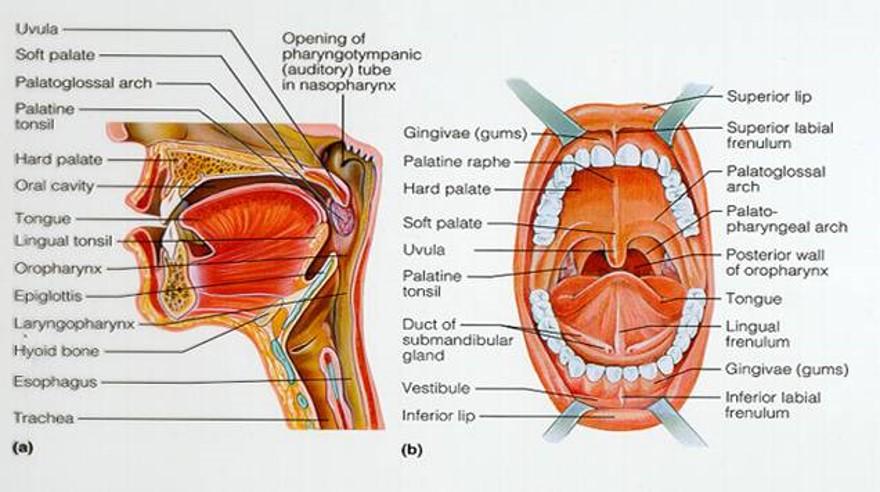

Oral cavity

card image

First site of food entry to digestive tract

  • Ingestion
  • Mastication (chewing)
  • Lubrication with saliva (tasting, swallowing)

Lined with non-keratinized stratified squamous epithelium & connective tissue (lamina propria)

  • Protection
  • Called mucosa
card image


card image

Inner lining identical to rest of oral cavity (non-keratinized stratified squamous epithelium)

  • Labial mucus glands (moisten inside of lips)

Outer lining is very thin skin

  • Keratinized stratified squamous epithelium
  • Skin derivatives (hair, glands, etc.)

Orbicularis oris (skeletal muscle)

  • Movement of lips
card image


card image

Skeletal muscle arranged in bundles running in 4 planes

  • Flexibility and precision of movement

Adipose tissue and dense irregular CT among muscle fiber groups

Mucosa: epithelium and underlying CT called lamina propria

card image

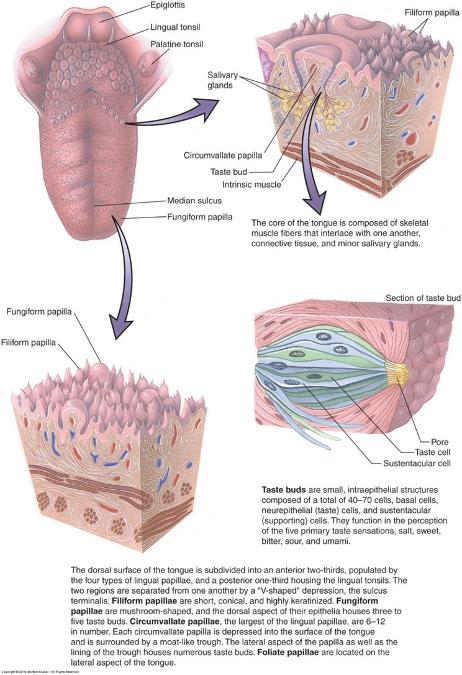

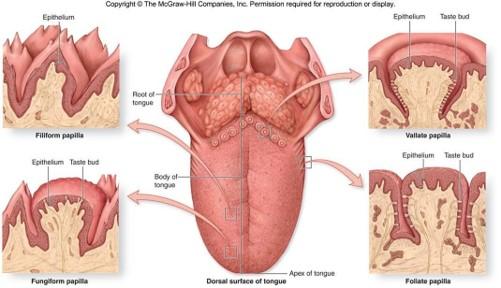

Papillae of tongue mucosa

card image

Dorsal surface of tongue is rough due to projections called papillae (ventral surface is smooth—no papillae)

  • Filiform (no taste buds)
  • Fungiform (taste buds)
  • Circumvallate (taste buds)
  • Foliate (taste buds)

All papillae covered with partially keratinized stratified squamous epithelium with underlying lamina propria


Filiform papillae

card image
  • Smallest
  • Most numerous
  • Narrow, conical, elongated projections of CT
  • Cover entire dorsal surface of tongue
  • No taste buds

Fungiform papillae

card image
  • Mushroom-shaped projections larger than filiform
  • More numerous at the tip of the tongue
  • Core of lamina propria CT
  • Taste buds at dorsal surface of papillae within the stratified squamous epithelium

Fungiform papillae zoomed in

card image
card image

Circumvallate papillae

card image
  • Largest papillae
  • Dome-shaped structures that reside toward rear of tongue
  • 8-12 papillae per tongue
  • Each surrounded by moat-like invagination (furrow) lined with stratified squamous epithelium
  • Numerous taste buds in furrow
  • Ducts of von Ebner’s serous glands empty into furrow

Foliate papillae

card image
  • Well developed in rodents
  • Poorly developed in humans
  • Parallel low ridges on lateral edge of tongue separated by deep mucosal clefts
  • Numerous taste buds in clefts and furrows
card image

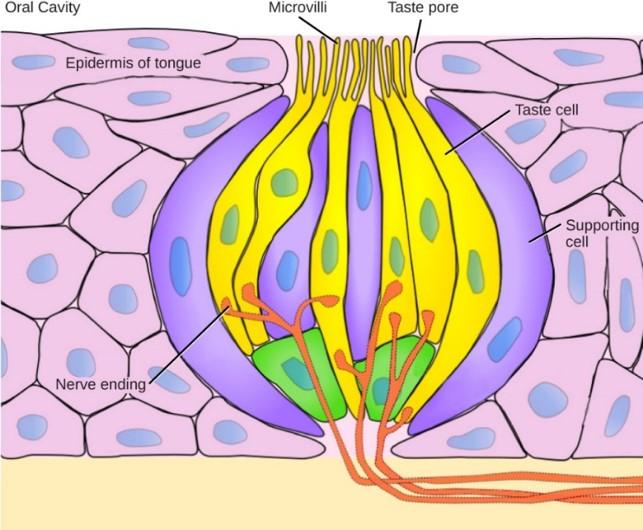

Taste buds

card image
  • Barrel-shaped structures in dorsal epithelium of foliate and fungiform papillae and lateral epithelium of circumvallate papillae, soft palate, pharynx, and epiglottis
  • Taste pore at free surface allows chemicals dissolved in saliva access to cells in taste bud
  • Taste buds span entire thickness of stratified squamous epithelium

Taste bud cell types

card image

Neuroepithelial taste cells (sensory receptor)

  • Most numerous
  • Elongated with microvilli at apical surface with taste receptors
  • Cell junctions near apical surface
  • Synapse with sensory afferent neurons
  • Turnover every 10 days

Sustentacular cells (support)

  • Less numerous
  • Elongated, microvilli
  • No synapse
  • Turnover every 10 days

Basal cells

  • Basal portion of taste bud
  • Stem cell


card image

Aggregates of diffuse lymphoid tissue and lymphatic nodules located in oral pharynx and tongue

  • Palatine tonsils (“the tonsils”)
  • Pharyngeal tonsil (“adenoid”)
  • Lingual tonsils

Palatine tonsils

card image
  • Located on lateral walls of oral pharynx
  • Lined with non-keratinized stratified squamous epithelium, like oral cavity mucosa
  • Connective tissue capsule separates the tonsils from underlying tissue
  • Contain numerous tonsilar crypts lined with lymphatic nodules

Palatine tonsil

card image

Pharyngeal tonsil

card image

Single structure in superior, posterior pharynx

Covered with pseudostratified ciliated columnar epithelium

  • Rests on fewer lymphatic nodules compared to palatine tonsils

Lingual tonsils

card image
  • Located on dorsal surface of posterior third of tongue
  • Several masses of lymphoid aggregations
  • Lined with non-keratinized stratified squamous epithelium
  • Numerous tonsilar crypts with muscosal ridges lined with lymphatic nodules

summary of the Oral Mucosa

card image
card image

Digestive System II

card image

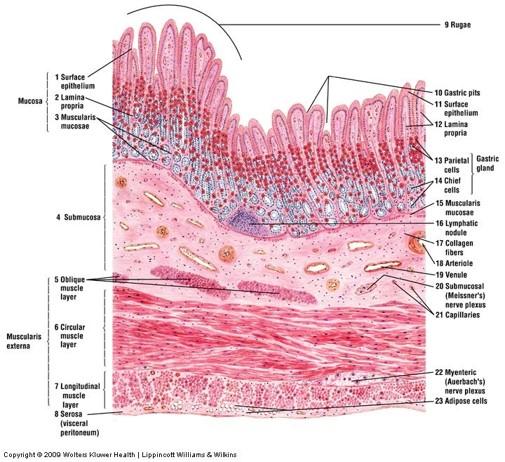

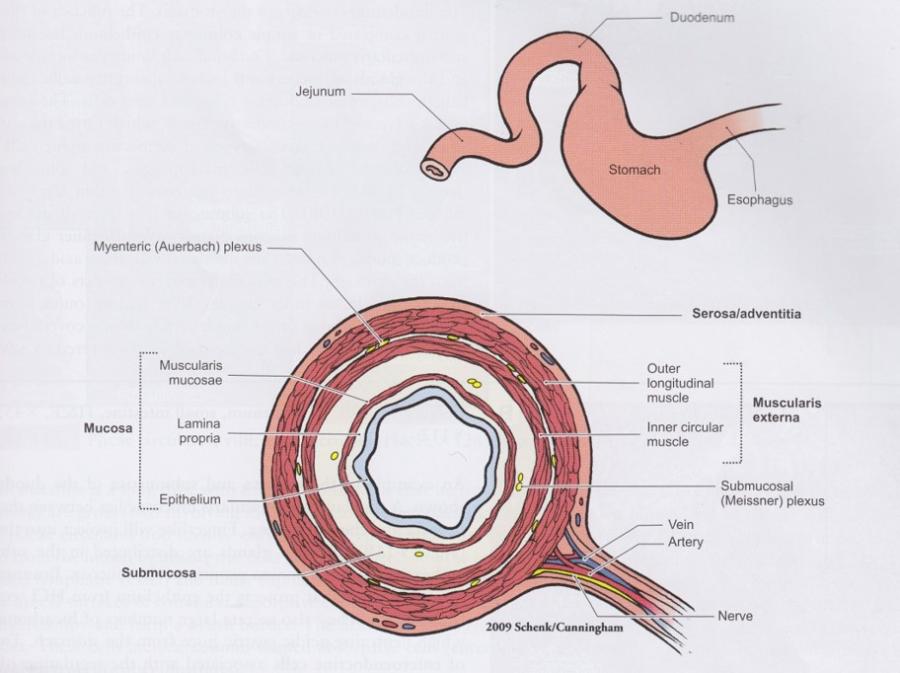

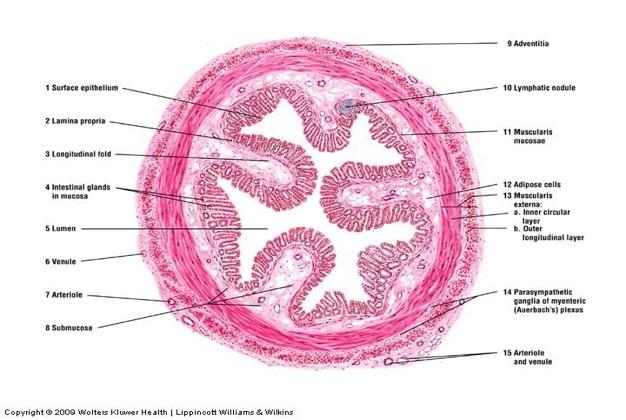

Layers of the digestive tract wall

card image
card image

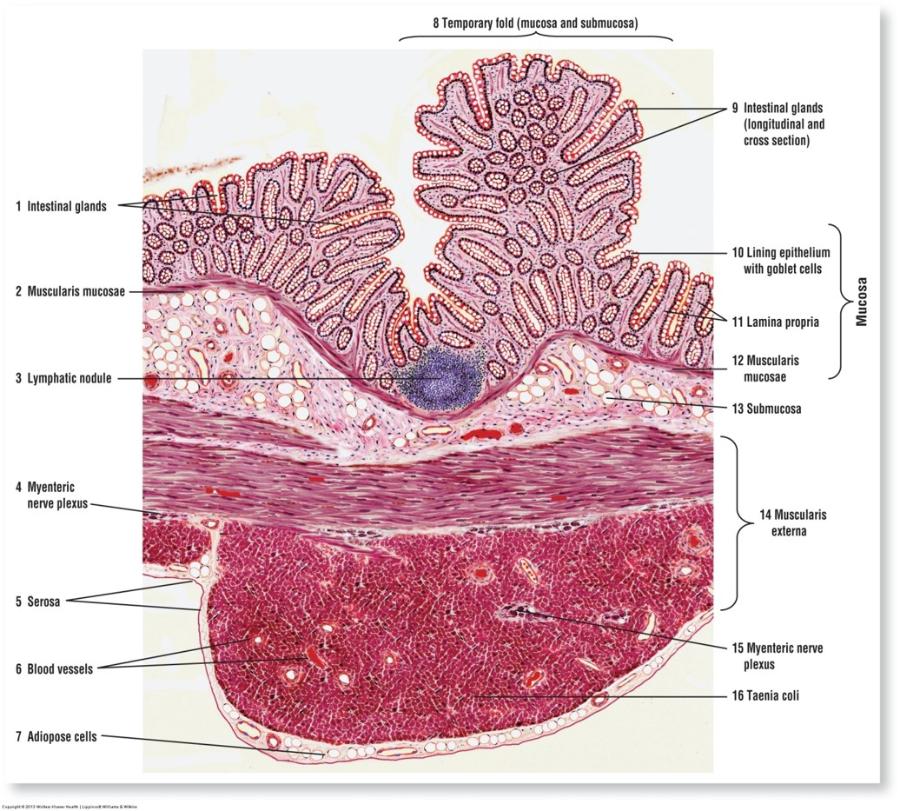

Layers of the digestive tract wall—general plan

card image

1.Mucosa: lining epithelium, underlying loose CT (lamina propria), muscularis mucosae (smooth muscle), glands (some locations)

2.Submucosa: dense irregular CT, glands (some locations)

3.Muscularis externa: 2 layers of smooth muscle

4.Serosa: serous membrane of simple squamous epithelium (mesothelium) and small amount of underlying loose CT; Adventitia of CT is found instead of serosa where attachments to other structures occurs


Mucosa organized to perform functions


  • Epithelial lining is barrier to external environment (pathogens and noxious substances)
  • Esophagus has stratified squamous epithelium to protect against physical abrasion
  • GI tract has simple columnar epithelium that acts as selective permeability layer

Mucosa organized to perform functions


Projections of mucosa and submucosa increase surface area for absorption of nutrients

  • Plicae circulares: circumferentially arranged folds of submucosa along small intestine
  • Villi: mucosal projections of small intestine
  • Microvilli: tightly packed apical projection of intestinal absorptive cells (simple columnar)

Glycocalyx: has enzymes from absorptive cells essential for final digestion of proteins and sugars


Mucosa organized to perform functions


  • Carried out by glands distributed down length of canal
  • Mucus: protective lubrication, buffer
  • Substances that assist in digestion: enzymes, HCl, peptide hormones, water

Gland types

Intrinsic glands: lie within wall layers of digestive tract

  • Mucosal glands that extend into lamina propria (esophagus, stomach, small intestine, large intestine)
  • Submucosal glands deliver secretions to lumen of mucosal glands or to surface of canal itself (esophagus, small intestine)

Extrinsic glands: lie outside GI tract and deliver secretions to digestive system via ducts (liver, pancreas, gallbladder, salivary glands)


Mucosa: lamina propria

Contains mucus secreting glands to protect from chemical and mechanical injury

Where absorption occurs through numerous blood and lymphatic vessels

Lymphatic tissues act as immunologic barrier

Gut-associated lymphatic tissue (GALT)

  • Diffuse lymphatic tissue
  • Lymphatic nodules (numerous in ileum: Peyer’s patches)
  • Eosinophils, macrophages, and neutrophils in addition to lymphocytes located in two areas above

Mucosa: muscularis mucosae

  • Smooth muscle
  • Move mucosa layer creating ridges and valleys to facilitate absorption and secretion


Dense irregular CT

Large blood vessels and lymphatic vessels

Meissner’s nerve plexus

  • Part of enteric nervous system
  • Controls smooth muscle of alimentary canal

Occasional glands


Muscularis externa

2 concentric, thick layers of smooth muscle

  • Inner circular layer: mixes and compresses contents by constricting lumen
  • Outer longitudinal layer: propels contents by shortening of tube (peristalsis)

Thin layer of CT between muscle layers

  • Myenteric plexus (Auerbach’s): controls smooth muscle
  • Blood and lymphatic vessels

Variations of this layer occur along digestive tract


Muscularis externa: differences along tract

  • Esophagus and anus have skeletal muscle that form sphincters
  • Esophagus contains skeletal and/or smooth muscle depending on segment
  • Stomach has a third oblique layer of smooth muscle that is deep to circular layer

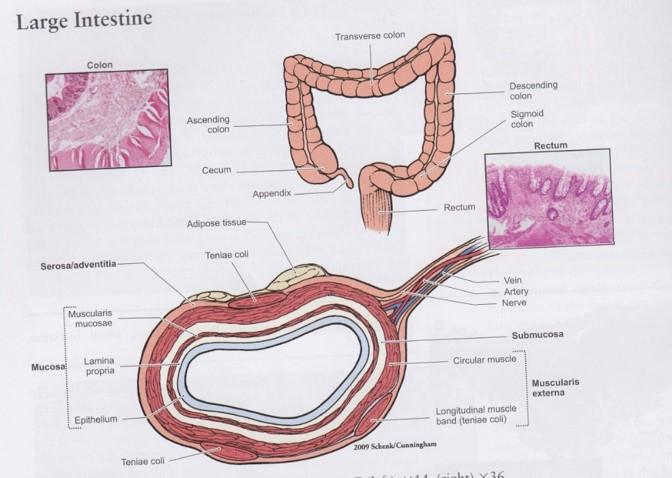

  • Large intestine has thickened parts of longitudinal muscle layer that from 3 equally spaced bands called teniae coli

Serosa and adventitia

Mesothelium and small amount of underlying CT

Continuous with mesentery and lining of abdominal cavity

Large blood and lymph vessels and nerve trunks

Large amounts of adipose tissue can develop here

Parts of tract without serosa (adventitia)

  • Thoracic part of esophagus
  • Portions fixed to cavity wall or neighboring organs
card image


card image

Mucosal layer with non-keratinized stratified squamous epithelium.

card image


card image

~25 cm long

Lumen normally in collapsed state

Mucosa of nonkeratinized stratified squamous epithelium

  • Diffuse lymphatic tissue and lymphatic nodules throughout lamina propria
  • Deep layer has muscularis mucosae with longitudinally arranged smooth muscle

Submucosa like described for GI tract in general; glands may be present



card image

Muscularis externa: 2 muscle layers like most of canal

  • Upper 1/3 made of skeletal muscle
  • Middle 1/3 mix of skeletal and smooth muscle
  • Distal 1/3 made of smooth muscle

Adventitia comprises most of outer layer

card image

Esophageal glands proper

card image
  • Secrete slightly acidic mucus—stains pink to pale white
  • Protects mucosa
  • Aids in food passage
  • Located in submucosa
  • More located in upper ½ of esophagus
  • Small, compound glands
  • Excretory duct of stratified squamous epithelium

Esophageal cardiac glands

card image

Located within lamina propria of mucosa

Mostly in terminal portion of esophagus

Secrete a neutral mucus (appears clear or white)

  • Protects mucosa
  • Aids in food passage

Resemble glands in cardiac portion of stomach


Wall of upper esophagus

card image

skeletal muscle


Lower esophagus

card image
  • Muscularis externa is entirely smooth muscle.
  • Serosa with mesothelium instead of adventitia.


card image

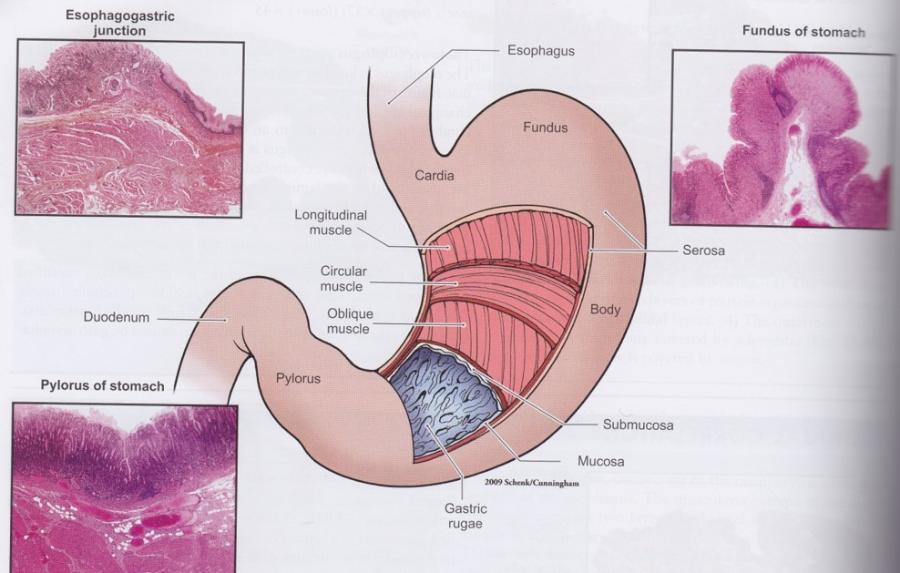

  • Cardiac region (cardia): part near esophageal orifice and contains cardiac glands
  • Fundic region (fundus) and body region: largest part of stomach, between cardia and pylorus, contains fundic/gastric glands; rugae are longitudinal folds to allow for distension
  • Pyloric region (pylorus): part proximal to pyloric sphincter and contains pyloric glands

Esophageal-stomach junction: Cardiac portion of stomach

card image
  • Esophagus- Stratified squamous epithelium
  • stomach- Simple columnar epithelium
card image

Esophageal-stomach junction

card image
card image


card image


card image

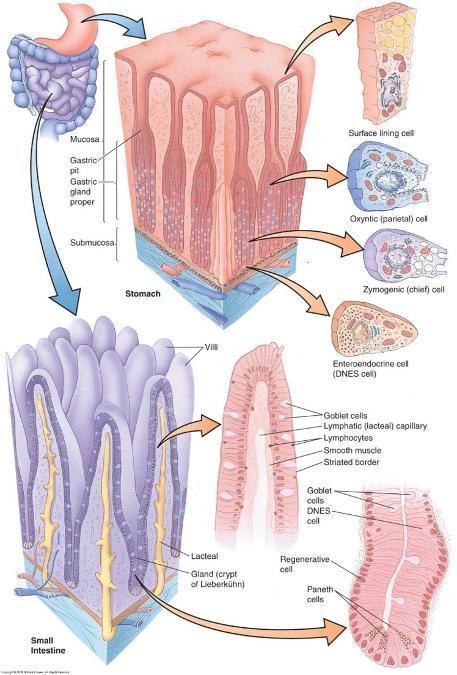

Gastric mucosa

card image
  • Inner surface has longitudinal folds called rugae
  • Gastric pits form openings with gastric glands emptying into bottom of pits
  • Simple columnar cells at surface secreting mucus (glandular sheet of cells)

Fundic glands of gastric mucosa

card image
  • Simple, branched, tubular glands extending from bottom of gastric pits to muscularis mucosae
  • Several glands open into a single pit
  • Produce 2L/day of gastric juice (water, electrolytes, HCl, pepsin, mucus, intrinsic factor)
  • Produce gastrin and other hormones
  • Cell types: mucus neck cells, chief cells, parietal cells, enteroendocrine cells, and undifferentiated cells

Fundic glands: mucus neck cells

card image
  • Produce soluble mucus
  • Located in neck of gland along side parietal cells
card image

Fundic gland: chief cells

card image
  • Produce pepsin (begin protein digestion)
  • Basophilc base (nucleus, rER, etc.)
  • Eosinophilic apical region (secretory granules)
  • Cuboidal cells in lower region of gland
card image

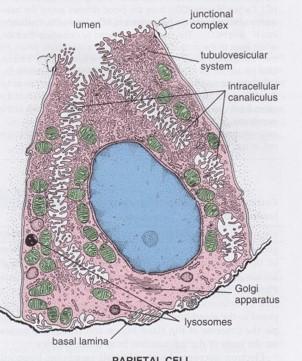

Fundic gland: parietal cells

card image
  • Large polygonal cells located in neck of fundic glands
  • Secrete HCl and intrinsic factor (vitamin B12 absorption)
  • Can be binucleate
  • Large cells with intracellular canalicular and tubulovesicular systems
card image

Fundic gland: enteroendocrine (DNES) cells

card image
  • More prevalent in base of gland
  • Rest on basal lamina but may not reach lumen
  • Clear cytoplasm with H&E stain
  • Produce peptide hormones
card image

Stomach: fundus and body

card image

Cardiac glands of gastric mucosa

card image
  • Only around esophageal orifice
  • Protects esophagus against gastric reflux
  • Mucus secreting cells with a few enteroendocrine cells
  • Flattened basal nucleus with apical cytoplasm filled with mucin granules
card image

Pyloric glands of gastric mucosa

card image
  • In pyloric antrum near junction with small intestine
  • Branched, coiled, tubular glands
  • Wide lumen
  • Secrete mucus and lysozyme

Stomach: other layers

Mucosa: areas in addition to lining epithelium

  • Lamina propria
  • Sparse, only around gastric pits and glands
  • Reticular fibers with fibroblasts, smooth muscle cells, and immune cells
  • Occasional lymphatic nodules
  • Muscularis mucosae is same as rest of canal

Submucosa like the rest of the canal

Muscularis externa: 3 layers of muscle (inner oblique, middle circular, & outer longitudinal)

Serosa like the rest of the canal


Pyloric-duodenal junction

card image

Small intestine

card image

Long, convoluted tube with 3 segments


  • ~25cm long
  • First, shortest, widest part of small intestine


  • ~2.5m long
  • Upper 2/5 small intestine after duodenum


  • ~3.5m long
  • Lower 3/5 of small intestine

Small intestine

  • Principal site of digestion and absorption
  • Duodenum receives chyme from stomach, enzymes from pancreas, and bile from liver/gallbladder
  • Enzymes are also located in the glycocalyx of microvilli of enterocytes (intestinal absorptive cells)—breakdown sugar and protein
  • Absorption of water and electrolytes in addition to sugar and protein
card image

Small intestine: modifications of submucosa and mucosa to increase surface area for absorption

card image

Plicae circulares

  • Permanent spiral folds that contain core of submucosa
  • Extend half to two-thirds around lumen
  • Decreased frequency in ileum


  • Fingerlike projections of mucosa into lumen
  • Completely cover surface of small intestine
  • Decrease in height toward ileum

Microvilli (brush border) with glycocalyx

  • Apical surface of enterocytes (mucosa)
  • Biggest increase in surface area for absorption
  • 1000s/cell

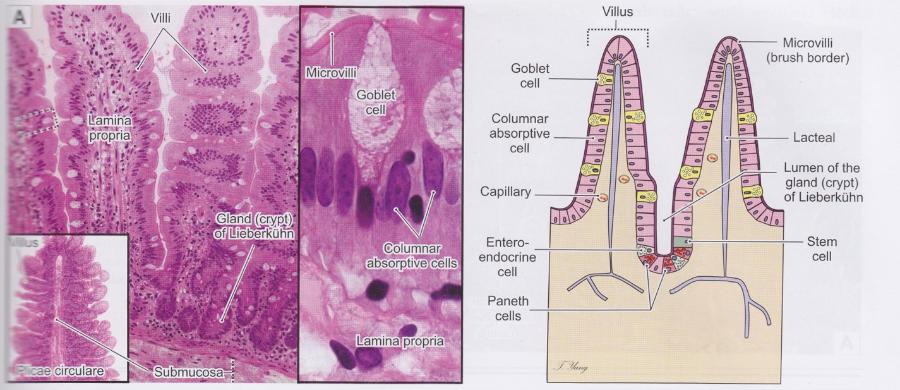

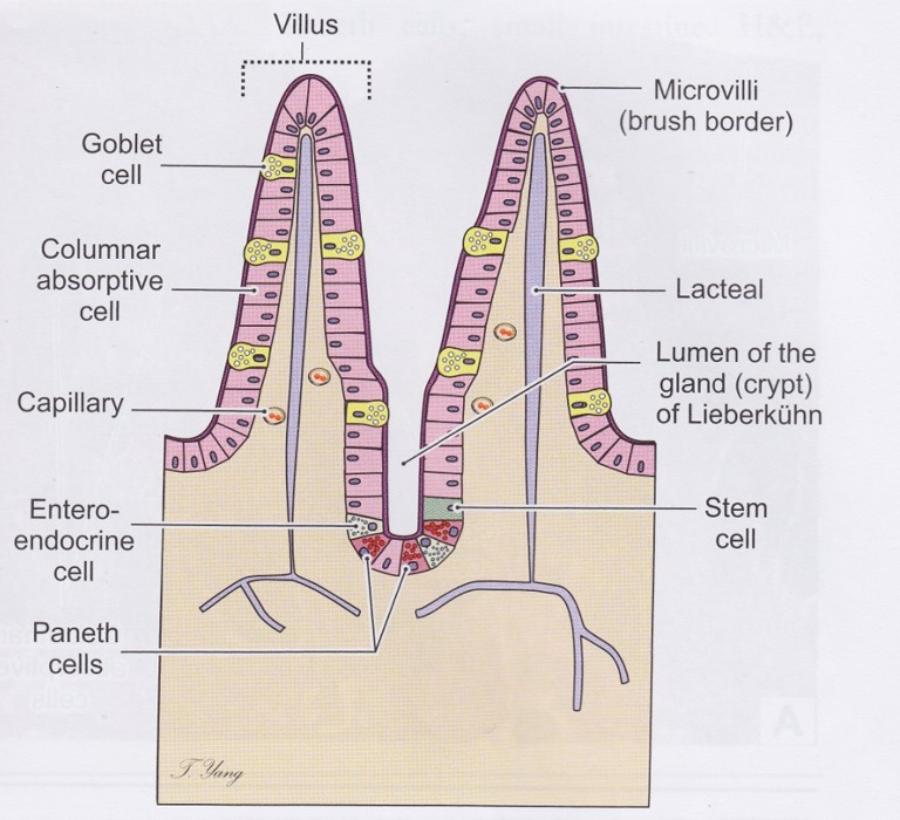

Villi and intestinal glands

card image
  • Villi contain core of loose CT (extension of lamina propria).
  • Intestinal glands extend from muscularis mucosae to base of villi.

Lamina propria of small intestine: GALT and Peyer’s patches (lymphatic nodules)

card image

Direct exposure to external environment. Therefore, a large percentage of lymphatic tissue found here.


Cell types of intestinal mucosal epithelium (glands and villi)

card image
  • Stem cells: origin of all cell types at base of intestinal glands
  • Enterocytes (absorptive cells): absorption—most common
  • Goblet cells: unicellular mucus secreting glands
  • Paneth cells: secrete antimicrobial substances; base of glands
  • Enteroendocrine (DNES) cells: secrete paracrine and endocrine hormones
  • M cells: cover enlarged lymphatic nodules, antigen presenting cells
card image


card image

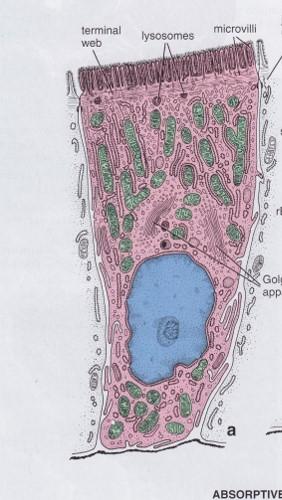

  • Tall columnar cells with basally positioned nucleus
  • Microvilli on apical surface
  • Junctional complexes between cells
  • Membrane transporters for absorption
  • Secrete glycoprotein enzymes (glycocalyx), water, and electrolytes
card image

Goblet cells

card image
  • Produce mucus
  • Increase in number towards ileum
  • Apical cytoplasm appears empty in specimens
  • Distorts shape of neighboring cells with apical mucus cup
card image

Paneth cells

card image
  • Found in bases of intestinal glands
  • Basophilic basal cytoplasm
  • Large, intensely eosinophilic apical secretory granules
  • Lysozyme and defensins in granules (control bacteria)

Enteroendocrine and M cells

card image

Enteroendocrine (DNES) cells

  • At all levels of intestinal gland and villi (most in lower portion)
  • Secrete peptide hormones that regulate secretion and absorption

M cells

  • Antigen transporting cells to underlying lymphatic nodules

Small intestine: submucosa, muscularis externa, and serosa

card image


  • Localized aggregates of adipose tissue in the dense CT
  • Duodenum has submucosal glands (Brunner’s glands)

Muscularis externa and serosa have same features of general digestive tract

card image


Shortest segment

Broad, tall, and numerous villi

Fewer goblet cells

Brunner’s glands present in submucosa

  • Mucus and bicarbonate ions protect mucosa from acidic chyme entering from stomach


card image

Brunner’s glands in submucosa are distinctive feature of this segment.

card image


card image
  • Villi are shorter, narrower, and less numerous
  • Increased number of goblet cells
  • NO Brunner’s glands


card image

Plica circulares and villi are distinctive features of this segment.

card image


card image

Fewest number of villi

  • Short and narrow

Most goblet cells

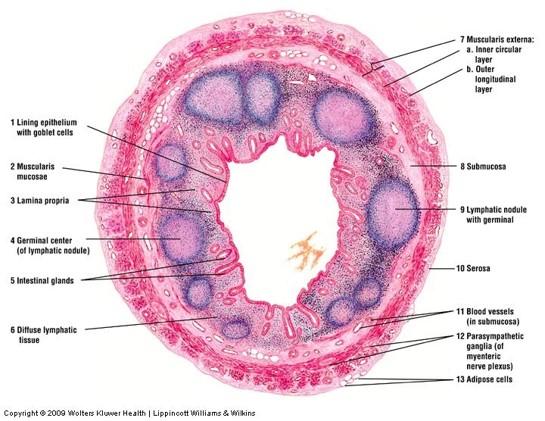

Peyer’s patches

  • Aggregations of large lymphatic nodules
  • Covered by M cells
card image


card image

Peyer’s patches and short villi are distinctive features of this segment.

card image

Large intestine

card image

Cecum (with appendix), colon, rectum, and anal canal

Distinctive features

  • Muscularis externa has outer longitudinal layer arranged into 3 thickened bands (taeniae coli)
  • Bulges/sacks called haustra between taeniae
  • Mucosa is smooth (no plicae circulares or villi)
card image


card image
  • Numerous, straight, tubular glands throughout full thickness of mucosa (mucus)
  • Simple columnar epithelium
  • Reabsorb water and electrolytes
  • No paneth cells but all other types in small intestine also here

Lamina propria

Same basic components as rest of canal

Distinctive features

  • Well-developed GALT: large lymphatic nodules that distort mucosal surface and extend into submucosa
  • No lymphatic vessels in lamina propria core

Wall of large intestine

card image


card image

Presence of taeniae coli and lack of villi are distinctive features of this segment.


Cecum and appendix

card image

Cecum is blind pouch distal to ileocecal valve connects to small intestine

Appendix is a fingerlike extension of cecum

  • Uniform layer of longitudinal muscle in muscularis externa
  • Large number of lymphatic nodules
  • Less glands than colon
  • In adults may just be fibrous scar tissue
card image


card image


card image
  • No taenia coli
  • Covered with adventitia

Anorectal junction

card image

Rectum lined with simple columnar epithelium

Anus lined with stratified squamous epithelium

  • No submucosa, just lamina propria

Skeletal muscle present in anus (voluntary sphincter)


Anorectal junction

card image

Anorectal junction

card image

Digestive System III

card image

Accessory organs that lie outside main digestive tract.


Accessory organs of the digestive system

  • Liver
  • Gallbladder
  • Pancreas
  • Salivary glands
  • The liver, gallbladder, and pancreas deliver their secretory products to the small intestine via excretory ducts, while the salivary glands deliver their secretory products to the oral cavity via excretory ducts.


card image

The liver is divided into hexagon-shaped lobules



card image
  • Largest gland and internal organ
  • 4 lobes that are further divided into lobules, which are separated by CT septa
  • Lobules are repeating hexagonal units
  • Hepatocytes (liver cells) arranged into cords (plates) radiating outward from a central vein (cords are 1 cell in width)
  • Sinusoids fill spaces between cords of hepatocytes

Liver functions

  • Receives all liquids and nutrients absorbed from intestines
  • Produces plasma proteins
  • Storage and conversion of vitamins (A, D, K)
  • Storage, metabolism, and homeostasis of iron
  • Degradation of drugs, toxins, and foreign proteins (via oxidation and conjugation)
  • Glucose metabolism (glycogen formation)

Liver functions

  • Lipid metabolism (oxidation of fatty acids)
  • Synthesis and uptake of cholesterol
  • Converts ammonium ions to urea
  • Synthesis and conversion of nonessential amino acids
  • Produces bile
  • Modifies structure and function of hormones (vitamin D, thyroxine, growth hormone, insulin, and glucagon)


card image
  • Large, polygonal cells
  • Nuclei are large, spherical, and in center of cell
  • Acidophilic cytoplasm (stain with eosin—pink)
  • Capable of regeneration

Blood supply to liver from portal triad

Venous (portal) supply via the hepatic portal vein

  • 75% of blood supply to liver
  • Comes from intestines, pancreas, and spleen
  • Depleted of oxygen
  • Liver first organ to receive metabolic substrates and nutrients—filtration

Arterial supply via the hepatic artery

  • 25% of blood supply to liver
  • Oxygenated blood

Blood distributed to hepatocytes via sinusoids flowing toward central vein in lobule

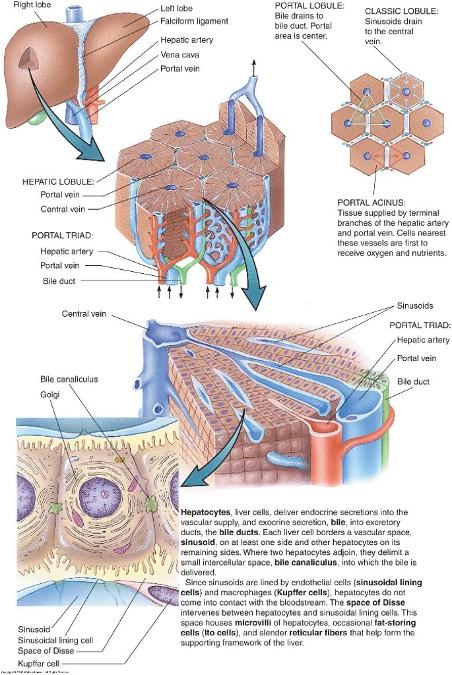

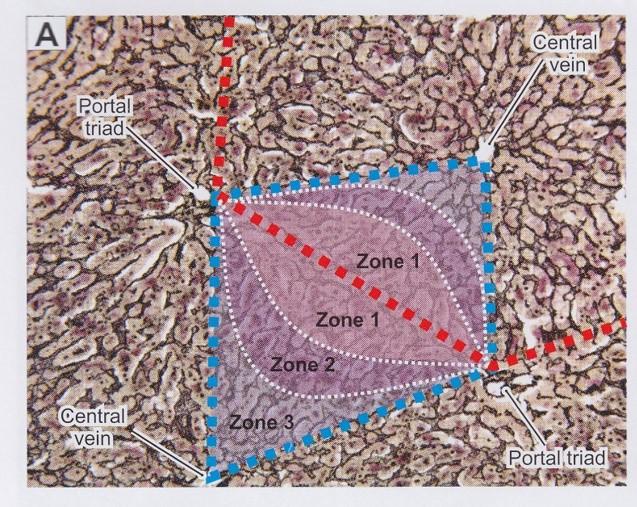

Classic liver lobule

card image
  • Repeating hexagonal unit: based on distribution of branches of portal vein and hepatic artery
  • Portal triads within portal canals form corners of hexagon
  • Sheets of hepatocytes separated by sinusoids
  • Blood flows from portal triad toward central vein
  • Bile flows from hepatocytes at central vein out toward portal triad

Plates/cords vs. sinusoids

card image
card image

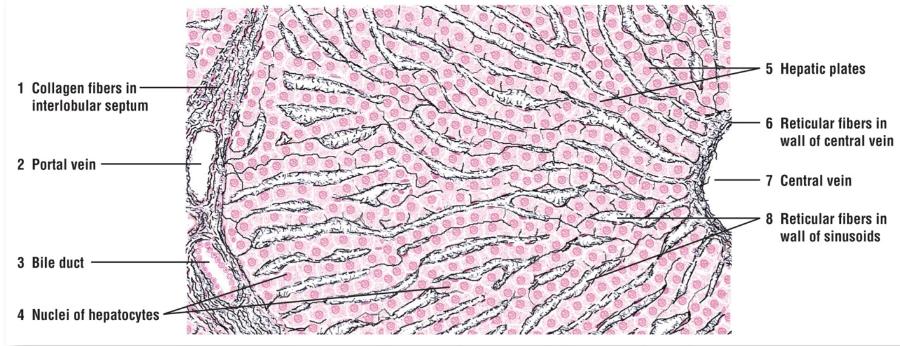

Reticular fibers organize hepatocytes into plates/cords

card image

Kupffer cells (sinusoidal macrophages)

card image

Kupffer cells line sinusoids. They destroy erythrocytes, recycle iron, and get rid of foreign substances.



Adult secretes about 1L/day

  • Water
  • Phospholipids and cholesterol
  • Bile salts: emulsifying agents
  • Bile pigments: detoxify bilirubin
  • Electrolytes

Secretion controlled by nervous system and hormones



card image

Pear-shaped sac that holds about 50 mL bile

  • Storage
  • Concentrates

Attached to visceral surface of liver

Contractions releases bile into common bile duct and delivered to duodenum



card image
  • Deep folds in mucosa in empty gallbladder
  • Mucosal surface of simple columnar epithelium with short microvilli
  • Lamina propria rich in fenestrated capillaries and small venules with lymphocytes and plasma cells
  • No muscularis mucosae or submucosa
  • Thick serosa/adventitia outside of muscularis externa

Gallbladder: NO muscularis mucosae or submucosa

card image


  • Simple columnar epithelium (Ep)
  • Lamina propria of loose connective tissue (CT)

Smooth muscle (SM) of muscularis externa

Connective tissue of serosa/adventitia


Gallbladder concentrates bile

card image

1.Epithelial cells of gallbladder actively transport Na, Cl, and HCO3 ions from the cytoplasm to intercellular space across lateral plasma membrane

2.Water moves from lumen of gallbladder to dilute high concentration of ions in interstitial space, concentrating bile solution remaining in lumen

3.Excess fluid and ions within interstitial spaces are taken up by fenestrated capillaries underneath epithelium



card image
  • Elongated gland behind stomach
  • Main pancreatic duct extends through length of gland and empties into duodenum
  • Thin layer of loose CT forms capsule around gland and septa that divide gland into lobules
  • Exocrine and endocrine components
card image

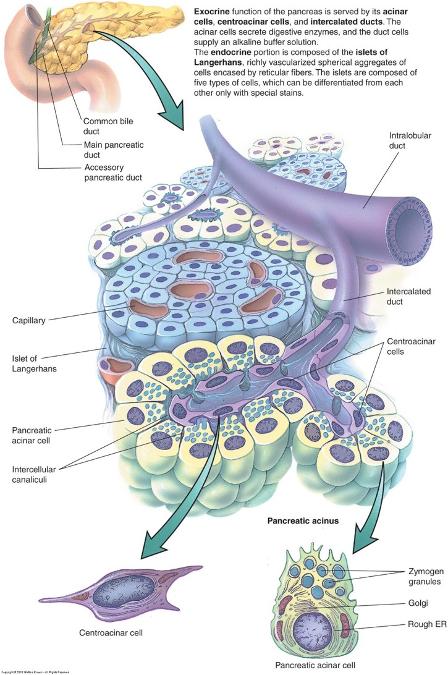

Exocrine pancreas

card image

Serous gland with numerous acini

  • Acidophilic granules in apical cytoplasm

Produce digestive enzyme precursors

  • Endo- and exopeptidases, amylolytic enzymes, lipases, and nucleolytic enzymes
  • Activated in small intestine by enzymes in glycocalyx of enterocytes

Endocrine pancreas

card image
  • Islets of Langerhans’ are groups of endocrine cells found throughout pancreas
  • Polygonal cells within a network of fenestrated capillaries
  • With H&E, the cells are pale surrounded by the more intensely staining exocrine acini
  • 3 types of cells (A, B, D) secrete hormones

Pancreatic hormones: regulate metabolic functions

Insulin (B cells)

  • Decrease blood glucose levels
  • Increase uptake, storage, and use of glucose (liver, skeletal muscle, and adipose)
  • Stimulates glycerol synthesis
  • Inhibits lipase activity

Glucagon (A cells)

  • Increases blood glucose levels
  • Increases proteolysis
  • Increases mobilization of fatty acids

Somatostatin (D cells)

  • Inhibits insulin and glucagon secretion

Pancreas: islets vs. acini

card image

The islets of the pancreas are generally lighter stained when compared to the acini. The islet cells are smaller and integrated among capillaries. The acini are connected to excretory ducts.


Pancreas: islets (IL) vs. acini (Ac)

card image

Salivary glands

card image
  • In tissue surrounding oral cavity, excretory ducts transport secretions into oral cavity
  • Parotid glands
  • Submandibular glands
  • Sublingual glands

Secretory gland acini and ducts

card image
  • Acinus: blind sac of secretory cells (serous, mucus, or both) & myoepithelial cells
  • Intercalated ducts
  • Striated ducts
  • Excretory ducts

Acinar cells

Serous cells (secretory)

  • Pyramidal shaped
  • Round nuclei near basal portion of cell
  • Numerous spherical secretory granules (protein secretion) in apical cytoplasm (eosin)

Mucus cells (secretory)

  • Mucus secretion stored in granules filling cells
  • Flattened nuclei at basal surface of cell

Myoepithelial cells

  • Contractile cells with numerous processes between secretory cells and basal lamina
  • Move secretory products toward excretory duct

Salivary ducts

  • Increase in size as leave acini
  • Intercalated duct: leads directly from acinus lined with simple cuboidal epithelium (small lumen)
  • Striated duct: merger of intercalated ducts, has basal infoldings of plasma membrane of simple columnar epithelial cells
  • Excretory intralobular duct: simple to stratified cuboidal epithelium and surrounded by CT
  • Interlobular and interlobar ducts: empty into oral cavity, lined with stratified cuboidal epithelium (largest)

Salivary ducts modify secretions

Intercalated ducts

  • Secrete bicarbonate ions
  • Absorb chloride ions

Striated ducts

-Basal infoldings allow for:

  • Reabsorption of sodium ions
  • Secretion of potassium and bicarbonate ions
card image

Salivary gland structure

card image

Parotid gland

card image
  • Largest
  • Paired
  • Compound tubuloacinar gland
  • Serous gland (stains with eosin)
  • Located below and in front of ear
  • Large amounts of adipose tissue within gland
  • CT capsule creates septa forming lobules
card image

Parotid gland

card image

The lack of islets distinguishes the parotid gland from the pancreas.


Submandibular gland

card image
  • Paired
  • Compound tubuloacinar gland
  • Mixed gland (mostly serous)
  • Mixed acini push serous cells to outside of acinus forming crescent (serous demilune)
  • Floor of mouth near mandible
card image


card image
  • Individual serous (majority) or mucus (few) acini.
  • Mixed acini with serous secretory cells (demilunes) surrounding mucus secretory cells.

Sublingual gland

card image
  • Smallest
  • Aggregates of small glands
  • Mixed glands (mostly mucus) with serous demilunes
  • Compound tubuloacinar gland
  • Floor of mouth anterior to submandibular gland
card image

sublingual gland

card image

Mostly mucus acini, but some are mixed with serous demilunes.



  • Combined secretions of all salivary glands
  • 1 L/day
  • Calcium and phosphate ions for tooth development and maintenance
  • Antibodies and other antibacterial agents to slow down tooth decay
  • Water (majority), proteins, glycoproteins, and electrolytes
  • High potassium and bicarbonate and low sodium concentrations

Functions of saliva

  • Moistening of oral mucosa
  • Moistening of dry foods for swallowing
  • Solvent to dissolve foods to stimulate taste buds
  • Buffer contents of oral cavity
  • Contains amylase to digest carbohydrates
  • Contains lysozyme to kill certain bacteria in oral cavity

Urinary System

card image

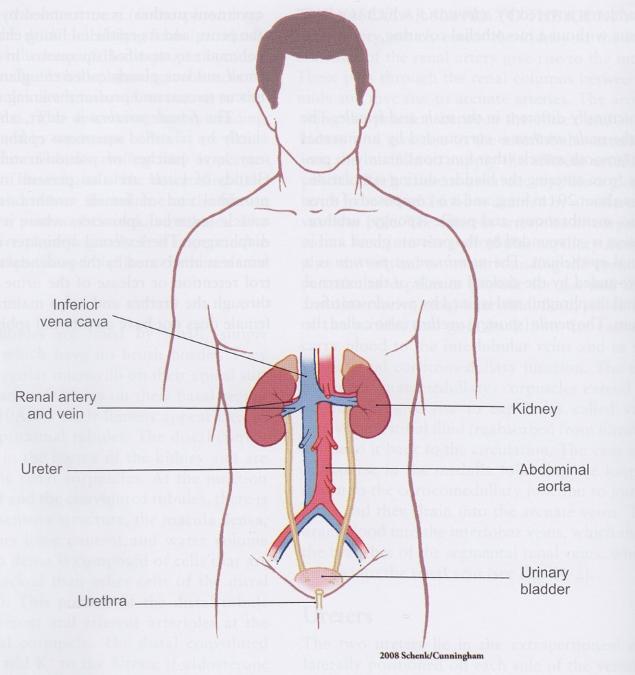

Urinary system

card image

Kidney functions

Maintain homeostasis!

  • Conserve water, electrolytes, and metabolites
  • Remove waste products of metabolism (urine)
  • Maintain composition and volume of extracellular fluid
  • Maintain acid-base balance (secretion of H+ or HCO3-)

Endocrine organ

  • Erythropoietin: erythrocyte production
  • Renin: blood pressure and volume regulation
  • Hydroxylation of Vitamin D3: Ca+2 regulation

Structure of kidney

card image
  • Hilum: where blood vessels, nerves, and ureters enter kidney
  • Capsule made of dense irregular CT
  • Renal pelvis collects urine from collecting ducts and funnels them into ureter
  • Cortex and medulla

Cortex vs. medulla

card image
  • Cortex: renal corpuscles, convoluted and straight tubules, collecting tubules and ducts, vascular supply
  • Medulla: straight tubules, collecting ducts, and vasa recta
card image

Cortex vs. medulla

card image

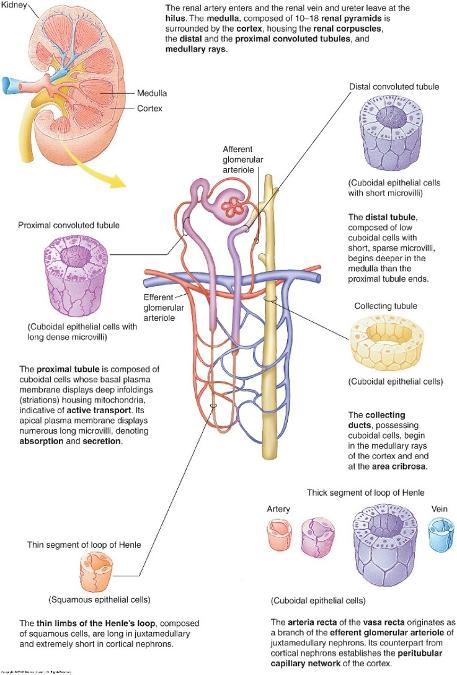

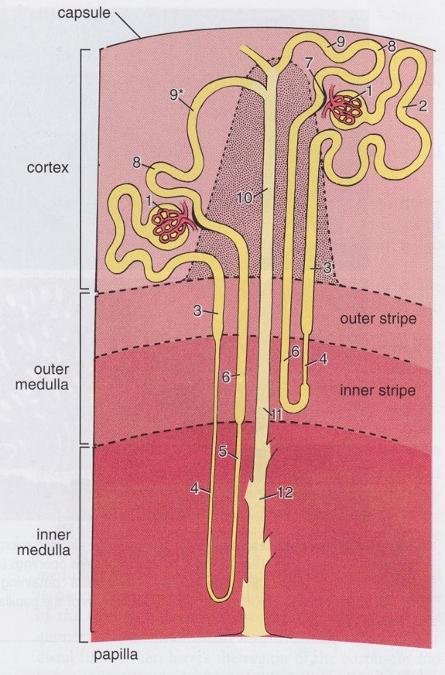

Nephron: renal corpuscle (cortex) and renal tubules (cortex & medulla)

card image
  • Structural and functional unit of kidney
  • Each kidney contains about 2 million nephrons
  • Produces urine from ultrafiltrate of blood by secretion and reabsorption along tubules

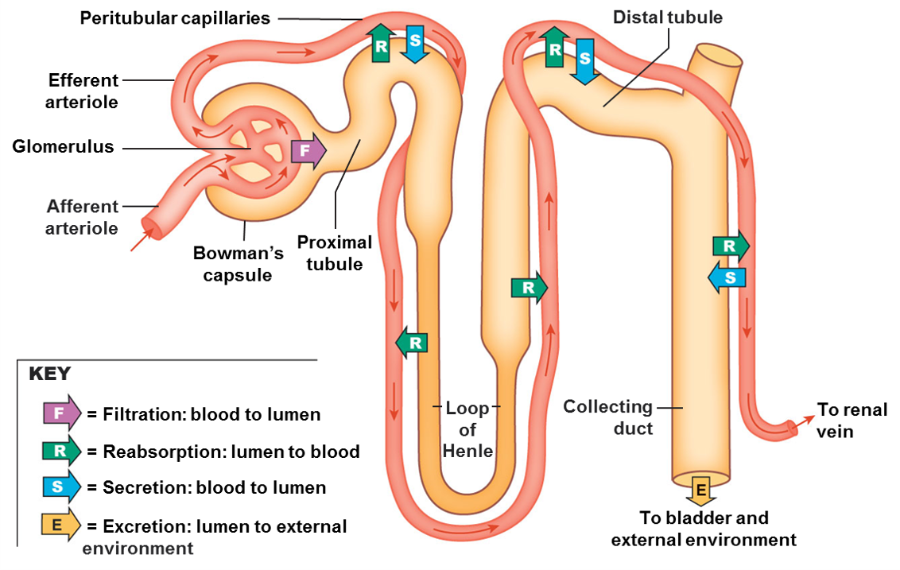

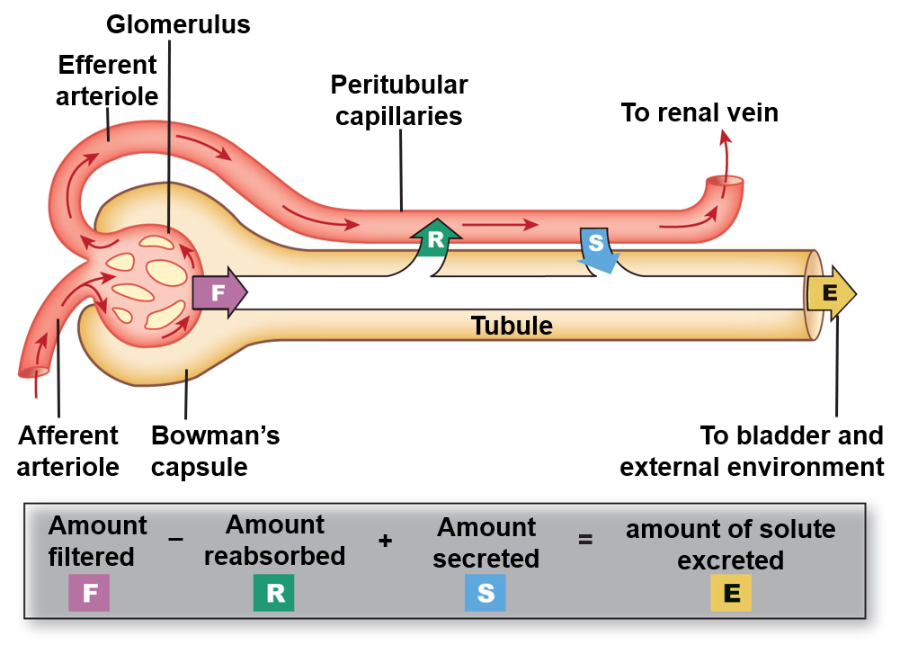

Kidney tubule function

card image
  • Filtration: All substances except proteins & cells
  • Reabsorption: water, Na+, bicarbonate, and glucose
  • Secretion: creatinine & organic acids/bases
  • Excretion: filtered substances not reabsorbed + secreted substances
card image

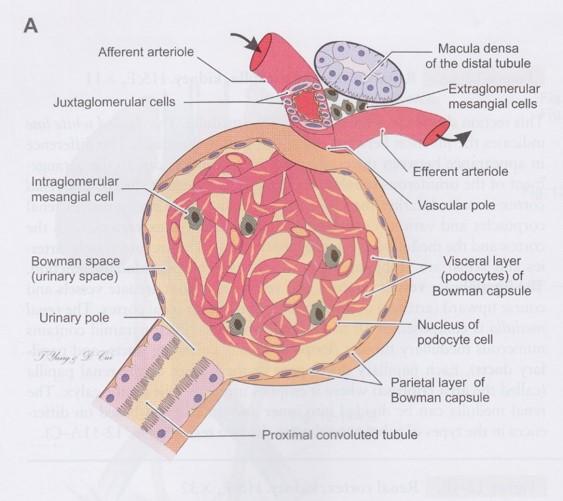

Nephron Cortex Structures: Renal Corpuscle With Glomerulus & Renal Tubules

card image
card image

Nephron Medulla Structures: Renal Ducts and Tubules

card image

Pathway Through Nephron Tubules

card image

Proximal convoluted tubule

  • Where most reabsorption takes place due to specializations of tubule cells (microvilli & basal infoldings)

Loop of Henle

  • Concentrates urine

Distal convoluted tubule

  • Reabsorb Na+ and excrete H+ and K+

Collecting duct

  • Water reabsorption (regulated by aldosterone and antidiuretic hormone (ADH))

Types of nephrons: based on corpuscle location

card image
  • Cortical: corpuscles in outer part of cortex with short Loops of Henle
  • Juxtamedullary: corpuscles near medulla with long Loops of Henle (concentrate urine)

Filtration apparatus

card image
  • Endothelium of glomerular capillaries
  • Glomerular basement membrane (endothelium and podocytes)
  • Podocyte foot processes and filtration slits
  • Limits substances filtered by size
card image

Mesangial cells

card image

Form juxtaglomerular apparatus and some found in glomerulus


Structural support


  • Synthesize ECM
card image

Juxtaglomerular apparatus

card image
  • Regulates blood volume & blood pressure by monitoring filtrate volume & Na+ concentration
  • Macula densa of distal tubule near glomerulus (regulates filtration rate and renin release)
  • Juxtaglomerular cells near afferent and efferent arterioles (sensor of blood volume)
  • Extraglomerular mesangial cells

Blood supply with portal system

card image

Urine collection and excretion

Ureter: tube from kidney to bladder

Urinary bladder: reservoir for urine

Urethra: tube exiting body

Walls have 3 layers (Digestive system had 4 layers)

  • Mucosa (with transitional epithelium and lamina propria)
  • Muscularis (2-3 layers of smooth muscle cells mixed with CT)—inner layer is longitudinal vs. circular in the digestive tract
  • Adventitia (often adipose tissue; blood vessels and nerves travel here)

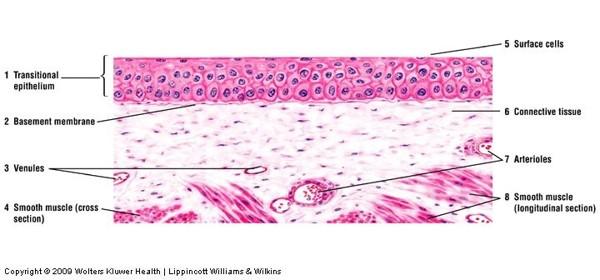

Transitional epithelium of ureters, bladder, and urethra

card image
card image


Mucosa folded when ureter is undistended

  • Transitional epithelium
  • Thick lamina propria

Muscularis: 2-3 layers of smooth muscle

Adventitia: loose to dense irregular connective tissue


Ureter wall

card image

Mucosa folded when ureter is undistended

  • Transitional epithelium
  • Thick lamina propria

Muscularis: 2-3 layers of smooth muscle

Adventitia: loose to dense irregular connective tissue

card image

Urinary bladder

card image

Mucosa folded when bladder is undistended

  • Transitional epithelium
  • Thick lamina propria

Muscularis: 3 layers of smooth muscle

Adventitia or Serosa: loose to dense irregular connective tissue


Relaxed Bladder

card image

stretched bladder

card image
