Anatomy Block 2: 2A Study Guide

Helpfulness: 0
Set Details Share
created 2 years ago by ltopiol
127 views
updated 2 years ago by ltopiol
show moreless
Page to share:
Embed this setcancel
COPY
code changes based on your size selection
Size:
X
Show:
1
card image

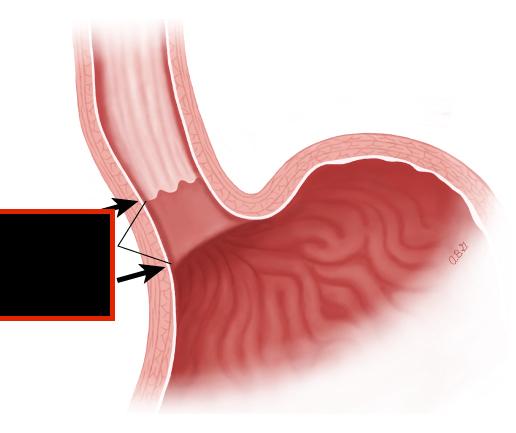

What is the black area region referring to?

Gastroesophageal junction (Z-line)

2
card image

What is this area called?

Gastric folds (rugae)

3
card image

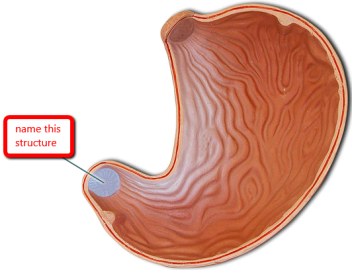

Pyloric sphincter

4

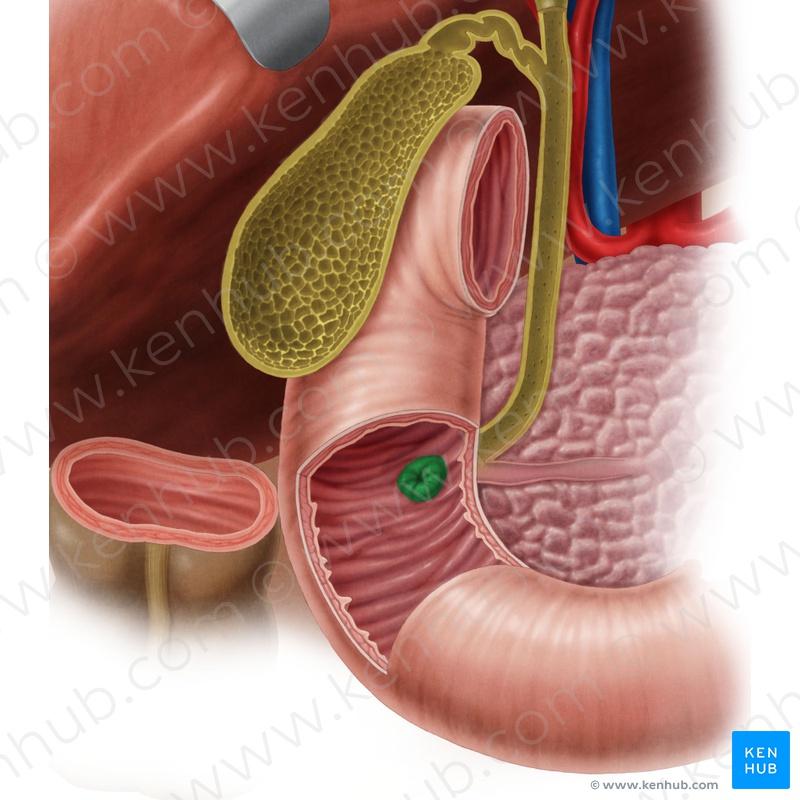

card image

What is the green circle referring to?

Major duodenal papilla

5
card image

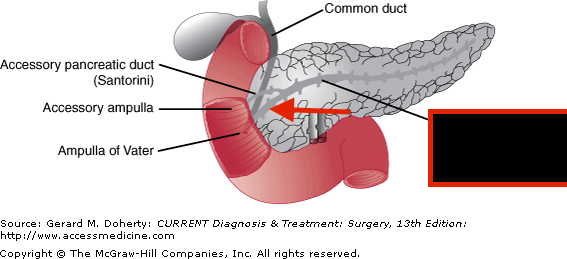

What is the red arrow pointing to?

Main pancreatic duct (which links with major duodenal papilla)

6
card image

What is the inner area referring to?

Circular folds of small intestine

7
card image

What is the arrow pointing to?

Ileocecal valve

8
card image

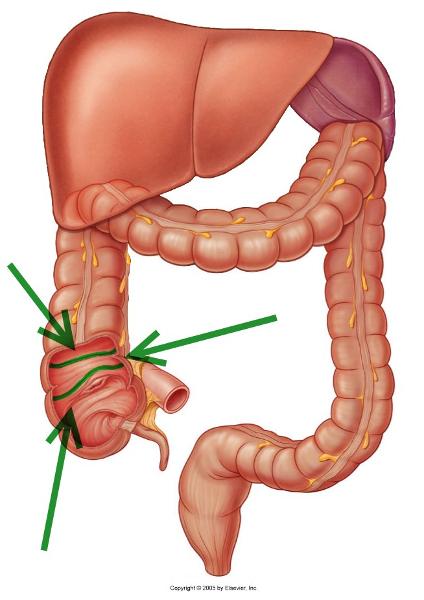

What are the green lines referring to?

Semilunar folds of colon

9
card image

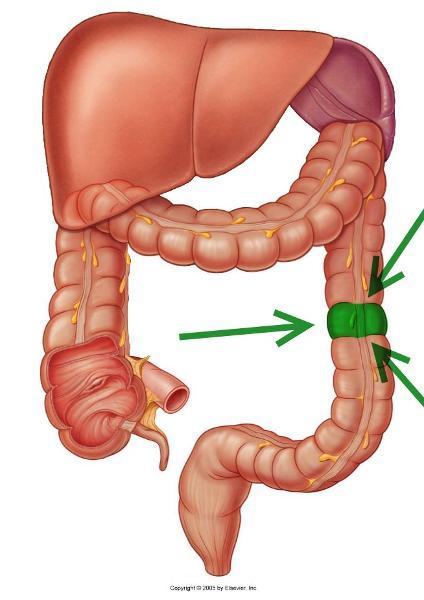

What is the green area referring to?

Haustra

10
card image

What is the probe pointing to?

Superior mesenteric artery (descends anterior to the duodenum and branches right colic artery and middle colic artery)

11
card image

What is the probe referring to?

Arterial arcades (they're loops)

12
card image

What is the probe touching?

Straight arteries (vasa recta)

13
card image

What is the probe pointing to?

Right colic artery

14
card image

What is the probe referring to?

Middle colic artery (supplies blood to transverse colon)

15
card image

What is the vasculature that is seen going around the colon to supply blood?

Marginal artery

16
card image

What is the probe referring to?

Inferior mesenteric artery (branches left colic artery, several sigmoid arteries, and superior rectal artery)

17
card image

What is the arrow pointing to?

Left colic artery

18
card image

What is the probe pointing to?

Superior rectal artery (comes from the inferior mesenteric artery)

19
card image

What is the probe pointing to?

Superior mesenteric vein (runs to the right of the superior mesenteric artery)

20
card image

What is the probe pointing to?

Inferior mesenteric vein (branches from splenic vein which branches from portal vein)

21

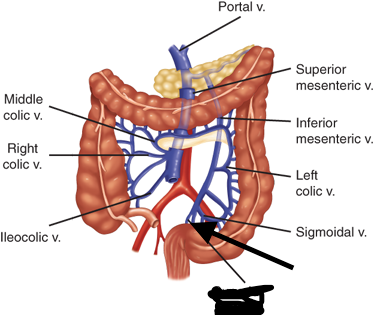

card image

What is the arrow pointing to?

Superior rectal vein

22
card image

What is the probe touching?

Greater splanchnic nerve

23
card image

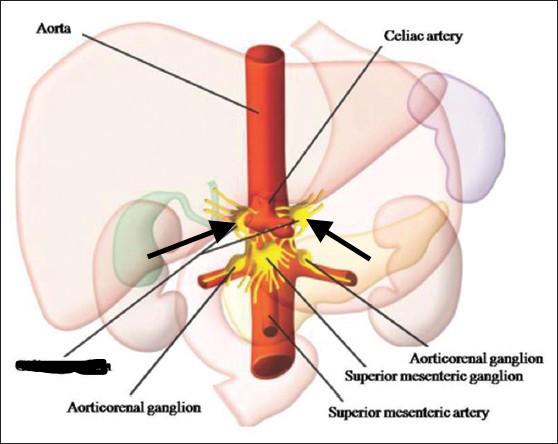

What are the arrows referring to? And what surrounds it?

Celiac ganglion. Celiac plexus surrounds it

24
card image

What is the probe pointing to?

Lumbar sympathetic trunk

25

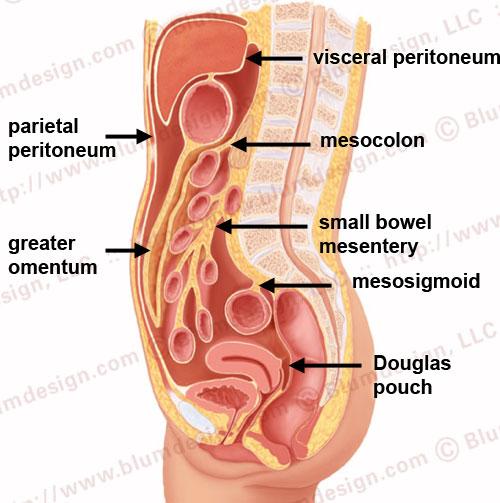

card image

What is the parietal peritoneum?

Lines the walls of the abdominal and pelvic cavities

26

What is the transversalis fascia?

Thin layer of fascia that lines transversus abdominis muscle

27
card image

What surrounds the kidney and vessels of the kidney?

Perirenal adipose

28
card image

What is the probe pointing to?

Left suprarenal gland (located on the anterior and medial surface of the kidney)

Right suprarenal gland is found posterior to the IVC

29
card image

What are the arrows pointing to?

Right and left kidney

30
card image

What is the edge pointing to?

Renal capsule

31
card image

What area are the black arrows referring to?

Renal hilum

32
card image

What is the probe pointing to?

Renal cortex

33
card image

What layer is the purple bracket referring to?

Renal medulla

34
card image

What is the probe pointing to?

Renal column (in between renal medulla)

35
card image

What is the probe pointing to?

Renal pyramid

36
card image

What are the green areas referring to?

Renal papilla

37
card image

What is the probe pointing to?

Minor calyx (drains a single papilla)

38
card image

What is the probe pointing to?

Major calyx (drains multiple calyces)

39
card image

What is the probe pointing to?

Renal pelvis (what the major calyx drains into)

40
card image

What is the red area referring to?

Iliac crest

41
card image

What is the arrow pointing to?

Caval hiatus of diaphragm (IVC goes through this)

42
card image

What is the black arrow pointing to?

Esophageal hiatus

43
card image

What is the arrow pointing to?

Aortic hiatus

44

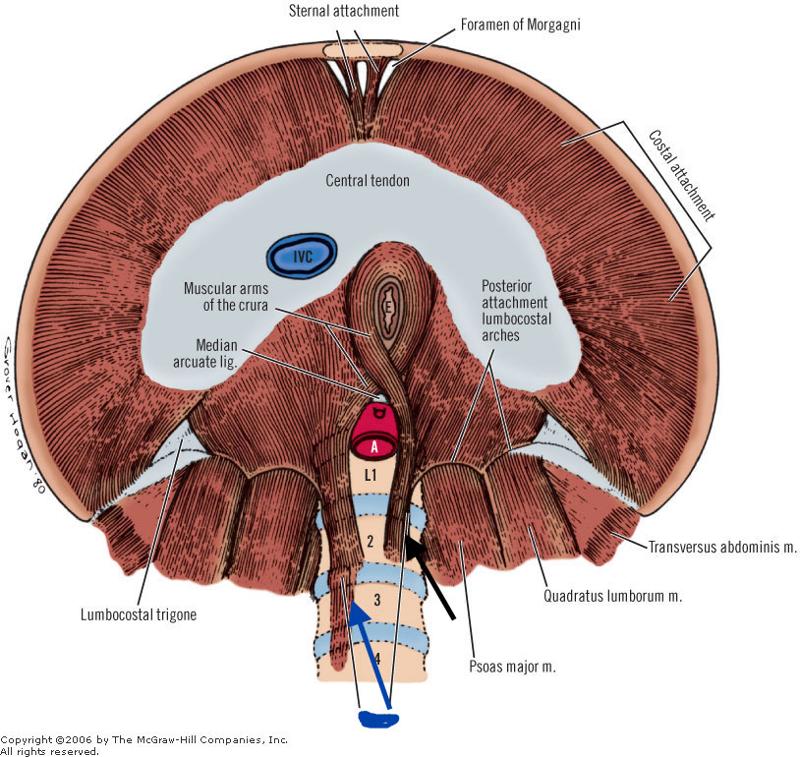

card image

What is the black arrow pointing to? What about the blue arrow?

Black arrow: left crus of diaphragm

Blue arrow: right crus of diaphragm

45
card image

What are the arrows pointing to?

Median arcuate ligament

46
card image

What is the probe pointing to?

Psoas major muscle

47
card image

What is the green area?

Psoas minor muscle

48
card image

What is the orange arrow pointing to?

Quadratus lumborum muscle

49
card image

What is the purple area?

Iliacus muscle

50
card image

What are the blue arrows pointing to?

The right and left common iliac artery

51
card image

What are the arrows pointing to?

Right and left renal arteries (go to abdominal aorta)

52
card image

What are the arrows pointing to?

Suprarenal arteries on the right side

There are suprarenal arteries on the left side as well, they are small arteries that are above the renal artery supplying blood to suprarenal gland

53
card image

What is the pink area referring to?

Right and left ovarian artery in women or testicular artery in men (longest artery in that region)

54
card image

What are the number 5's referring to?

Lumbar arteries

55
card image

What are the arrows referring to?

Right and left renal veins (going to IVC)

56
card image

What is the arrow pointing to?

One of the left suprarenal veins, there are multiple suprarenal veins on each side and they connect with the IVC and drain the suprarenal gland

57
card image

What is the blue area referring to?

Right and left ovarian vein in women or testicular vein in men

58
card image

What is the green area referring to?

Ureters

59
card image

What is the yellow area referring to?

Subcostal nerve

60
card image

What is the probe touching?

Iliohypogastric nerve (goes into transversus abdominis)

61
card image

What is the probe touching?

Ilioinguinal nerve

62
card image

What is the yellow area referring to?

Lateral femoral cutaneous nerve

63
card image

What is the arrow pointing to?

Femoral nerve (lateral to femoral artery)

64
card image

What is the yellow area referring to?

Genitofemoral nerve (pierces through psoas muscle)

65
card image

What is the probe touching?

Obturator nerve

66
card image

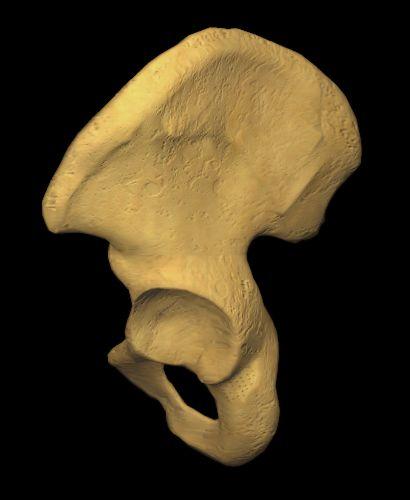

What is this?

Os coxa

67

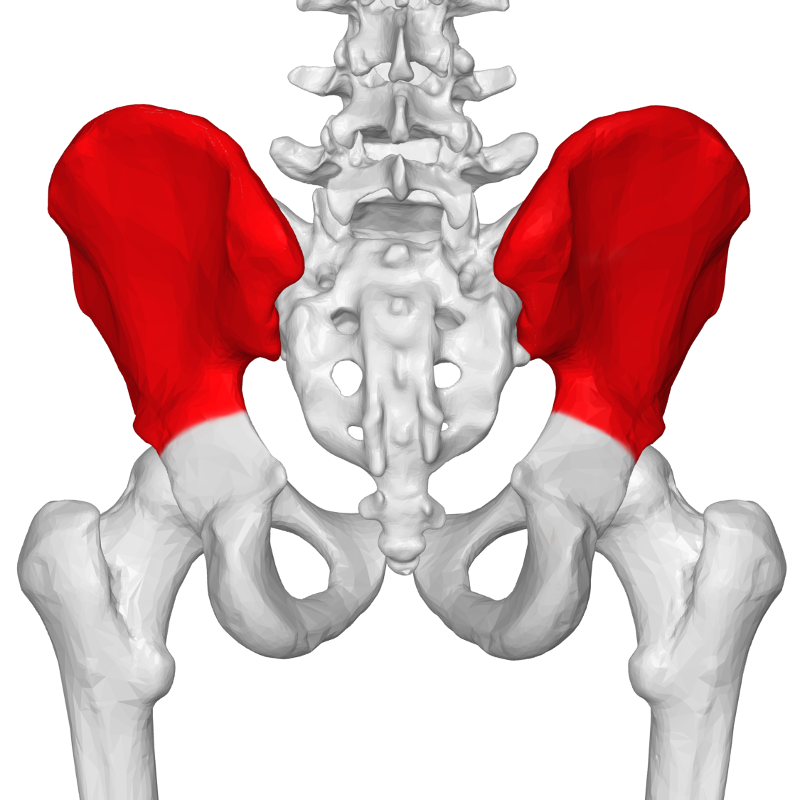

card image

What is the red area?

Ilium

68
card image

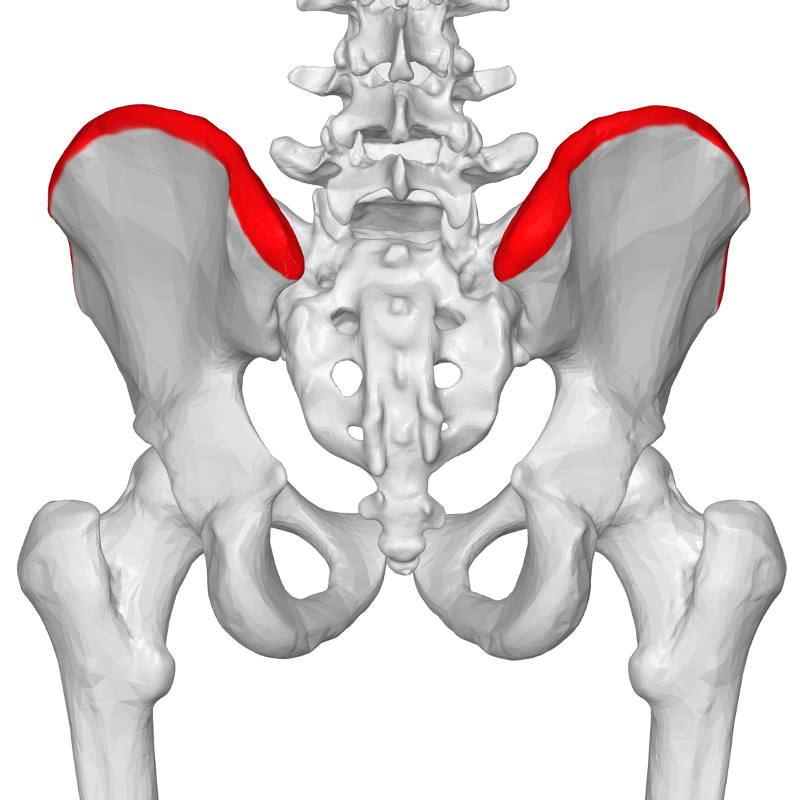

What is the red area?

Iliac crest

69
card image

What is the red area?

Posterior superior iliac spine

70
card image

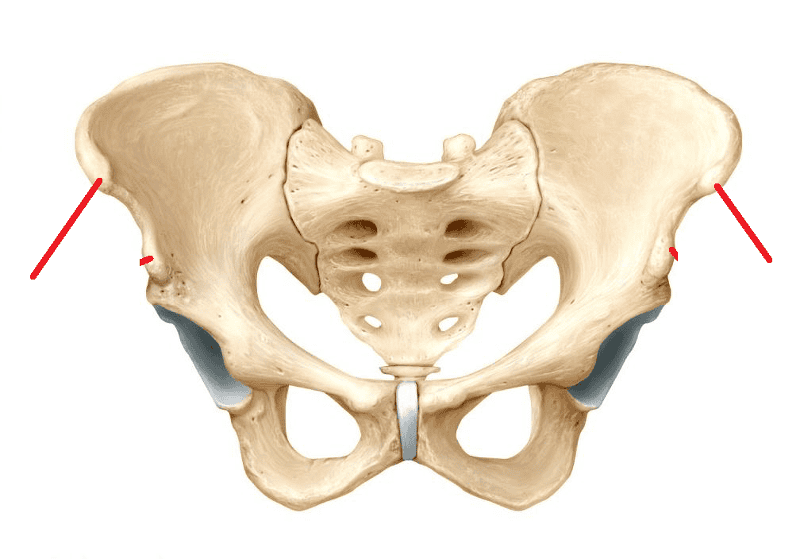

What is being pointed to?

Anterior superior iliac spine

71
card image

What is the blue part?

Anterior inferior iliac spine

72

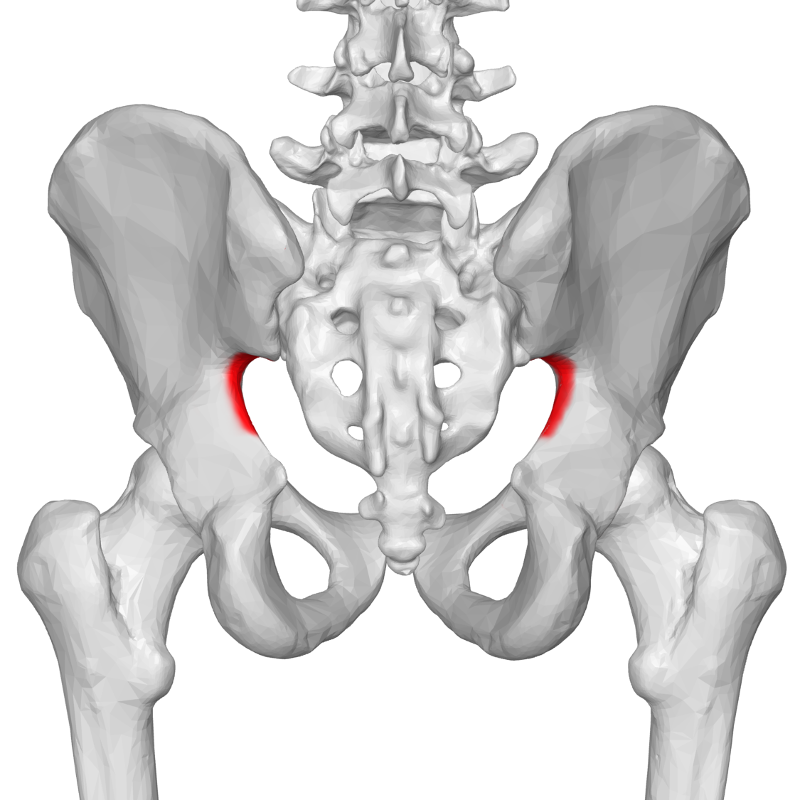

card image

What is the red area?

Great sciatic notch

73
card image

What is the blue pin in?

Ischium

74
card image

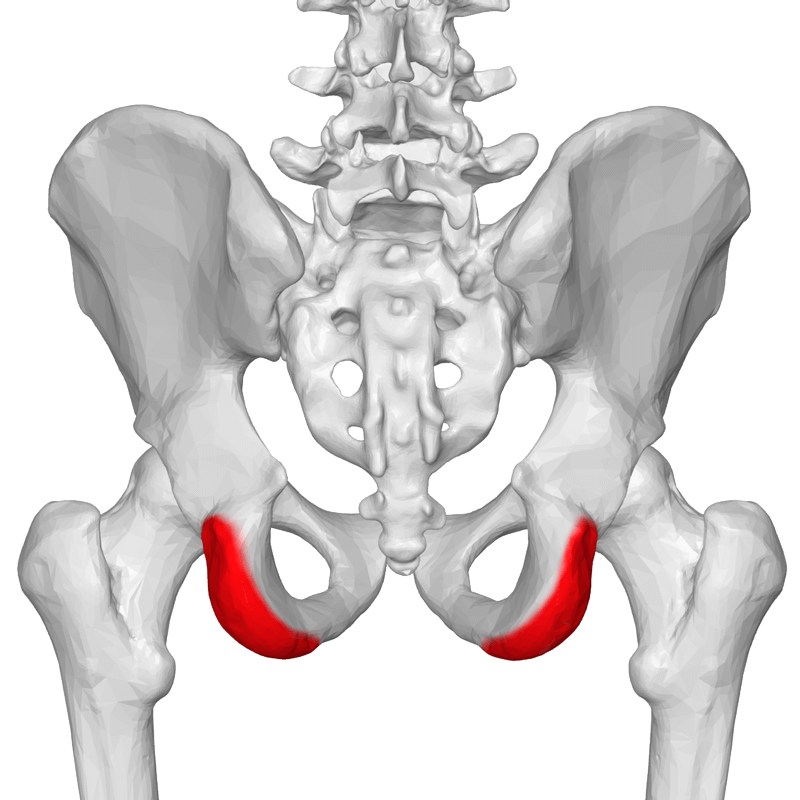

What is the red area?

Ischial tuberosity

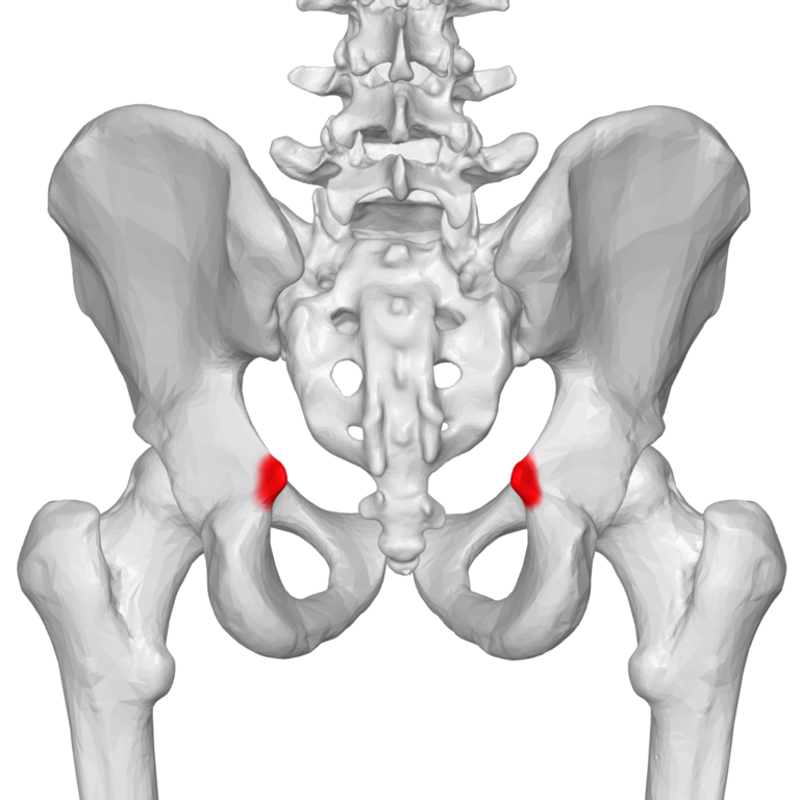

75
card image

What is the red area?

Ischial spine

76
card image

What is the green area?

Lesser sciatic notch

77
card image

What is the red area?

Pubic bone

78
card image

What is the blue area?

Pubic symphysis

79
card image

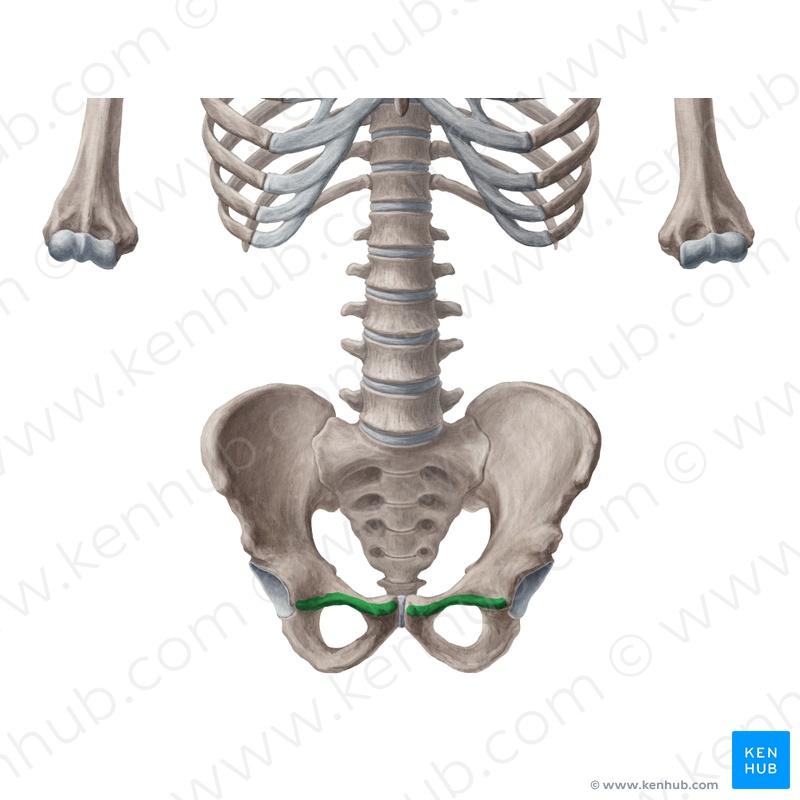

What is the green area?

Pubic crest

80
card image

What is the green area?

Pubic tubercle

81
card image

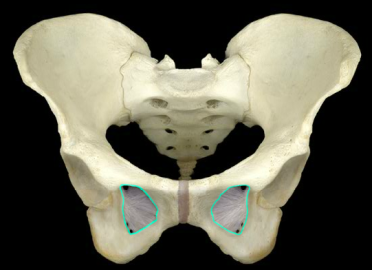

What is the highlighted area?

Obturator foramen

82

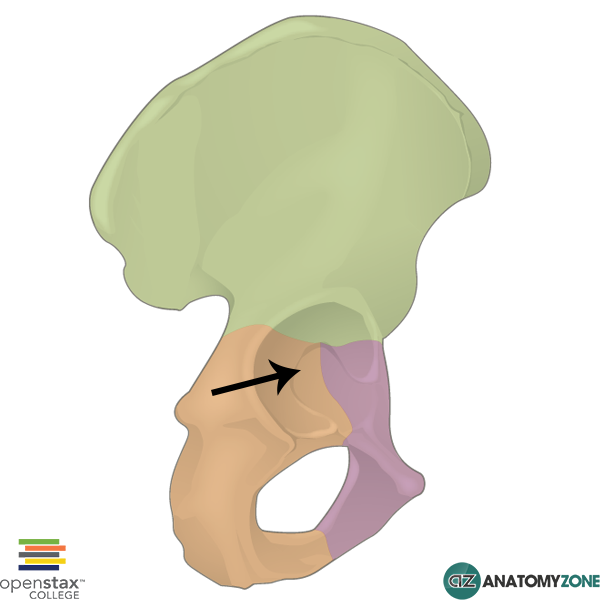

card image

What is this region?

Acetabulum

83

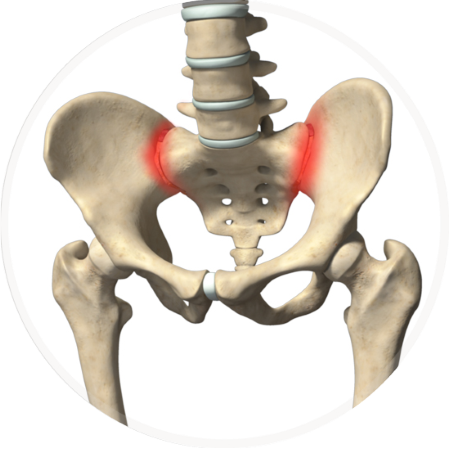

card image

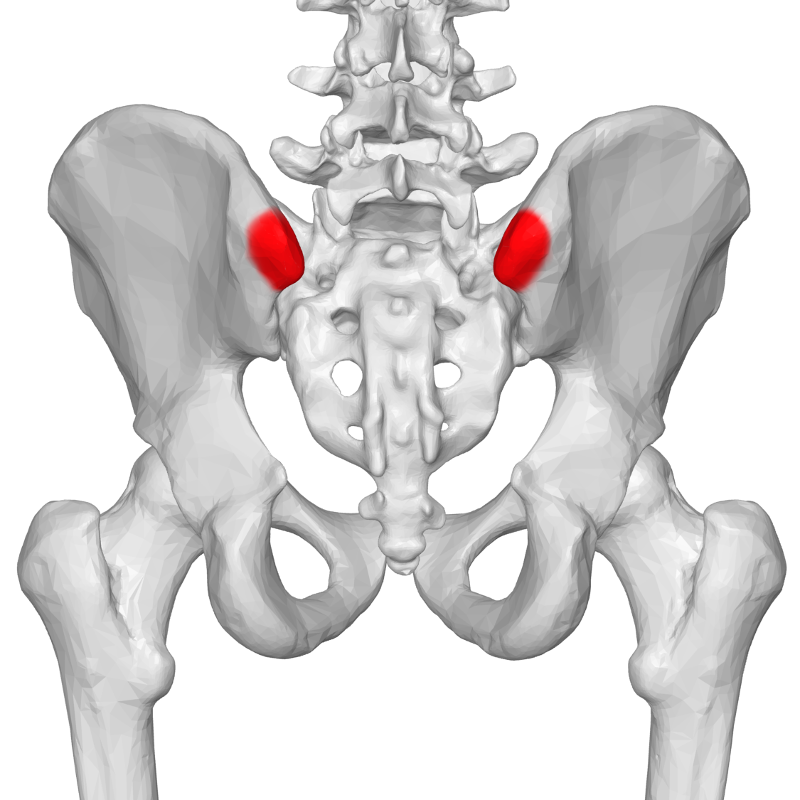

What is the red area?

Sacroiliac joint

84
card image

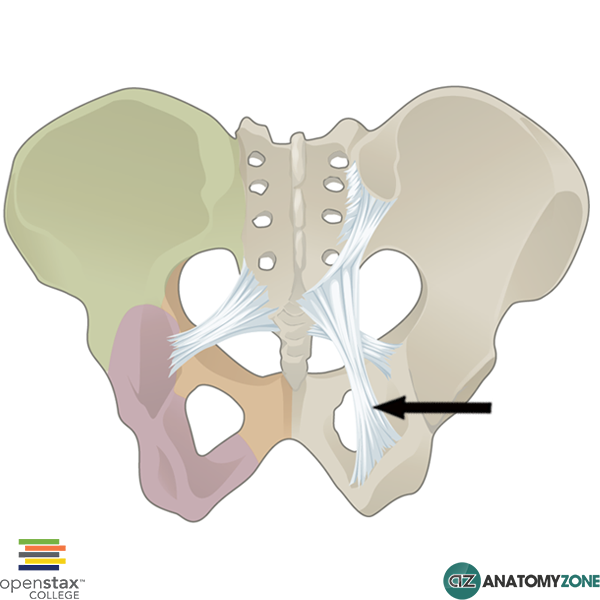

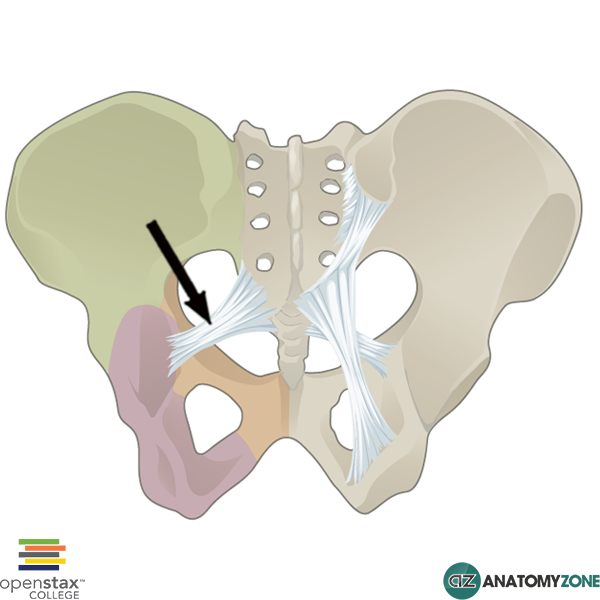

What is the arrow pointing to?

Sacrotuberous ligament

85
card image

What is the arrow pointing to?

Sacrospinous ligament

86
card image

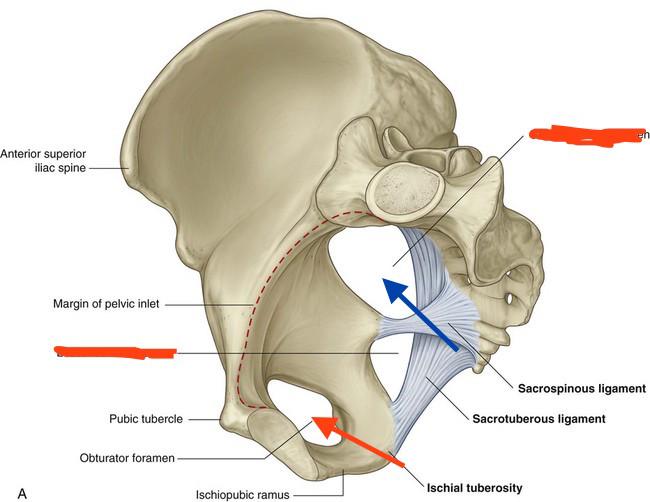

What is the blue arrow pointing to? Red arrow?

Blue arrow: Greater sciatic foramen

Red arrow: Lesser sciatic foramen

87
card image

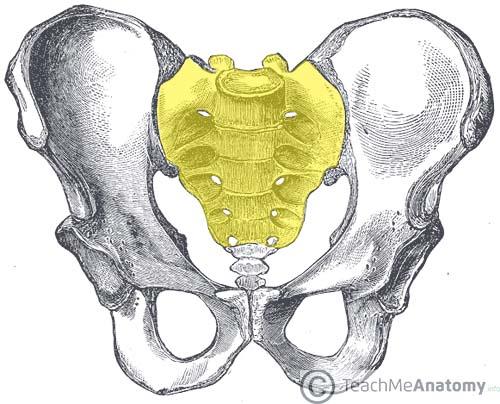

What is the yellow area?

Sacrum

88
card image

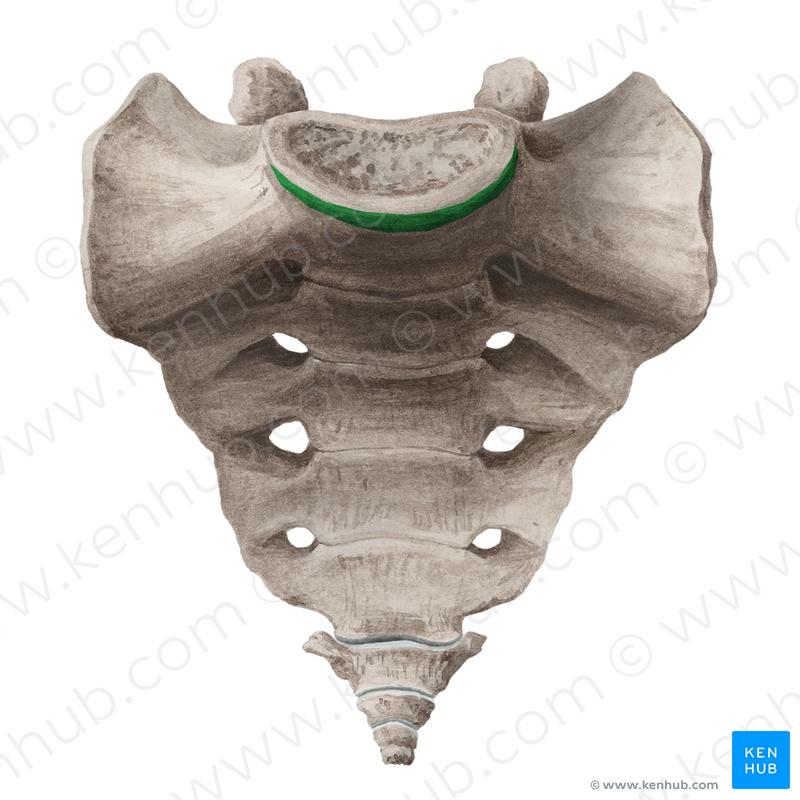

What is the green area?

Sacral promontory

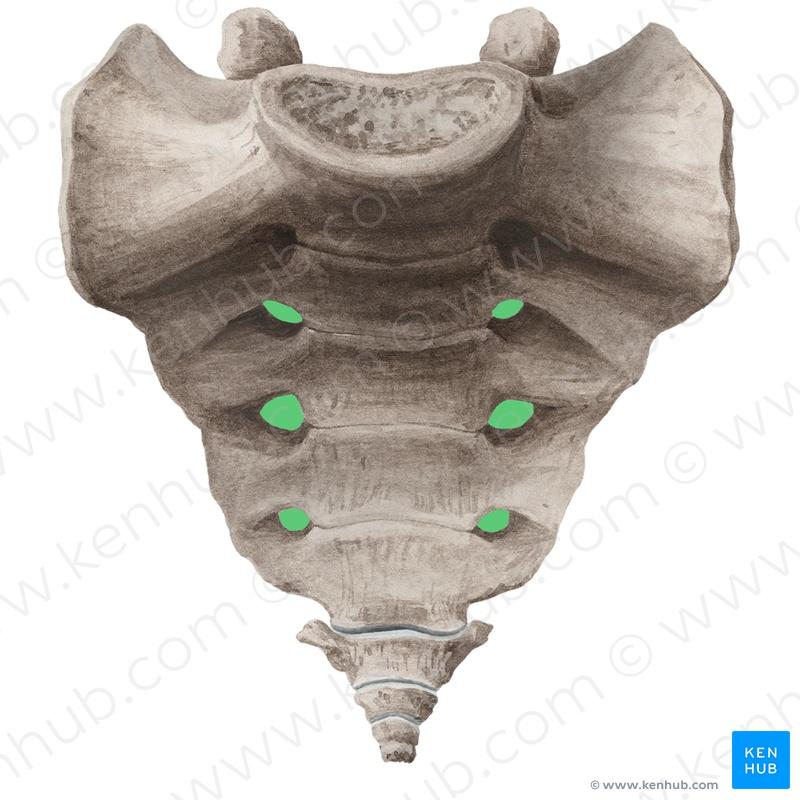

89
card image

What is the green area?

Ventral sacral foramina

90

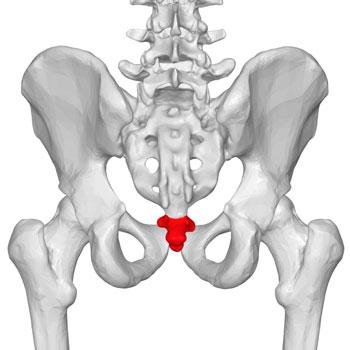

card image

What is the red area?

Coccyx

91
card image

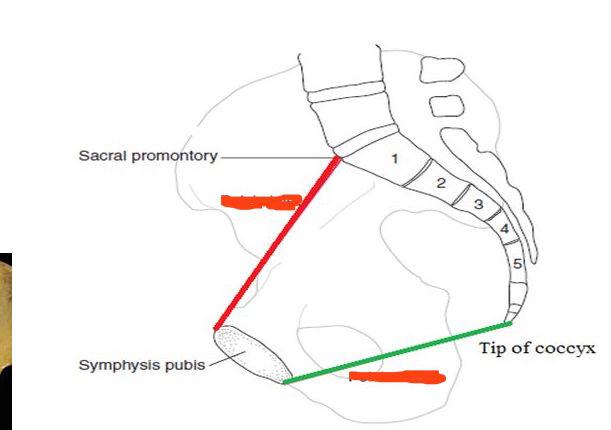

What is the red area? What is the green area?

Red: Pelvic inlet

Green: Pelvic outlet

92
card image

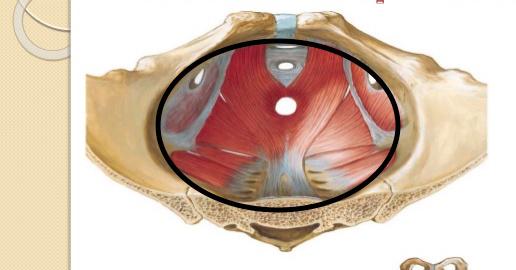

What is the area in the circle?

Pelvic diaphragm

93
card image

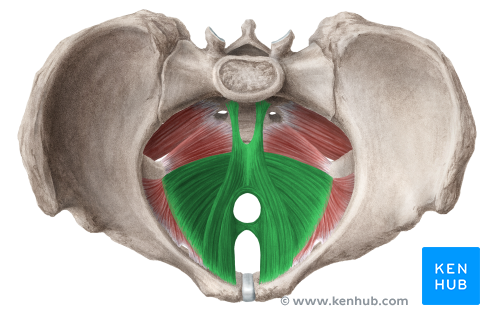

What is the green area?

Levator ani

94
card image

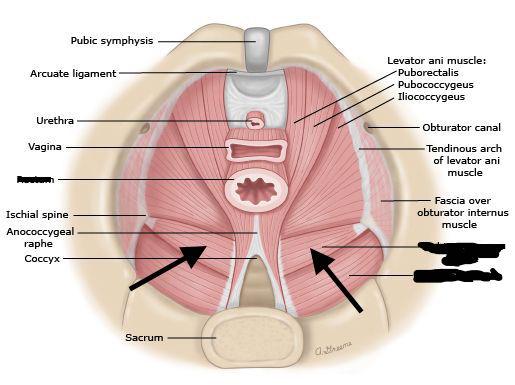

What are the black arrows pointing to?

Ischiococcygeus muscle

95
card image

What muscle is shown in this image?

Obturator internus

96
card image

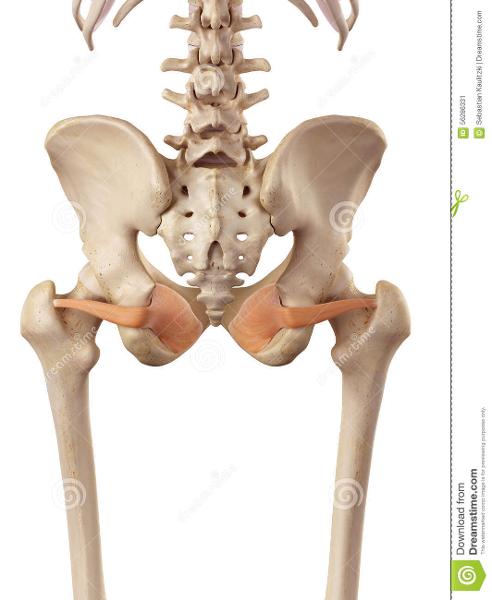

What muscle is shown in this image?

Piriformis muscle

97
card image

What is the arrow pointing to?

Rectum

98
card image

What is the probe pointing to?

Ureter

99
card image

What is the black arrow pointing to?

Urinary bladder

100
card image

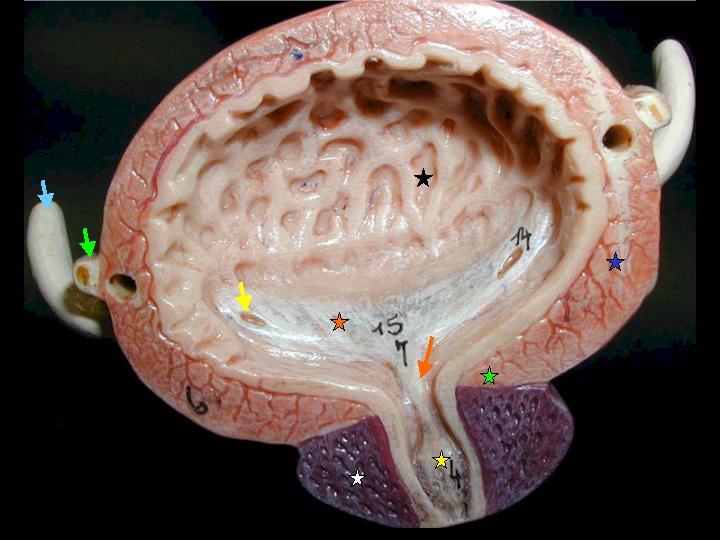

What is the orange arrow pointing to?

Ureteric orifice

101

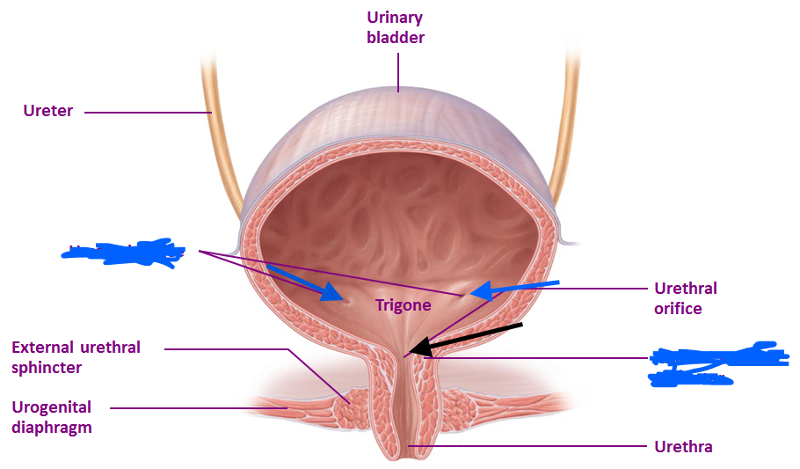

card image

What are the blue arrows pointing to?

What is the black arrow pointing to?

Blue arrow: ureteric orifice

Black arrow: internal urethral orifice

102
card image

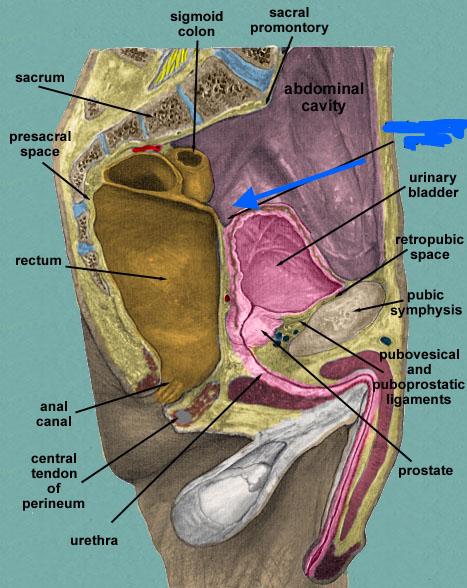

What is the arrow pointing to?

Rectovesical pouch

103
card image

What is the red area referring to?

Seminal vesicle

104
card image

What is being pointed to?

Prostate

105
card image

What is being held and pointed to?

Ductus deferens

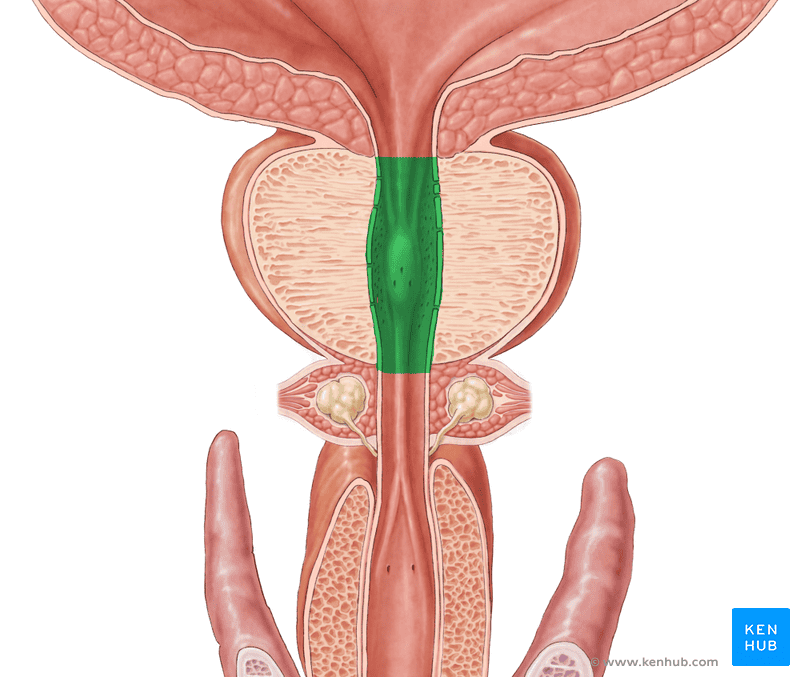

106
card image

What is the green area?

Prostatic urethra

107
card image

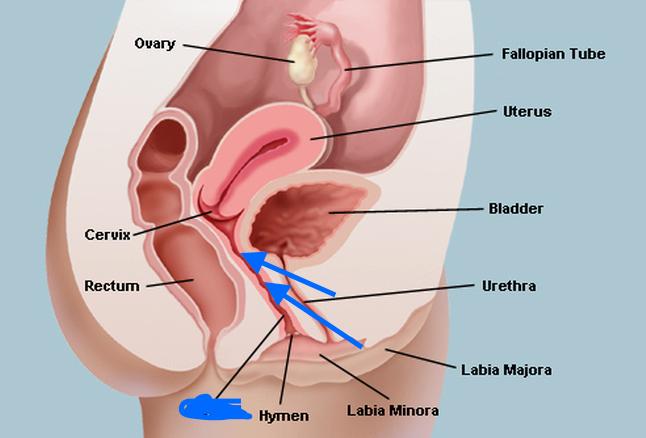

What is the arrow pointing to?

Vaginal canal

108
card image

What is the arrow pointing to?

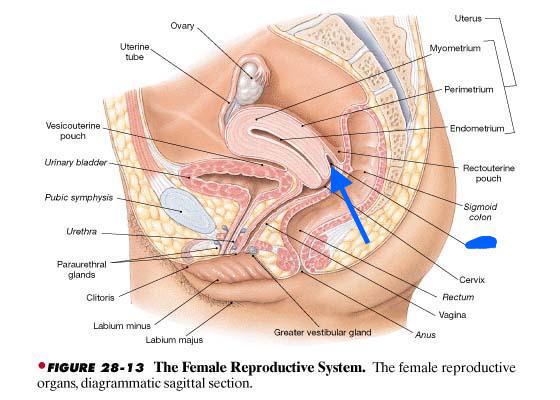

Vaginal fornix

109
card image

What is the arrow pointing to?

Uterus

110
card image

What are the arrows pointing to?

Uterine cervix

111
card image

What is the arrow pointing to?

External os of cervix

112
card image

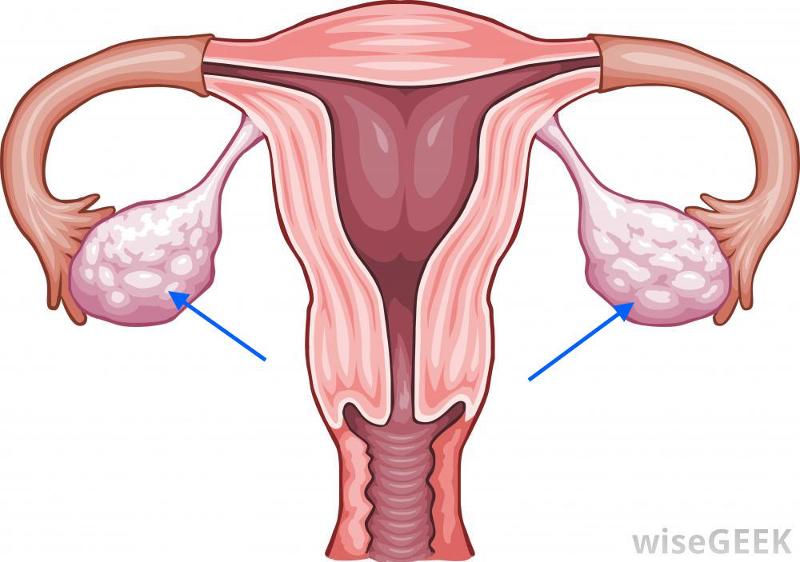

What are the arrows pointing to?

Ovaries

113
card image

What is the green area?

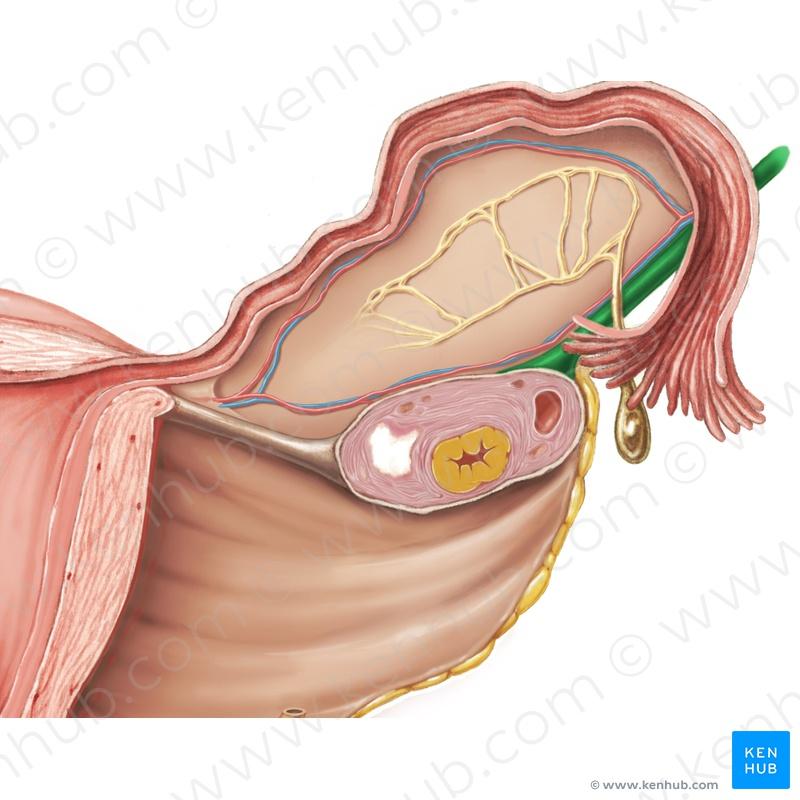

Ovarian suspensory ligament

114
card image

What is the probe pointing to?

Fimbriae (which is connected by the fallopian tube)

115
card image

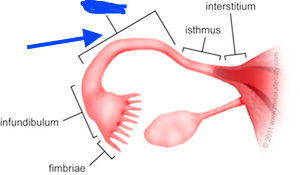

What is the bracketed area?

Ampulla

116
card image

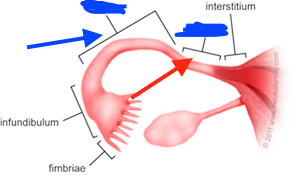

What is the red arrow pointing to?

Isthmus

117
card image

What is the black arrow pointing to?

What is the blue arrow pointing to?

Black arrow: round ligament

Blue arrow: broad ligament

118

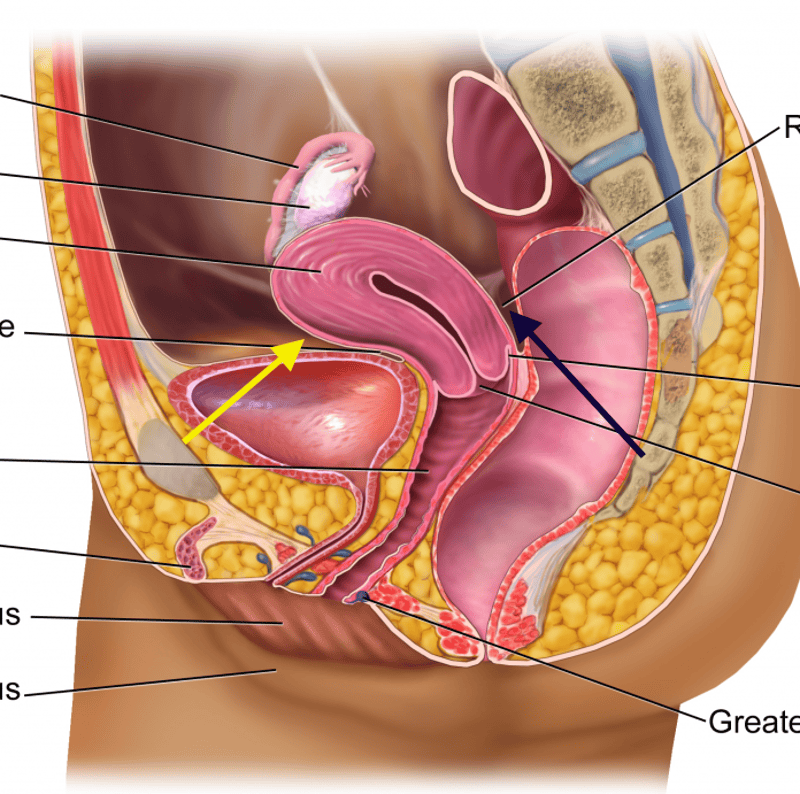

card image

What is the black arrow pointing to?

What is the yellow arrow pointing to?

Black arrow: rectouterine pouch

Yellow arrow: vesicouterine pouch
