Conduction System of the Heart and Electrocardiography (ex 31)

Helpfulness: 0
Set Details Share
Page to share:
Embed this setcancel
COPY
code changes based on your size selection
Size:
X
Show:
1
card image

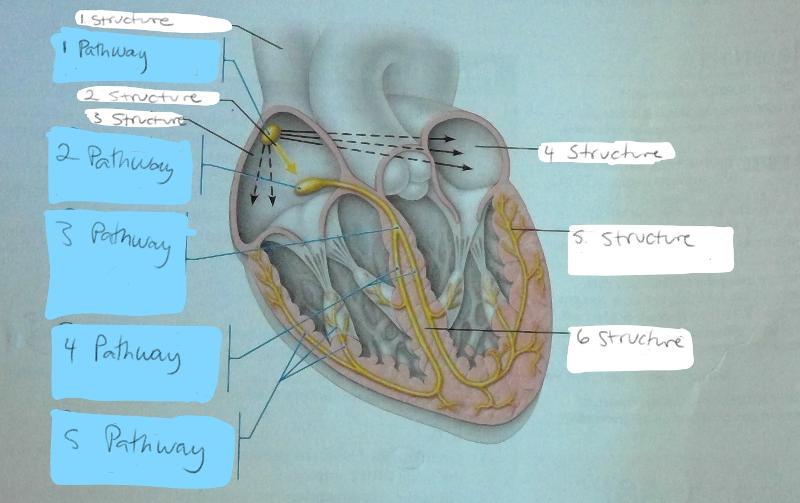

1-Structure

Superior vena cava

2
card image

2-Structure

Internodal pathway

3
card image

3-Structure

Right Atrium

4
card image

4-Structure

Left atrium

5
card image

5-Structure

Subendocardial conducting network (Purkinje fibers)

6
card image

6-Structure

Interventricular septum

7
card image

1-Pathway

Sinoatrial (SA) node generates impulses (PACEMAKER OF THE HEART)

8
card image

2-Pathway

Impulses pause at atrioventricular (AV) node for about 0.1 seconds

9
card image

3-Pathway

AV bundle conducts the impulses to the bundle branches

10
card image

4-Pathway

Bundle branches conduct the impulses through the interventricular septum

11
card image

5-Pathway

Subendocardial conducting network depolarizes the contractile cells of both ventricles

12

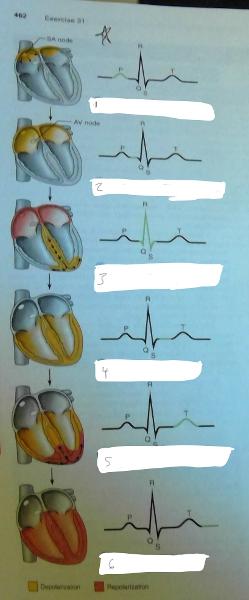

card image

1

Atrial depolarization, initiated by SA node, causes P wave

13
card image

2

Atrial depolarization is complete and the impulse is delayed at the AV node

14
card image

3

Ventricular depolarization begins at the apex and causes the QRS complex. Atrial repolarization occurs

15
card image

4

Ventricular depolarization is complete

16
card image

5

Ventricular repolarization begins at apex and causes T wave

17
card image

6

Ventricular repolarization is complete
