Microscopic Muscle Anatomy and Muscle Physiology week #10

Helpfulness: +1
Set Details Share
created 5 years ago by kriston_hanson
547 views
Gillespie Week 10
updated 5 years ago by kriston_hanson
Grade levels:
College: Second year
show moreless
Page to share:
Embed this setcancel
COPY
code changes based on your size selection
Size:
X
Show:
1

Myofibril

card image
2

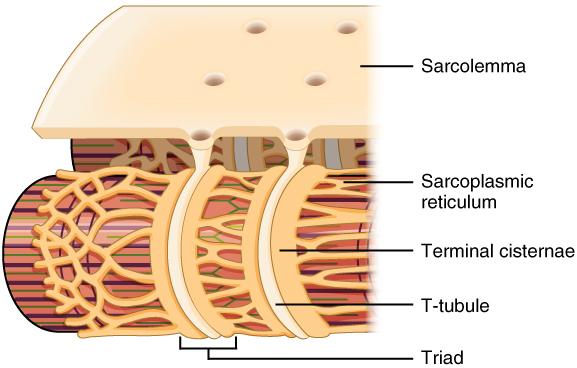

Sarcolemma

card image
3

Sarcoplasmic Reticulum

card image
4

T tubule

card image
5

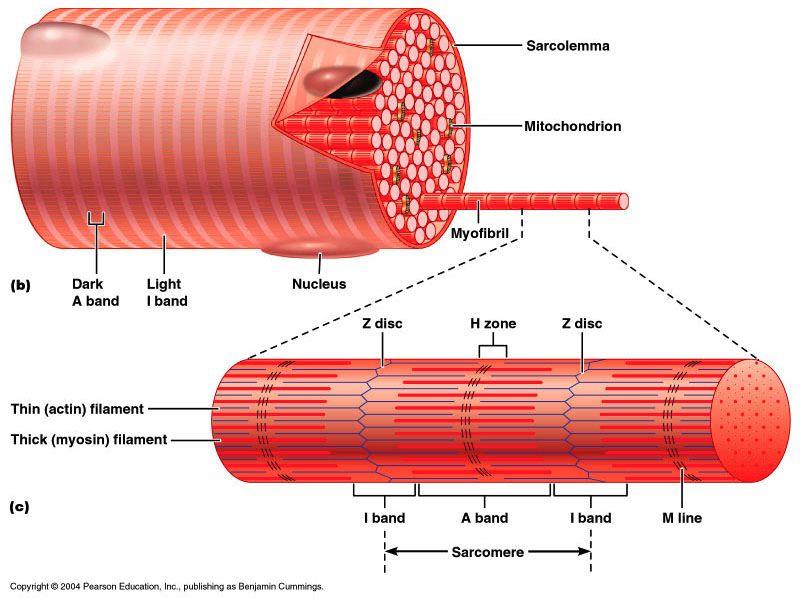

Sarcomere

card image

contractile units of the muscle

6

I band

card image
7

A band

card image
8

H Zone

card image
9

M Line

card image
10

Z Disc

card image
11

Myofilaments

card image

threadlike structures that create a Myofibril

12

Troponin (Myofilaments)

card image
13

Thick Filament-MYOSIN (Myofilaments)

card image
14

Thin Filament- ACTIN (Myofilaments)

card image
15

Tropomyosin (Myofilaments)

card image
16

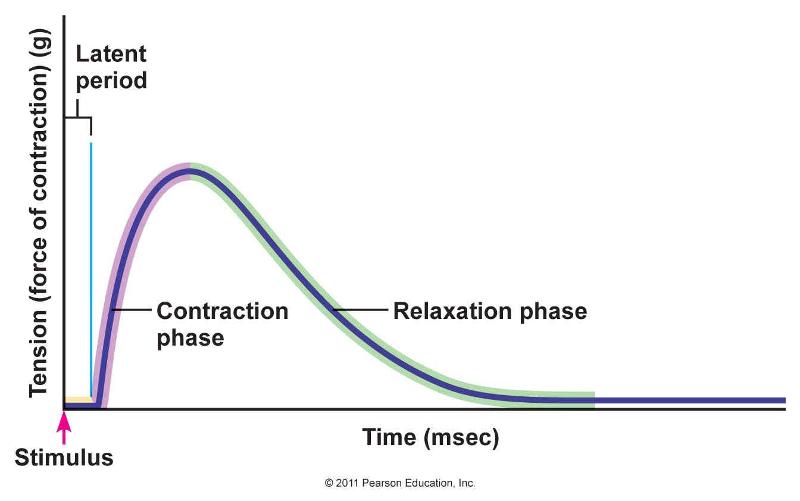

Twitch

card image

• A muscle twitch is a muscle contraction in response to a single stimulus of adequate strength.

17

Latent Period (twitch)

card image

• the sarcolemma and the T tubules depolarize

• calcium ions are released into the cytosol

• cross bridges begin to cycle but there is no visible shortening of the muscle

18

Contraction period (twitch)

card image

• myosin cross bridge cycling causes sarcomeres to shorten

19

Relaxation period (twitch)

card image

• calcium ions are actively transported back into the terminal cisternae

• cross bridge cycling decreases and ends

• muscle returns to its original length

20

Treppe

card image

• The frequency of stimulation was so slow here that relaxation was complete between contractions. Note that the curve goes down to the baseline after each contraction

• The strength of contraction did increase, because muscle contraction causes heat to build up in the muscles and muscles work better when they are warmer. Enzymes can work faster and more efficiently when a muscle is "warmed up."

21

Wave Summation

card image

an increase in the frequency with which a muscle is stimulated increases the strength of contraction. This is illustrated in (b). With rapid stimulation (so rapid that a muscle does not completely relax between successive stimulations), a muscle fiber is re-stimulated while there is still some contractile activity. As a result, there is a 'summation' of the contractile force. In addition, with rapid stimulation there isn't enough time between successive stimulations to remove all the calcium from the sarcoplasm. So, with several stimulations in rapid succession, calcium levels in the sarcoplasm increase. More calcium means more active cross-bridges and, therefore, a stronger contraction.

22

Multiple motor unit summation

• We need to recruit fewer motor units to move a light object compared to a heavy object.

23

Tetanus

occurs when a motor unit has been maximally stimulated by its motor neuron. This occurs when a muscle's motor unit is stimulated by multiple impulses at a sufficiently high frequency. Each stimulus causes a twitch. If stimuli are delivered slowly enough, the tension in the muscle will relax between successive twitches. If stimuli are delivered at high frequency the twitches will overlap resulting in tetanic contraction. When tetanized, the contracting tension in the muscle remains constant in a steady state. This is the maximal possible contraction.

24

Complete (tetanus)

card image

• When the frequency of stimulation becomes fast enough, the contractions fuse into a smooth, continuous, total contraction with no apparent relaxation.

• This state is due to a continual depositing of calcium ions in the cytosol. As a result, the binding sites on actin continually stay exposed.

25

Incomplete (tetanus)

card image

• Now the frequency of stimulation is increased to the point where the muscle exhibits even shorter contraction-relaxation cycles, but there is still some degree of relaxation after each contraction.
