Cause

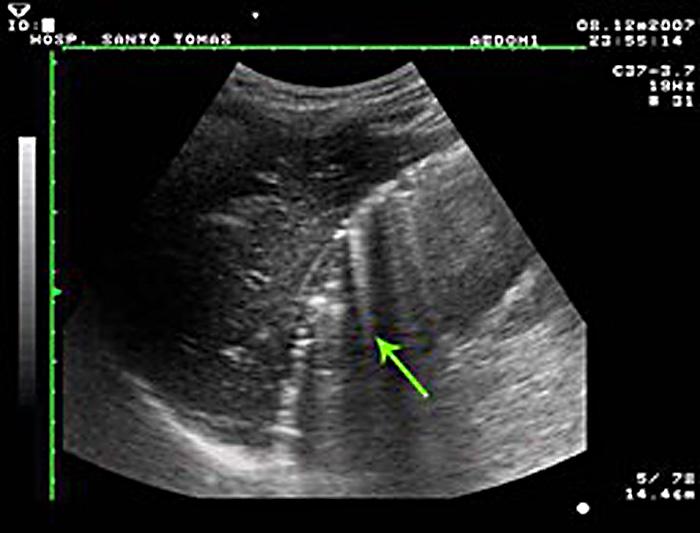

Comet Trails

Sound wave between two very closely spaced reflectors that merge and generate a series of closely spaced, discrete echoes

•Usually caused by small calcifications and metal objects like surgical pin
•Could also arise from the vibration of small highly reflective surfaces such as air bubbles
•This happens more often when the reflectors are located in a medium with high propagation speed.

2
card image

Description

Comet Trails

•appears distal to the highly reflective structure as a single solid hyperechoic (bright white) “tail” and is parallel to the sound beams main axis

•the complexity of the pattern depends on size, shape, and composition of the reflector, also the scan orientation and distance from the transducer

•usually in otherwise echo free areas on the image

3
card image

Benefit

Comet Trails

•used in ruling out pneumothorax

•If a pneumothorax is present, air within the pleural space hinders the propagation of ultrasound waves, thereby preventing the formation of comet tail artifacts

4
card image

Problems

Comet Trails

•significant loss of energy so the sound is not able to reach a far depth

•not able to view underneath reflector because of tail

5
card image

Assumptions

Comet Trail

1. Sound travels in a straight line.
2. Sound travels directly to a reflector and back

6
card image

Cause

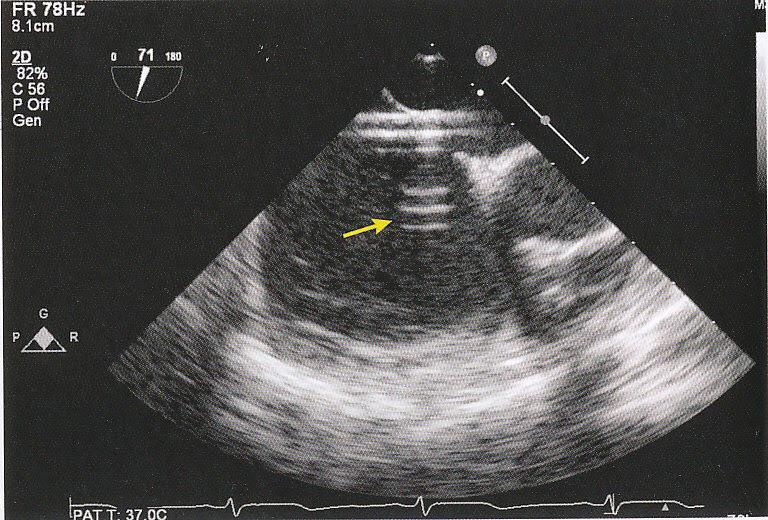

Reverberation

•Caused by bouncing back and forth of the sound wave between two strong reflectors that are parallel to the ultrasound beam

•Reflections “ping pong” between structure and transducer

7
card image

Description

Reverberation

•Resembles a ladder or venetian blind

•Multiple, equally spaced echoes

•Located at ever increasing depths, each echo is deeper than the next

•1st and 2nd reflections closest to transducer are real, the multiple reflections displayed beneath the real reflector are artifacts

8
card image

Assumption

Reverberation

1. Sound travels in a straight line.
2. Sound travels directly to a reflector and back

9
card image

Cause

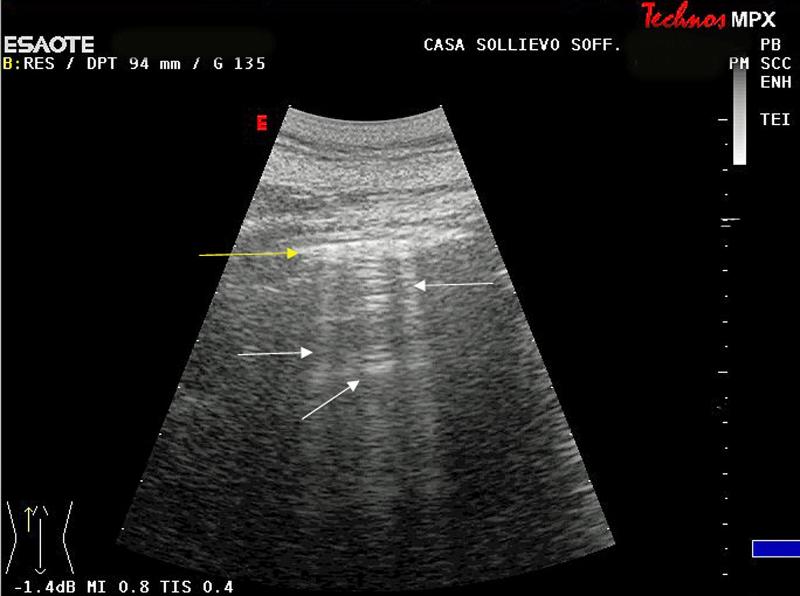

Ring Down

created from the vibrations of fluid trapped within air bubbles

10
card image

Description

Ring Down

•Appear as hyperechoic (bright white) parallel bands that reach to the bottom of the image and represent the continuous ringing transmitted back to the crystal.

•displayed as fuzzy gray echoes below each hyperechoic reverberation echo

11
card image

Assumptions

Ring Down

1. Sound travels in a straight line.
2. Sound travels directly to a reflector and back

12
card image

Cause

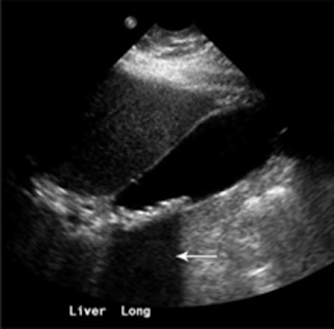

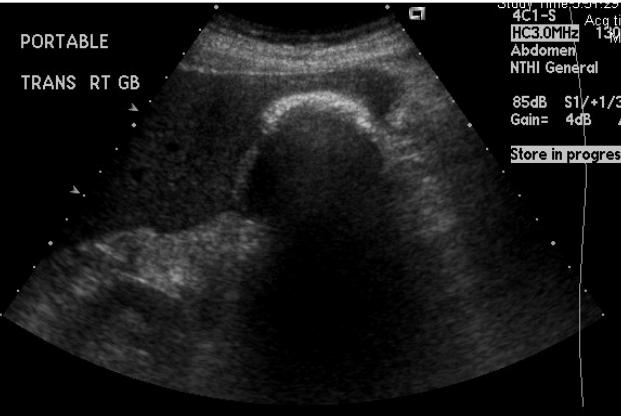

Shadowing

strongly attenuating structures lie in the path of the ultrasound beam

13
card image

Description

Shadowing

Distal echoes weaker, appear darker, like a shadow

14
card image

Hindrance

Shadowing

Prevents visualization from true anatomy on scan by covering anatomy with an anechoic shadow

15
card image

Helpful

Shadowing

Is often useful to determine the nature of masses and structure

16
card image

Assumption

Shadowing

Characteristics of the tissue creating the reflection determine the strength of the reflection.

17
card image

Cause

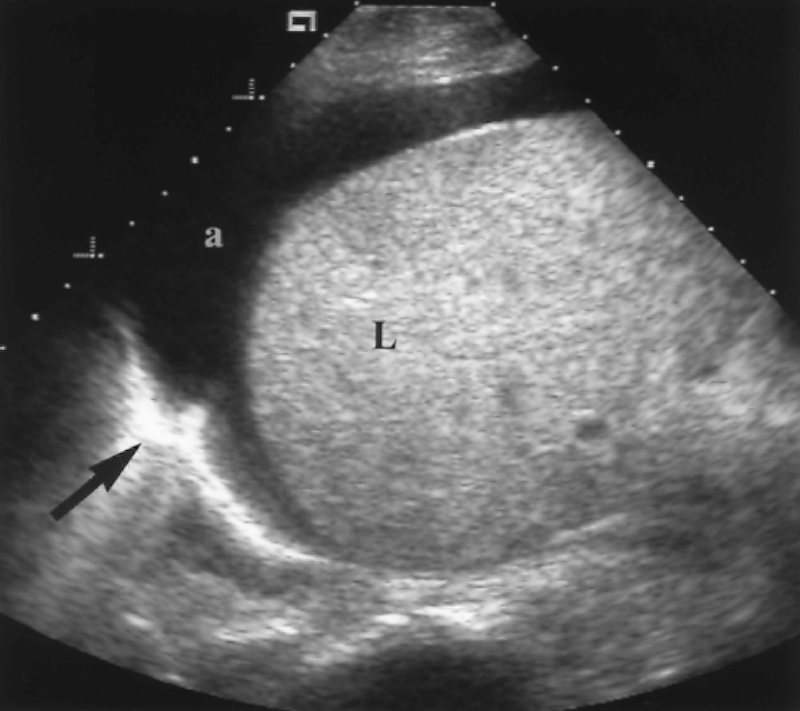

Dirty Shadowing

occurs at the tissue-gas interface. When sound hits gas it scatters.

18
card image

Appearance

Dirty Shadowing

very cloudy, dirty appearance

19
card image

Assumptions

Dirty Shadowing

1. Sound travels in a straight line.
2. Sound travels directly to a reflector and back

20
card image

Cause

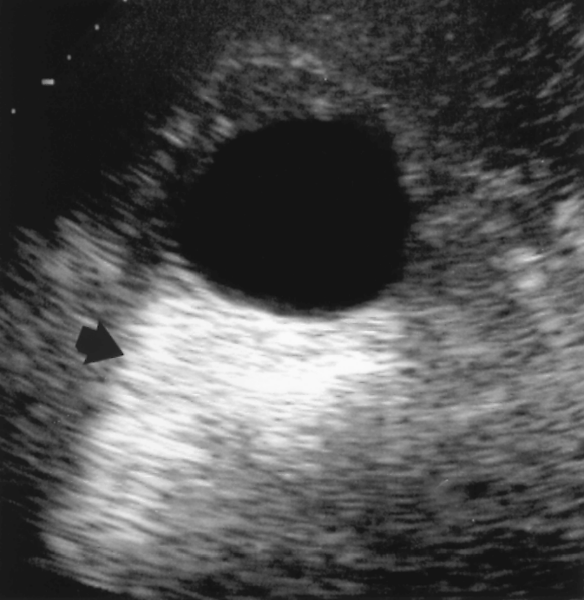

Enhancement

appears as hyperechoic regions distal to weakly attenuating structures

21
card image

Assuptions

Enhancement

Characteristics of the tissue creating the reflection determine the strength of the reflection.

22
card image

Benefit

Enhancement

can provide confirmation of fluid component within structure

23
card image

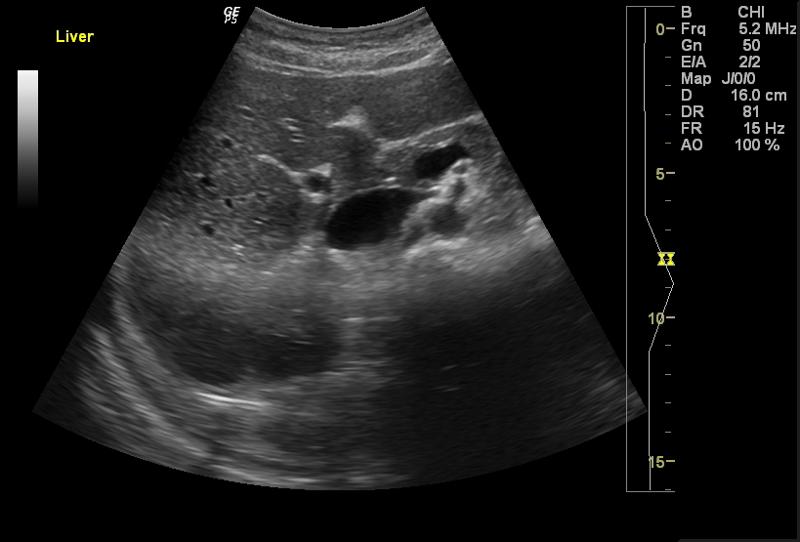

Cause

Focal Enhancement

band occurs at the center of the sound beam where the intensity is the strongest.

24
card image

Assumption

Focal Enhancement

Characteristics of the tissue creating the reflection determine the strength of the reflection.

25
card image

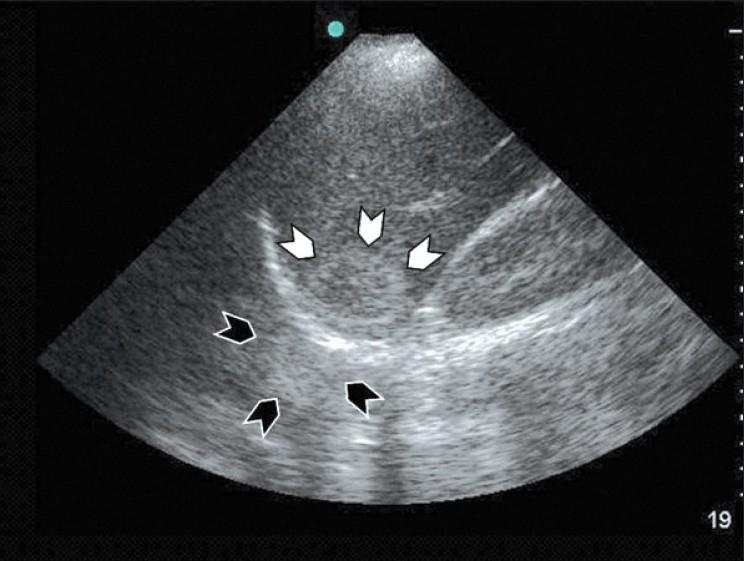

Cause

Rver

sound beam hits a very reflective surface and as they are heading back

26
card image

Assumption

Mirror image

2. Sound travels directly to a reflector and back

27
card image

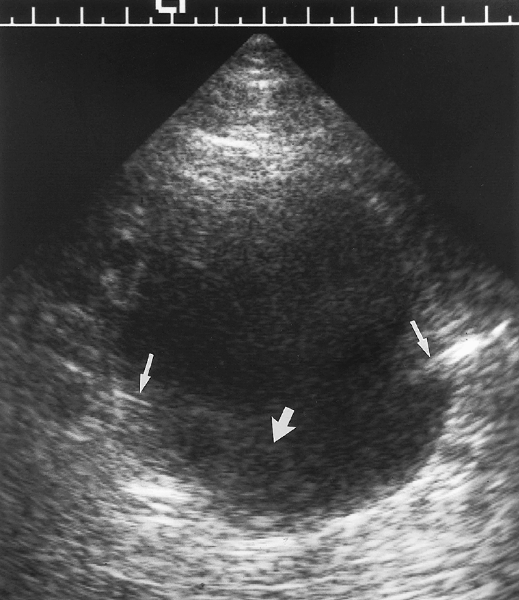

Cause

Lobes

beams that travel in a direction other than the direction the main beam is traveling

28
card image

Assumption

Lobes

Reflections occur only from structures positioned in the beam’s main axis.

29
card image

Cause

Speed Error

when the beam travels through tissue faster than 1540 m/s

30
card image

Assumption

Speed error

3. Sound travels 1540 m/s in soft tissue
