Quality Assurance

routine, periodic evaluation of an ultrasound system to quarantee optimal images.

2

Four requirements for a quality assuance program are:

1. assessment of system componenets
2. repairs
3. preventiative maintenance
4. record keeping

3

Goals of Quality assurance

proper operation of equipment
detect gradual changes
minimize downtime
reduce non-diagnostic exams
reduce repeat scans

4

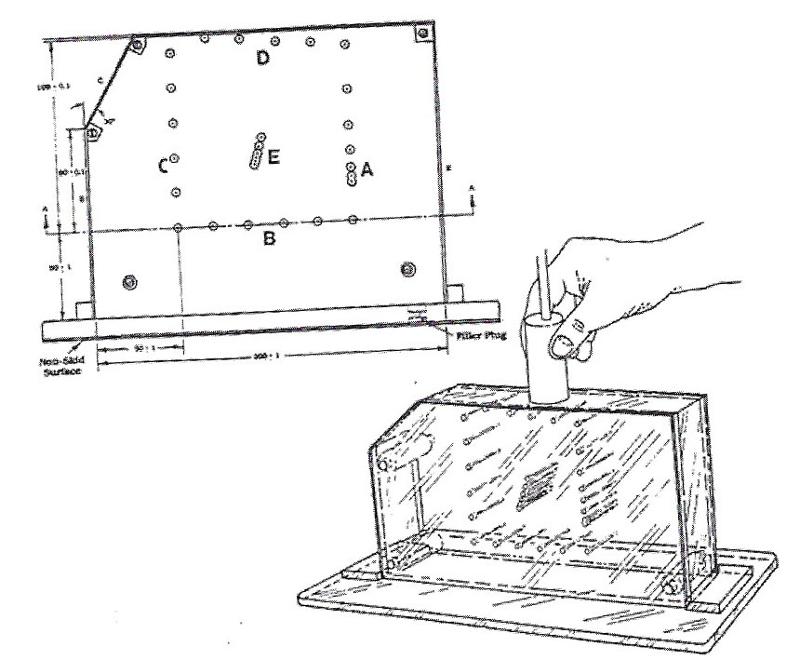

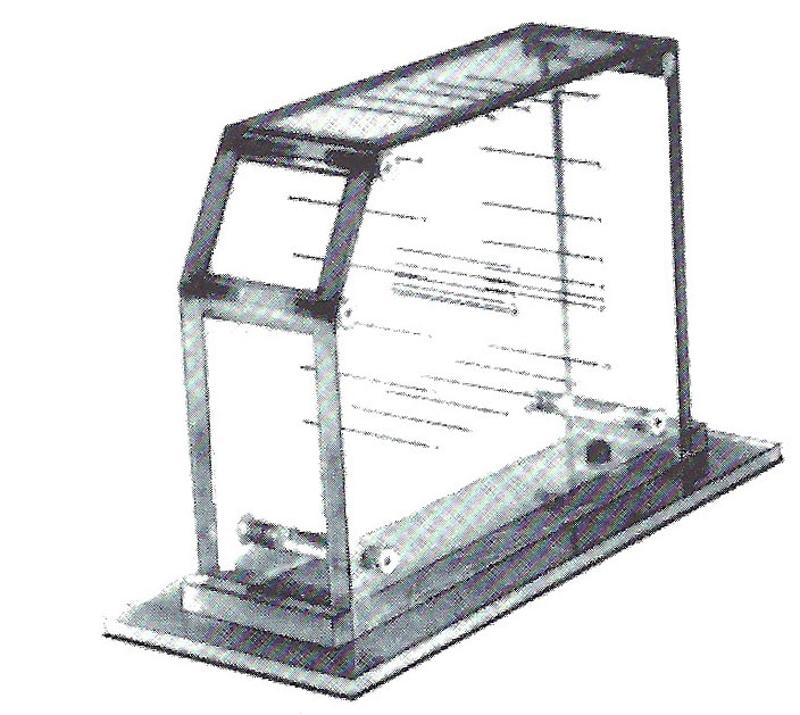

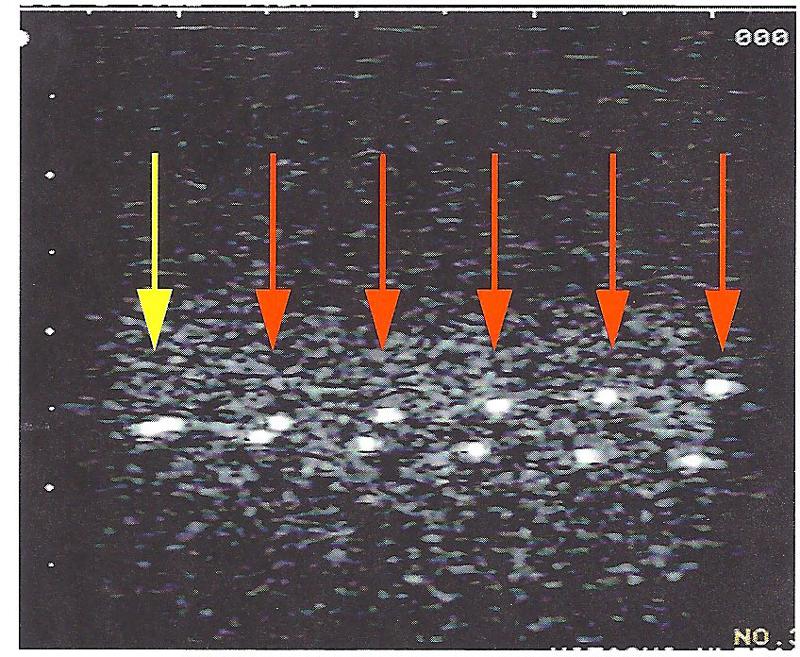

AIUM 100 mm Test Object

card image

fluid filled tank containing stainles steel pins or plastic strings

5

What properties of the AIUM 100 mm Test object makes a good evaluation test

the speed of sound is identical to that of soft tissue.

6

One draw back of the AIUM 100 mm Test object

it does not have the same attenuation properties of soft tissue so grayscale can not be evaluated.

7

What does the AIUM 100 mm Test object evaluate?

card image

Axial Resolution

Lateral Resolution

Electronic caliper accuracy

Dead zone

8

How is Axial Resolution evaluated?

when the pins in the test object are parallel to the sound beam's main axis.

9

How is Lateral Resolution evaluated?

when the pins in the test object are perpendicular to the sound beam's main axis.

10

How is Electronic caliper accuracy evaluated?

by comparing the distances between reflections on the display with the actual distances in the test object.

11

How is Dead zone evaluated?

by scanning the pins located as the top of the test object, very close to the transducer.

12

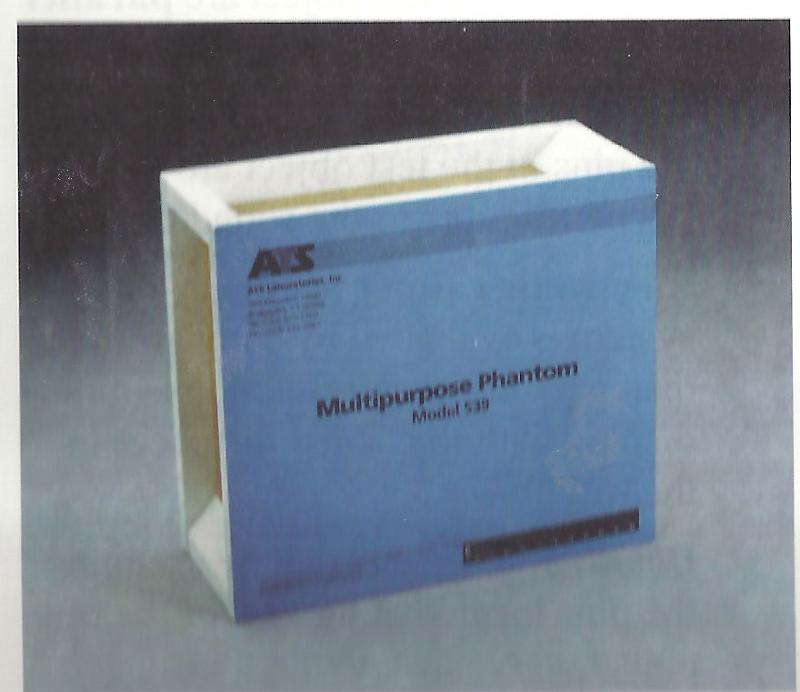

Tissue Equivalent Phantom

card image

has ultrasonic features imilar to soft tissue.

speed of sound
attenuation
scattering characteristics
echogenicity

13

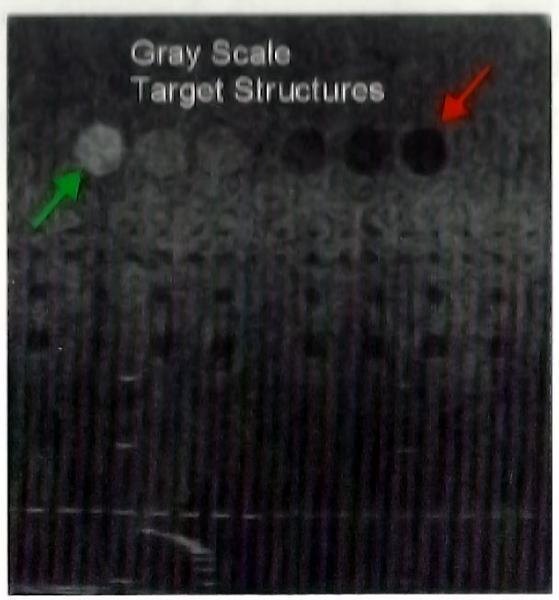

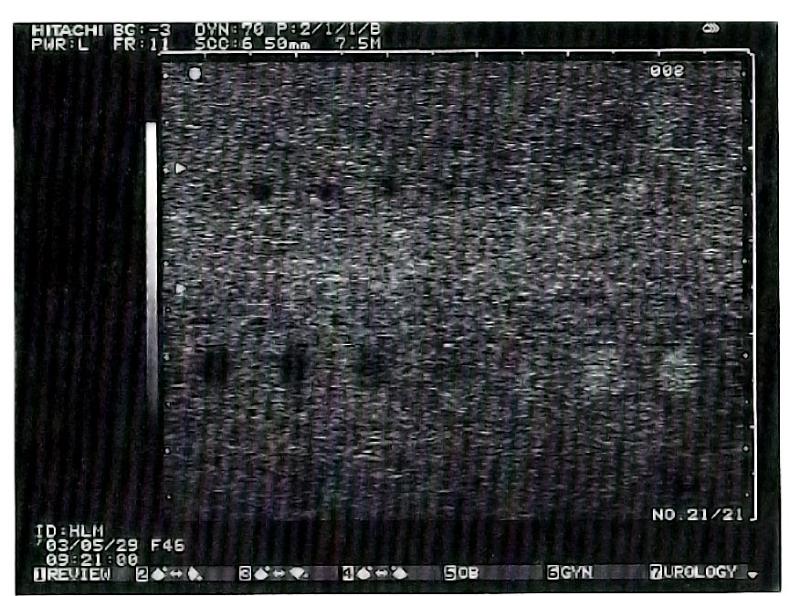

How is grayscale evaluatied with the Tissue Equivalent Phantom?

card image

it contains small scatterers that resemble soft tissue. Structures that mimic hollow cysts and solid masses are imbedded in the phantom.

14

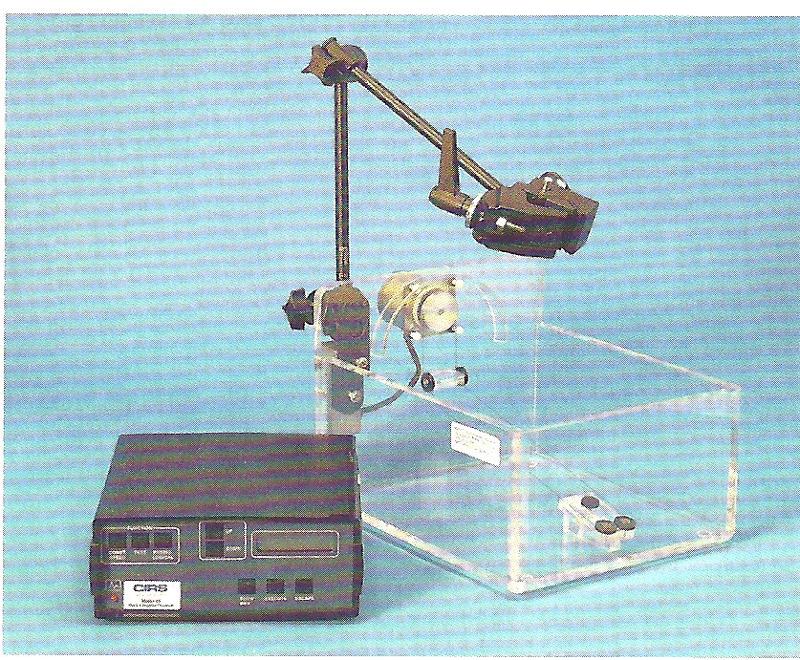

Doppler Phantom

card image

device of choice for evaluating doppler systems.

moddern doppler phantoms include a circulation pump which propels fluid through vessels embedded in a tissue equivalent phantom.

older versions have vibrating strings and moving belts

15

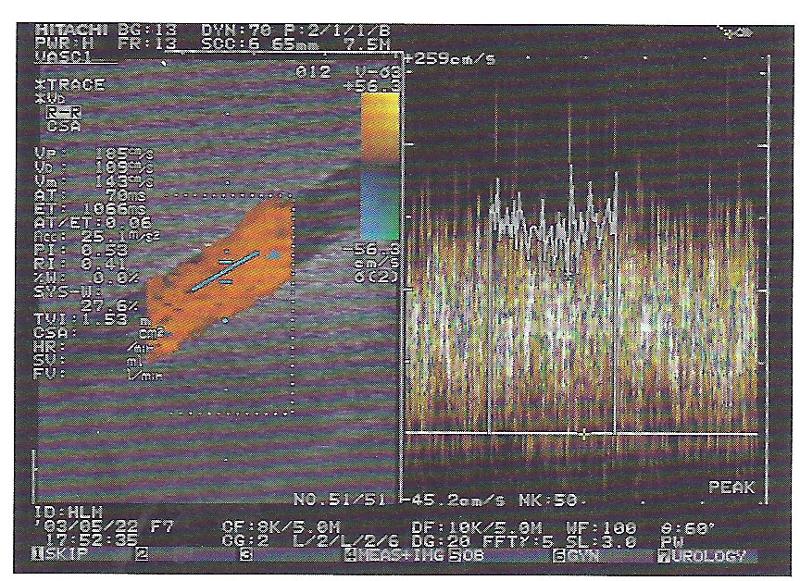

What does a Doppler Phantom evaluates?

card image

pulsed mode
continuous wave mode
color mode
power mode

16

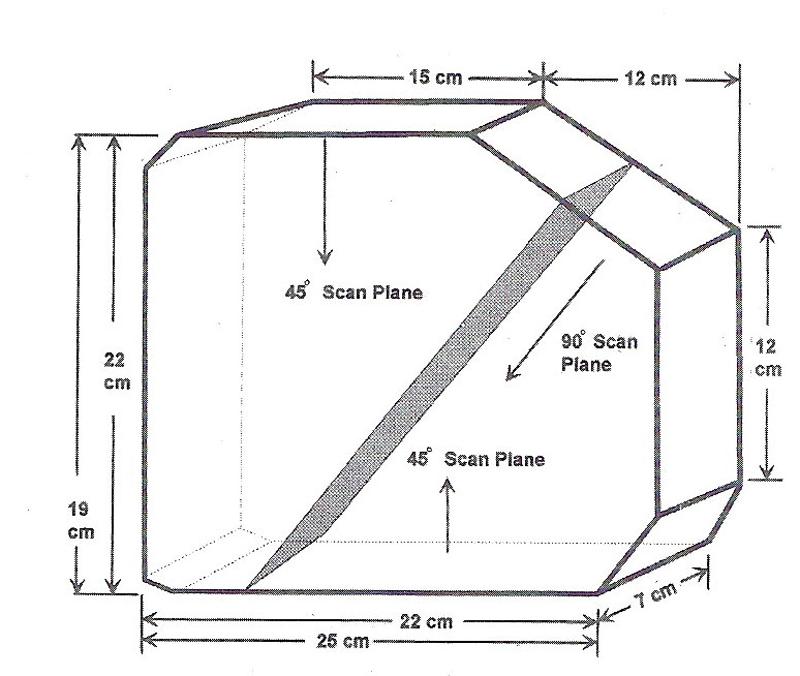

Slice Thickness Phantom

card image

assesses the slice thickness and its effects upon image accuracy.

contains a diffuse scattering plane at an angle to the incident sound beam,

17

Minimum Sensitivity evaluation

assesses the weakest echo signal that is accurately displayed.- low level echos in the far field

setting the TGC flat, then increasing gain from the minimum value to the gain when a deep rod in the test object is displayed.

the setting should not vary from on routine evaluation to the next.

18

Normal Sensitivity

all the pins, solid masses and cystic structures in the test phantom are displayed.

Ouput power, TGC, and amplification are adjusted to establish normal sensitivity.

19

Maximum Sensitivity

evaluated with the the output power and amplification of the system set to maximum practical level

the setting should not vary from on routine evaluation to the next.

20

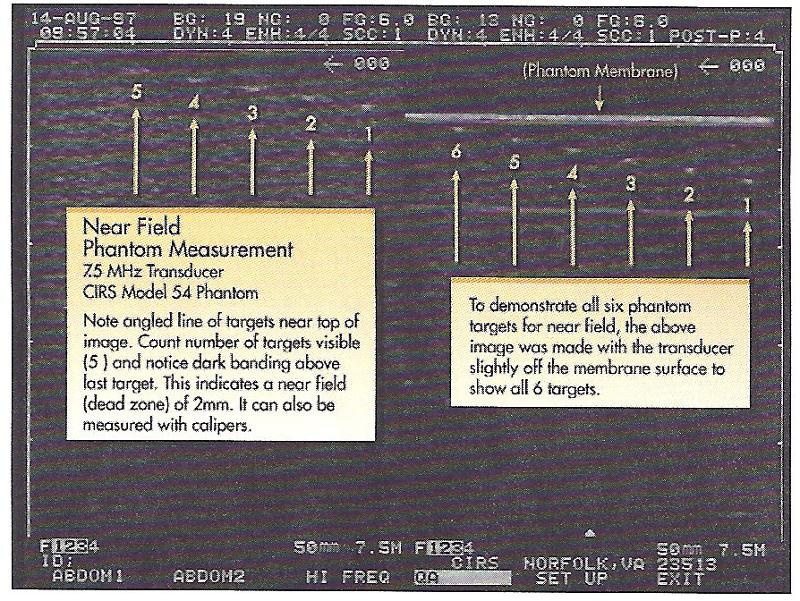

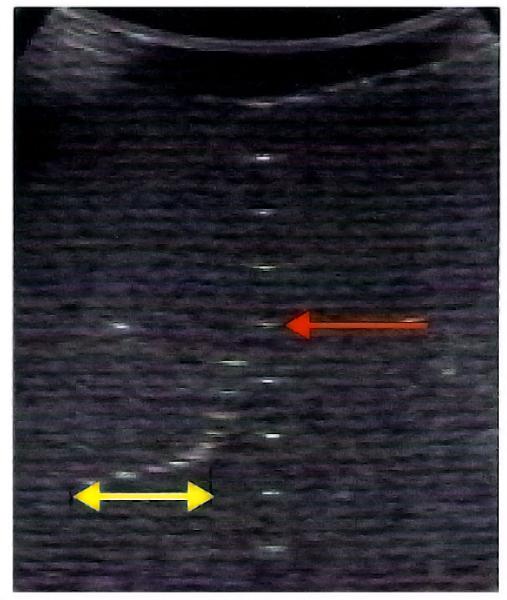

Dead Zone

card image

the region close to the transducer where images are inacurate. It extends from the transducer to the shallowest depth from which meaningful reflections appear.

21

How is the dead zone evaluted

with the shallowest pins in the test object

22

Higher frequency transducers will have a thinner or thicker dead zones?

card image

thinner

23

WHat does an increasingly deeper dead zone indicate?

cracked crystal
detached backing material
longer pulse duration

24

Registration Accuracy

the ability of the sytem to place reflects in proper positions from different orientations

25

Depth Calibration

Range Accuracy

describes the system's accuracy in placing reflectors at correct depths

26
