Veins and arteries

Helpfulness: 0
Set Details Share
created 5 months ago by Jjjhhgg
36 views
show moreless
Page to share:
Embed this setcancel
COPY
code changes based on your size selection
Size:
X
Show:
1
card image

A

Aorta (Anterior Surface View)

2
card image

B

Pulmonary Artery (Anterior Surface View)

3
card image

C

Pulmonary Vein (Anterior Surface View)

4
card image

D

Left Atrium (Anterior Surface View)

5
card image

E

Left Coronary Artery (Anterior Surface View)

6
card image

F

Left Ventricle (Anterior Surface View)

7
card image

G

Right Ventricle (Anterior Surface View)

8
card image

H

Inferior Vena Cava (Anterior Surface View)

9
card image

I

Right Coronary Artery (Anterior Surface View)

10
card image

J

Right Atrium (Anterior Surface View)

11
card image

K

Superior Vena Cava (Anterior Surface View)

12
card image

A

Aorta (Posterior Surface View)

13
card image

B

Pulmonary Artery (Posterior Surface View)

14
card image

C

Superior Vena Cava (Posterior Surface View)

15
card image

D

Pulmonary Vein (Posterior Surface View)

16
card image

E

Right Atrium (Posterior Surface View)

17
card image

F

Left Atrium (Posterior Surface View)

18
card image

G

Left Ventricle (Posterior Surface View)

19
card image

H

Right Ventricle (Posterior Surface View)

20
card image

I

Right Coronary Artery (Posterior Surface View)

21
card image

A

Aorta (Frontal Section)

22
card image

B

Pulmonary Artery (Frontal Section)

23
card image

C

Superior Vena Cava (Frontal Section)

24
card image

D

Pulmonary Vein (Frontal Section)

25
card image

E

Epicardium (Frontal Section)

26
card image

F

Myocardium (Frontal Section)

27
card image

G

Endocardium (Frontal Section)

28
card image

H

Septum (Frontal Section)

29
card image

I

Papillary Muscle (Frontal Section)

30
card image

J

Chordae Tendinae (Frontal Section)

31
card image

K

Bicuspid (Frontal Section)

32
card image

L

Tricuspid (Frontal Section)

33
card image

M

Inferior Vena Cava (Frontal Section)

34
card image

N

Right Atrium (Frontal Section)

35
card image

O

Left Atrium (Frontal Section)

36
card image

P

Left Ventricle (Frontal Section)

37
card image

Q

Right Ventricle

38
card image

R

Aortic Valve (Frontal Section)

39
card image

S

Pulmonary Valve (Frontal Section)

40
card image

A

Common Carotid Artery (Full Anterior)1

41
card image

B

Common Carotid Artery (Full Anterior)2

42
card image

C

Subclavian Artery (Full Anterior)

43
card image

D

Aortic Arch(Full Anterior)

44
card image

E

Subclavian Artery (Full Anterior)

45
card image

F

Brachial Artery (Full Anterior)

46
card image

G

Radial Artery (Full Anterior)

47
card image

H

Ulnar Artery (Full Anterior)

48
card image

I

Abdominal Aorta (Full Anterior)

49
card image

J

Iliac Artery (Full Anterior)

50
card image

K

Femoral Artery (Full Anterior)

51
card image

L

Tibial Artery (Full Anterior)

52
card image

A

Axillary Artery (Right of Head and Neck)

53
card image

B

Brachiocephalic Artery (Right of Head and Neck)

54
card image

C

Common Carotid Artery (Right of Head and Neck)1

55
card image

D

Common Carotid Artery (Right of Head and Neck)2

56
card image

E

Superficial Temporal Artery (Right of Head and Neck)

57
card image

A

Subclavian Artery (Anterior Upper Limb)

58
card image

B

Axillary Artery (Anterior Upper Limb)

59
card image

C

Radial Artery (Anterior Upper Limb)

60
card image

D

Ulnar Artery (Anterior Upper Limb)

61
card image

E

Superficial Palmar Artery (Anterior Upper Limb)

62
card image

A

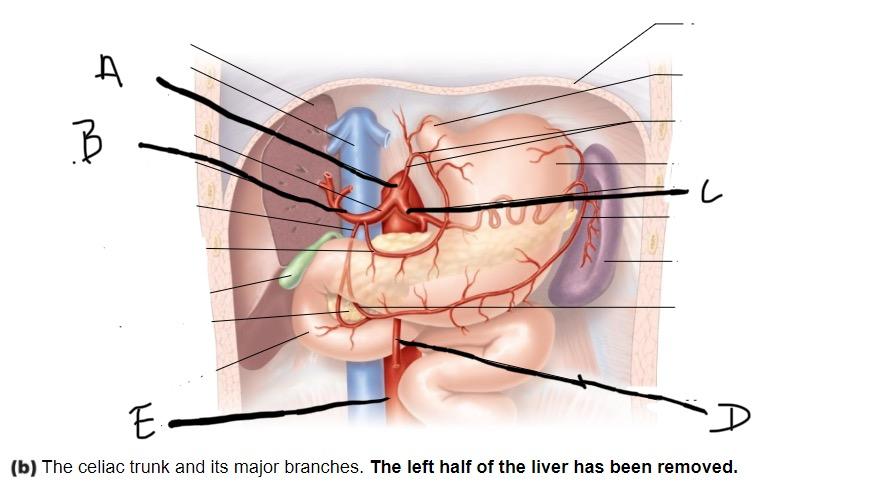

Celiac Trunk (Celiac Trunk and It's Major Branches,Left Half of Liver Removed)

63
card image

B

Hepatic Artery (Celiac Trunk and It's Major Branches,Left Half of Liver Removed)

64
card image

C

Splenic Artery (Celiac Trunk and It's Major Branches,Left Half of Liver Removed)

65
card image

D

Superior Mesenteric Artery (Celiac Trunk and It's Major Branches,Left Half of Liver Removed)

66
card image

E

Abdominal Aorta (Celiac Trunk and It's Major Branches,Left Half of Liver Removed)

67
card image

A

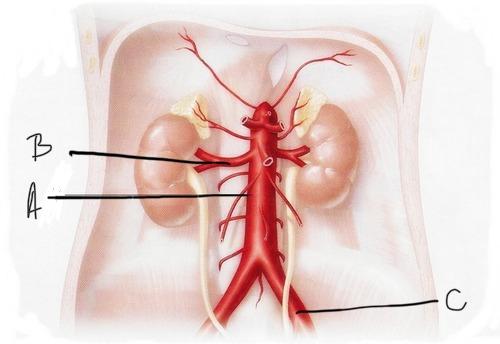

Abdominal Aorta (Major Branches of Abdominal Aorta)

68
card image

B

Renal Artery (Major Branches of Abdominal Aorta)

69
card image

C

Iliac Artery (Major Branches of Abdominal Aorta)

70
card image

A

Iliac Artery (Anterior Lower Limb)

71
card image

B

Femoral Artery (Anterior LowerLimb)

72
card image

C

Fibular Artery (Anterior Lower Limb)

73
card image

D

Tibial Artery (Anterior Lower Limb)

74
card image

A

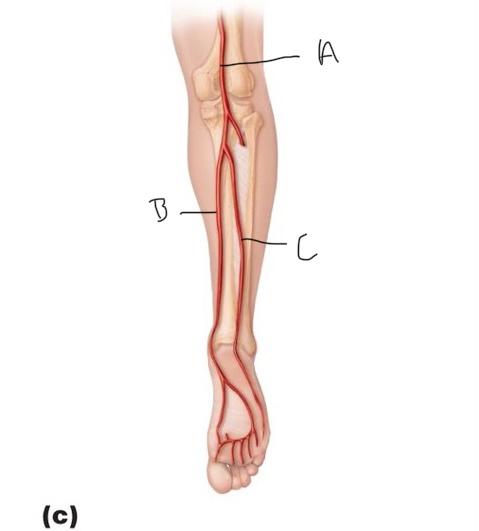

Popliteal Artery (Posterior Lower Limb)

75
card image

B

Tibial Artery (Posterior Lower Limb)

76
card image

C

Fibular Artery (Posterior Lower Limb)

77
card image

A

Cephalic Vein (Full Anterior)

78
card image

B

Ulnar Vein (Full Anterior)

79
card image

C

Internal Jugular Vein (Full Anterior)

80
card image

D

Superior Vena Cava (Full Anterior)

81
card image

E

Tibial Vein (Full Anterior)

82
card image

F

Fibular Vein (Full Anterior)

83
card image

G

Femoral Vein

84
card image

H

Brachiocephalic Vein (Full Anterior)

85
card image

I

Inferior Vena Cava (Full Anterior)

86
card image

J

Iliac Vein (Full Anterior)

87
card image

A

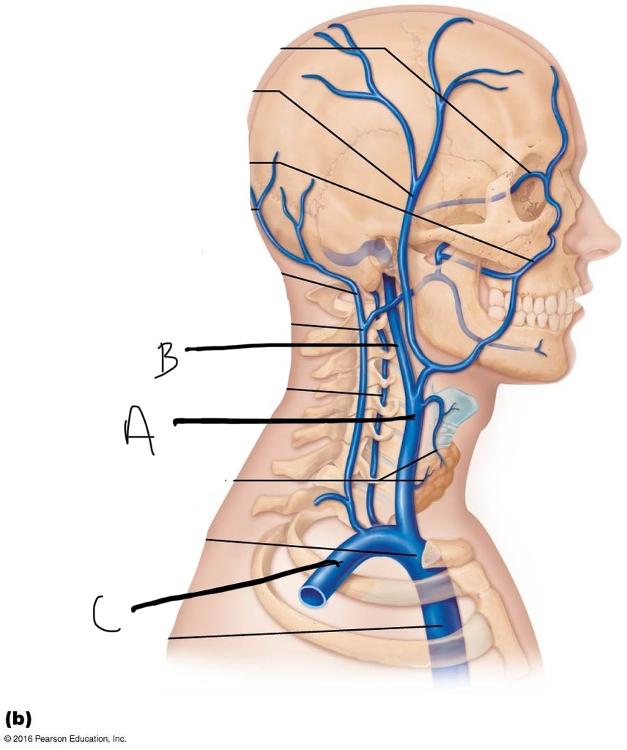

Jugular Vein (Right of Head and Neck)1

88
card image

B

Jugular Vein (Right of Head and Neck)2

89
card image

C

Subclavian Vein (Right of Head and Neck)

90
card image

A

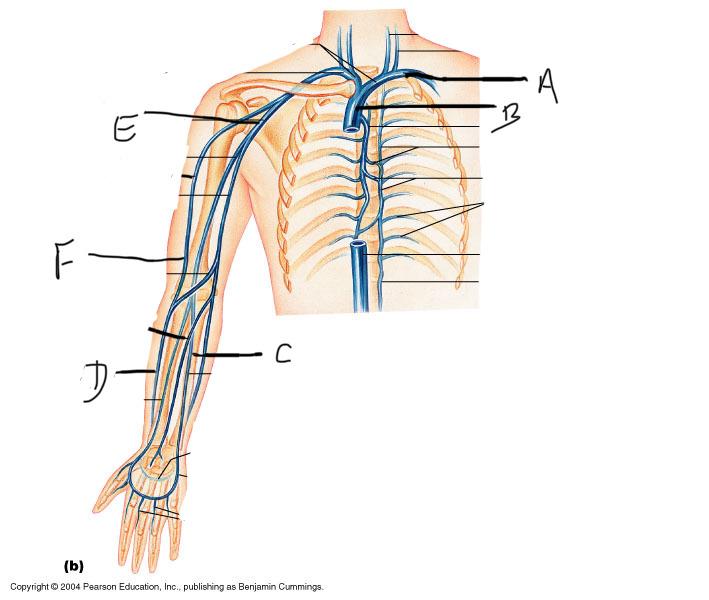

Subclavian Vein (Anterior Upper Limb)

91
card image

B

Superior Vena Cava (Anterior Upper Limb)

92
card image

C

Ulnar Vein (Anterior Upper Limb)

93
card image

D

Radial Vein (Anterior Upper Limb)

94
card image

E

Axillary Vein (Anterior Upper Limb)

95
card image

A

Inferior Vena Cava (Tributaries of The Inferior Vena Cava)

96
card image

B

Iliac Vein (Tributaries of The Inferior Vena Cava)

97
card image

C

Left Renal Vein (Tributaries of The Inferior Vena Cava)

98
card image

A

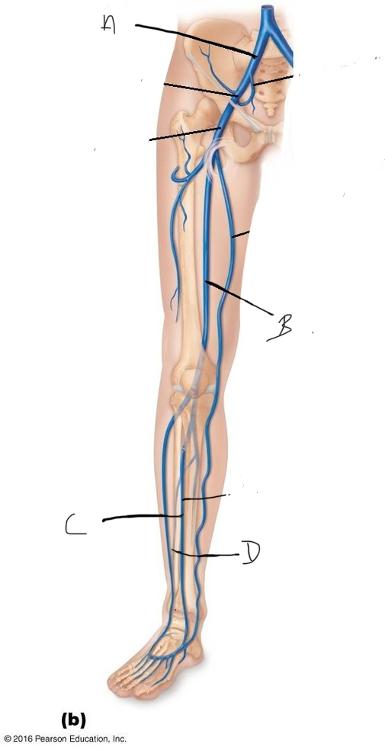

Iliac Vein (Anterior Lower Limb)

99
card image

B

Femoral Vein (Anterior Lower Limb)

100
card image

C

Tibial Vein (Anterior Lower Limb)

101
card image

D

Fibular Vein (Anterior Lower Limb)

102
card image

A

Fibular Vein (Posterior Lower Limb)

103
card image

B

Popliteal Vein (Posterior Lower Limb)

104
card image

C

Tibial Vein (Posterior Lower Limb)

105
card image

D

Fibular Vein (Posterior Lower Limb)

106

The inner lining of the heart.

Endocardium

107

Heart Muscle.

Myocardium

108

Serous layer covering the heat muscle.

Epicardium

109

The outermost layer of the serous pericardium.

Parietal Layer

110

Prevents backflow into the left ventricle.

Aortic Valve

111

Prevents backflow into the right atrium.

Tricuspid Valve

112

Prevents backflow into the left atrium.

Bicuspid Valve

113

Prevents backflow into the right ventricle.

Pulmonary Valve

114

Atrioventricular valve with two flaps.

Bicuspid

115

Atrioventricular valve with three flaps.

Tricuspid

116

Define systole.

Contraction

117

Define diastole

Relaxation

118

Which heart chambers are usually referenced when systole and diastole are used.

Ventricles

119

Define Auricle.

Flap like appendages attached to the atria that help increase atrial volume.

120

Define Atria.

Receiving chambers for blood returning to heart from pulmonary and circulatory systems.

121

Trace the pathway of the two blood circulations starting at the right atrium.

Right atrium to right ventricle to pulmonary artery to lungs where it is oxygenated to pulmonary veins to left atrium to left ventricle to aorta to tissue when it becomes deoxygenated blood to the superior vena cava back into right atrium.

122

Why is oxygen so much more critical to the heart muscles than to skeletal muscle?

Heart muscle mostly rely on aerobic(with oxygen) respiration, when forced to do anaerobic respiration it produces lactic acid and H+ imparting the heart.

123

Why is fibrosis of the cardiac muscles serious?

Fibrosis can stiffen your heart muscles, your atria can't fill causing less blood to be pumped, it then takes more energy to get the right amount of blood and weakens your heart.

124

A 55-year-old male was admitted to the hospital with heart failure. He complains of increasing shortness of breath on exertion and needing to sleep on three pillows at night. On physical assessment, the nurse to tenants at his ankles and feet are very swollen. Which of these symptoms reflect left-sided heart failure in which reflect right-sided heart failure?

If the left side of the heart can't return blood, the blood vessels become enlarged and can cause increased pressure, fluid can then leak into lung tissue cause pulmonary edema most noticeable in the feet, ankles, and fingers.

If the right side fails peripheral congestion occurs, blood will pool in tissue spaces causing it to be hard to breath in certain positions and shortness of breath.

125
card image

K

Radial Vein (Full Anterior)

126
card image

F

Cephalic Vein (Anterior Upper Limb)
