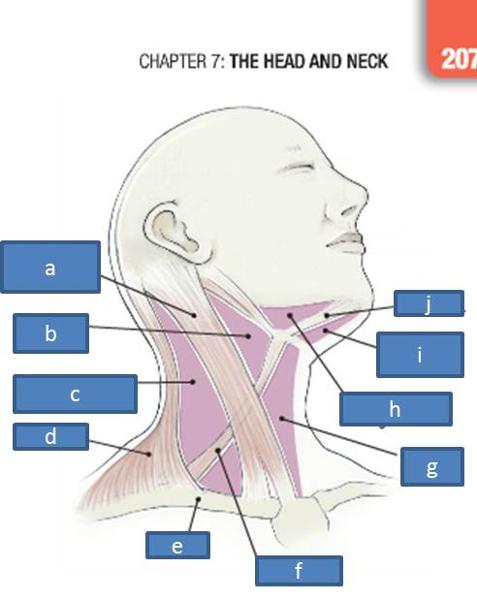

a-c
a. SCM
b. carotid triangle
c. posterior cervical triangle
d-f
d. trapezius
e. clavicle
f. inferior belly of omohyoid
g-j
g. muscular triangle
h. submandibular triangle
i. submental triangle
j. digastric muscle

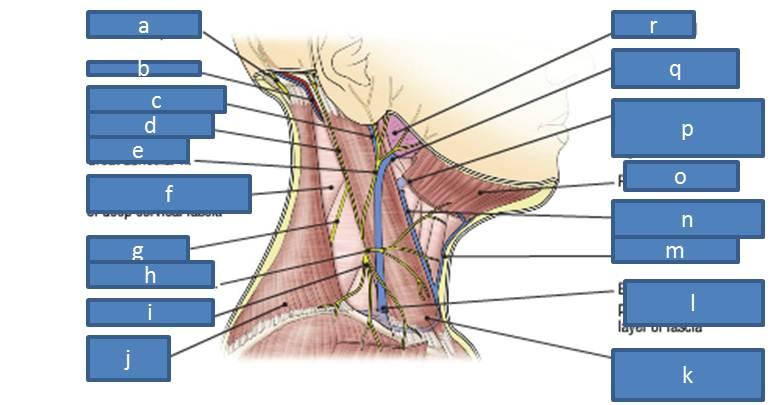

a-c
a. greater occipital nerve
b. occipital artery and vein
c. posterior auricular vein
d-f
d. lesser occipital nerve
e. great auricular nerve
f. investing layer of DCF
g-i
g. accessory nerve
h. transverse cervical nerve
i. supraclavicular nerve
j-l
j. trapezius
k. sternocleidomastoid m.
l. external jugular vein
m-o
m. anterior jugular vein
n. communicating vein
o. platysma
p-r
p. common facial vein
q. posterior division of retromandibular vein
r. parotid gland
a-d
a. platysma
b. anterior belly of digastric m.
c. mylohyoid m.
d. submandibular gland
e-h
e. stylohyoid m.
f. posterior belly of digastric m.
g. hypoglossal n.
h. carotid sheath
i-l
i. nerve to thyrohyoid m.
j. thyrohyoid m.
k. superior body of omohyoid m.
l. great auricular and transverse cervical n.
m-p
m. sternohyoid m.
n. supraclavicular n.
o. inferior belly of omohyoid m.
p. external jugular vein
q-t
q. subclavian vein
r. sternocleidomastoid m.
s. sternothyroid m.
t. inferior thyroid vein
u-x
u. thyroid gland
v. 1st tracheal ring
w. cricoid cartilage
x. cricothyroid m.
y-aa
y. cricothyroid membrane
z. laryngeal prominence of thyroid cartilage
aa. thyrohyoid membrane
bb-dd
bb. hyoid bone
cc. mylohyoid raphe
dd. mental protuberance
a-d
a. external carotid a.
b. accessory nerve
c. hypoglossal nerve
d. sternocleidomastoid m.
e-h
e. internal jugular vein
f. internal carotid a.
g. common facial vein
h. lingual artery
i-l
i. greater horn of hyoid bone
j. internal laryngeal nerve
k. superior laryngeal artery
l. external carotid artery
m-p
m. thyrohyoid membrane
n. superior root of ansa cervicalis
o. inferior root of ansa cervicalis
p. vagus nerve
q-t
q. superior thyroid a.
r. common carotid a.
s. sternohyoid m.
t. inferior pharyngeal constrictor m.
u-x
u. superior belly of omohyoid m.
v. laryngeal prominence
w. external laryngeal nerve
x. thyrohyoid muscle
y-bb
y. hyoid bone
z. fibrous sling of digastric m.
aa. mylohyoid raphe
bb. nerve to thyrohyoid m
cc-hh
cc. mylohyoid
dd. anterior belly of digastric m.
ee. facial artery
ff. facial vein
gg. stylohyoid muscle
hh. posterior belly of digastric muscle

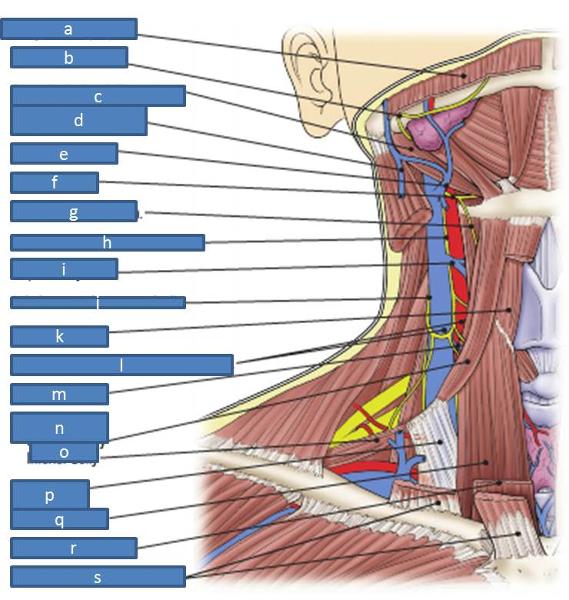

a-d
a. platysma
b. facial nerve branches
c. posterior belly of digastric
d. external jugular vein
e-h
e. common facial v.
f. hypoglossal n.
g. nerve to thyrohyoid
h. superior root of ansa cervicalis
i-l
i. superior thyroid vein
j. inferior root of ansa cervicalis
k. thyrohyoid muscle
l. internal jugular vein and common carotid artery
m-p
m. middle thyroid vein
n. superior belly of omohyoid
o. inferior belly of omohyoid
p. fascial sling
q-s
q. sternothyroid
r. sternohyoid
s. sternocleidomastoid

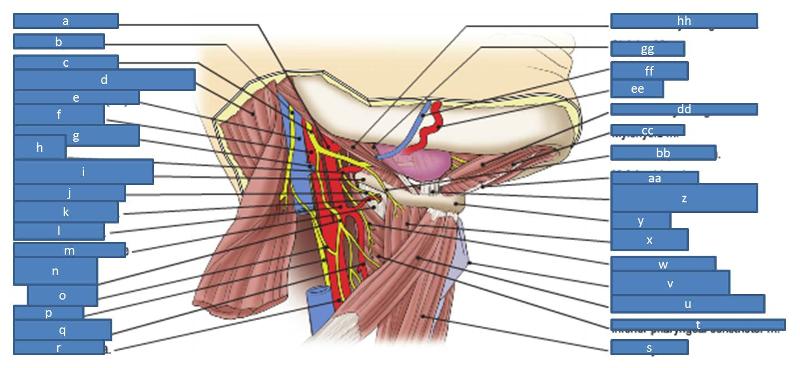

a-d
a. internal carotid artery
b. vagus
c. inferior vagal ganglion
d. posterior auricular artery
e-h
e. occipital artery
f. carotid branch
g. superior thyroid a.
h. carotid sinus
i-l
i. superior laryngeal artery
j. carotid body
k. vagus
l. inferior pharyngeal constrictor
m-p
m. common carotid a
n. inferior thyroid a.
o. thyrocervical trunk
p. vertebral a
q-t
q. right subclavian a
r. brachiocephalic a
s. right recurrent laryngeal nerve
t. tracheal rings
u-x
u. esophagus
v. inferior laryngeal artery
w. inferior laryngeal nerve
x. cricothyroid
y-bb
y. external laryngeal
z. internal laryngeal nerve
aa. superior laryngeal n.
bb. thyrohyoid membrane
cc-ff
cc. hyoid bone
dd. middle pharyngeal constrictor
ee. lingual artery
ff. facial artery
gg-jj
gg. pharyngeal branch
hh. external carotid a.
ii. maxillary artery
jj. superficial temporal artery

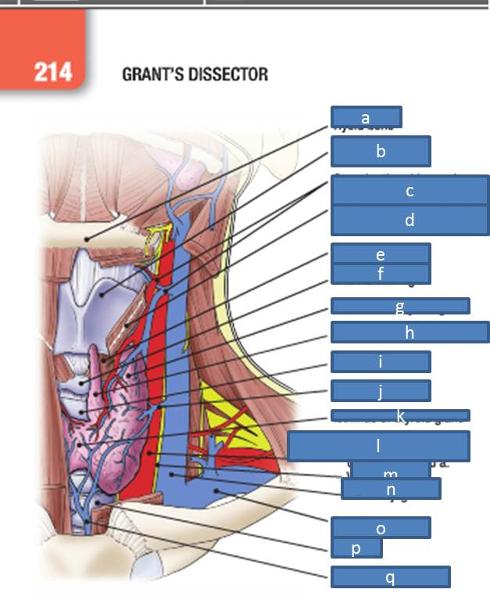

a-d
a. hyoid bone
b. thyroid cartilage
c. superior thyroid artery and vein
d. thyrohyoid and sternothyroid
e-h
e. cricothyroid m.
f. cricoid cartilage
g. left lobe of thyroid gland
h. pyramidal lobe
i-l
i. first tracheal ring
j. middle thyroid vein
k. isthmus of thyroid gland
l. common carotid a
m-q
m. vagus n.
n. internal jugular vein
o. subclavian vein
p. trachea
q. left inferior thyroid vein
a-d
a. sympathetic trunk
b. middle scalene m.
c. middle cervical ganglion
d. anterior scalene m
e-h
e. inferior cervical/stellate ganglion
f. phrenic n.
g. right vagus
h. dorsal scapular artery
i-l
i. brachial plexus
j. right subclavian artery
k. right lymphatic duct
l. right internal jugular vein
m-p
m. right subclavian vein
n. right recurrent laryngeal nerve
o. right brachiocephalic vein
p. sternohyoid m.
q-t
q. trachea and esophagus
r. manubrium
s. first costal cartilage
t. left common carotid artery
u-x
u. lefte venous angle
v. thoracic duct
w. internal thoracic a.
x. external jugular vein
y-bb
y. left recurrent laryngeal nerve in tracheo-esophageal groove
z. left subclavian artery
aa. suprascapular artery
bb. thyrocervical trunk
cc-ff
cc. dorsal scapular artery variant
dd. transverse cervical artery
ee. cervical pleura
ff. inferior thyroid artery
gg-ii
gg. ascending cerivical artery
hh. longus colli
ii. vertebral artery
jj-ll
jj. anterior scalene m
kk. carotid tubercle
ll. middle scalene m.
mm. longus capitis m.

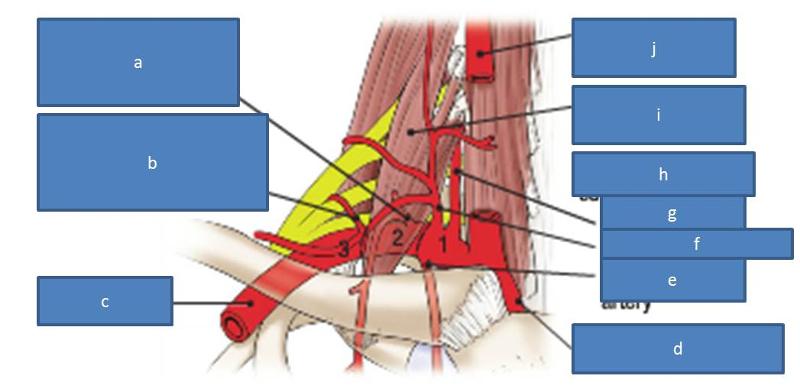

a-e
a. costocervical trunk
b. dorsal scapular artery
c. axillary artery
d. brachiocephalic trunk
e. internal thoracic artery
f-j
f. thyrocervical trunk
g. vertebral artery
h. nothing
i. anteiror scalene muscle
j. common carotid artery

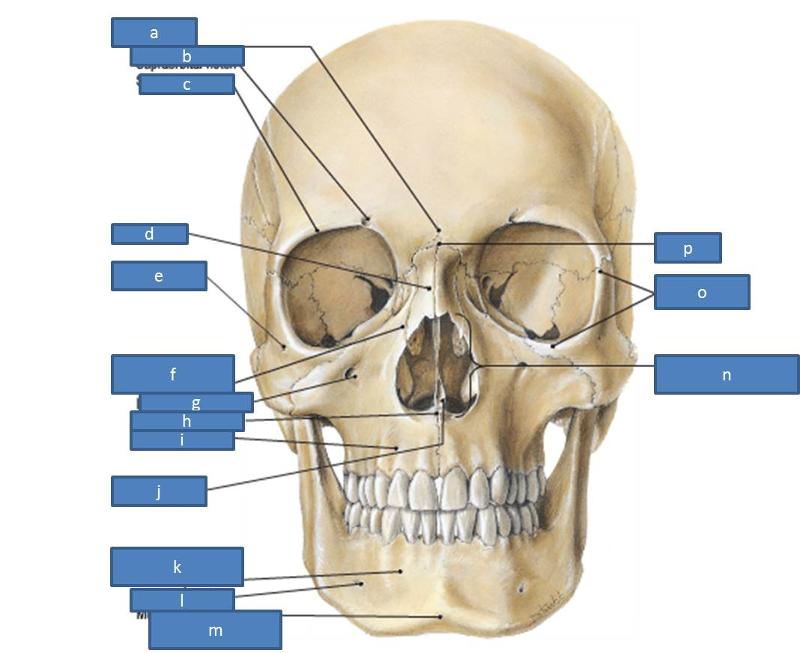

a-d
a. glabella of frontal bone
b. supraorbital notch of frontal bone
c. superciliary arch of frontal bone
d. nasal bone
e-h
e. zygomatic bone
f. frontal process of maxilla
g. infraorbital foramen of maxilla
h. anterior nasal spine of maxilla
i-l
i. alveolar process of maxilla
j. nasal septum
k. alveolar process of mandible
l. mental foramen of mandible
m-p
m. mental protuberance of mandilbe
n. anterior nasal aperture
o. orbital margin
p. nasion

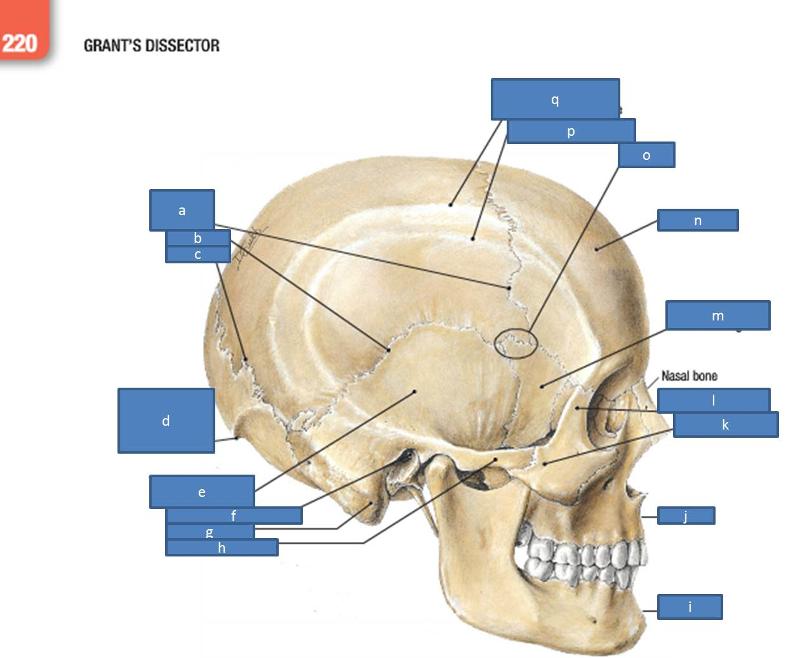

a-d
a. coronal suture
b. squamosal suture
c. lambdoid suture
d. external occipital protuberance
e-h
e. squamous part of temporal bone
f. external acoustic meatus of temporal bone
g. masotoid process of temporal bone
h. zygomatic process of temporal bone
i-l
i. mandible
j. maxilla
k. temporal process of zygomatic bonne
l. frontal process of zygomatic bone
m-q
m. greater wing of sphenoid
n. frontal bone
o. pterion
p. inferior temporal line of parietal bone
q. superior temporal line of parietal bone

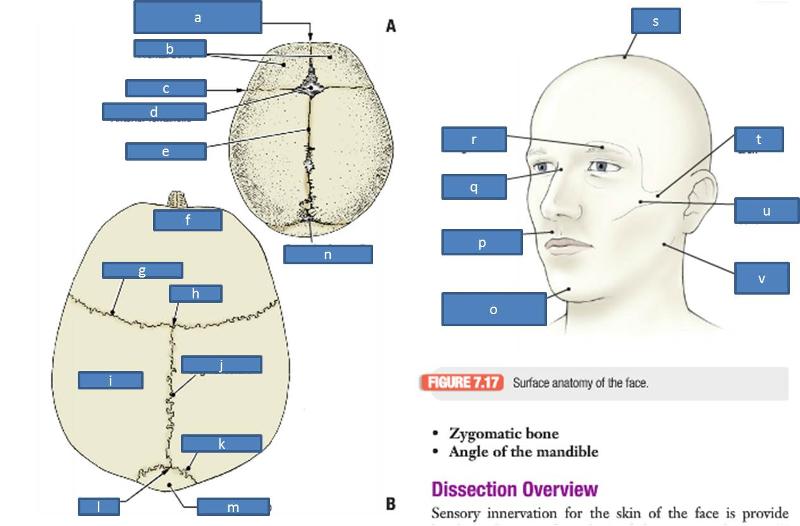

a-d
a. frontal suture
b. frontal bones
c. coronal suture
d. anterior fontannelle
e-h
e. sagittal suture
f. frontal bone
g. coronal suture
h. bregma
i-l
i. parietal bone
j. sagittal suture
k. lambdoid suture
l. lambda
m-p
m. occipital bone
n. posterior fontanelle
o mental protuberance of mandible
p. alveolar process of maxilla
q-s
q. nasal bones
r. supraorbital margin
s. vertex
t. zygomatic bone
u. zygomatic arch
v. angle of mandible

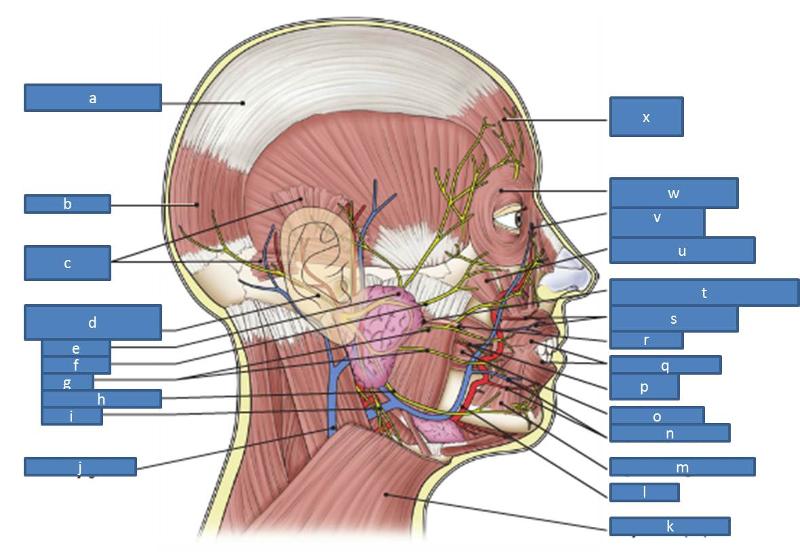

a-d
a. epicranial aponeurosis
b. occipitofrontalis
c. auricular m.
d. posteiror auricular branch of CN VII
e-h
e. temporal branch of CN VII
f. zygomatic branch of CN VII
g. buccal branch of CN VII
h. marginal mandibular branch of CN VII
i-l
i. cervical branch of CN VII
j. external jugular vein
k. platysma
l. facial artery and vein
m-p
m. depressor anguli oris
n. inferior labial a and v
o. buccinator m
p. buccal m
q-t
q. orbicularis oris m.
r. parotid duct
s. superior labial a and v
t. anterior margin of parotid gland
u-x
u. zygomaticus major
v. angular a and v
w. orbicularis oculi m
x. frontalis m

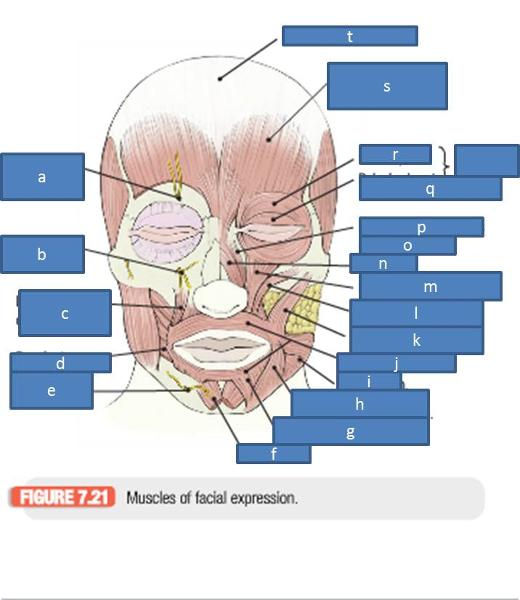

a-d
a. supraorbital nerve
b. infraorbital nerve
c. levator anguli oris m.
d. buccinator m.
e-h
e. mental nerve
f. mentalis
g. depressor labii inferioris
h. dpressor anguli oris
i-l
i. platysma
j. orbicularis oris
k. zygomaticus major
l. zygomaticus minor
m-p
m. levator labii superioris
n. nasalis
o. levator labii superioris alaque nasi m
q-t
q. palpebral part of orbicularis oculi
r. orbital part of orbicularis oculi
s. frontal belly of occipitofrontalis
t. epicranial aponeurosis

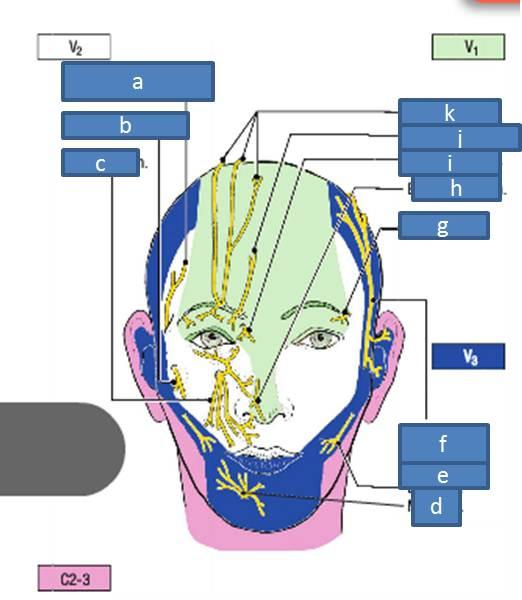

a. zygomaticotermporal nerve
b. zygomaticofacial nerve
c. infraorbital nerve
d. mental nerve
e. buccal nerve
f. auriculotermporal nerve
g. lacrimal nerve
h. external nasal nerve
i. infratrochlear nerve
j. supratrochlear nerve
k. supraorbital nerve

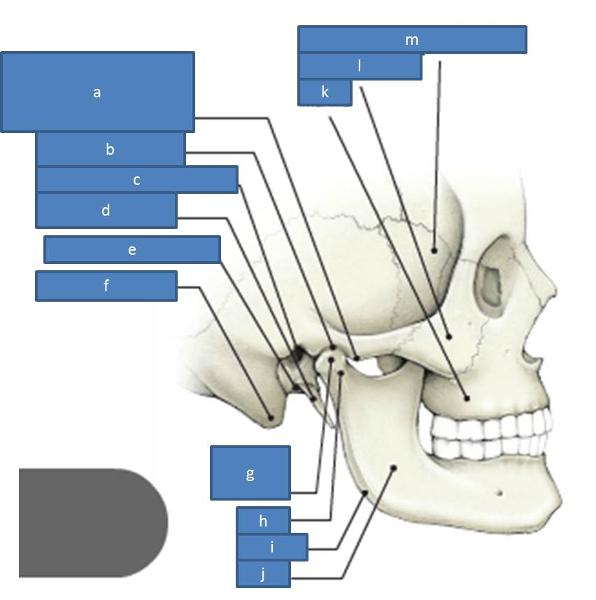

a-d
a. articular tubercle
b. mandibular fossa
c. external acoustic meatus
d. styloid process
e-h
e. stylomastoid foramen
f. mastoid process
g. head of mandible
h. neck of mandible
i-m
i. angle of mandible
j. ramus of mandible
k. maxilla
l. zygomatic bone
m. greater wing of sphenoid bone

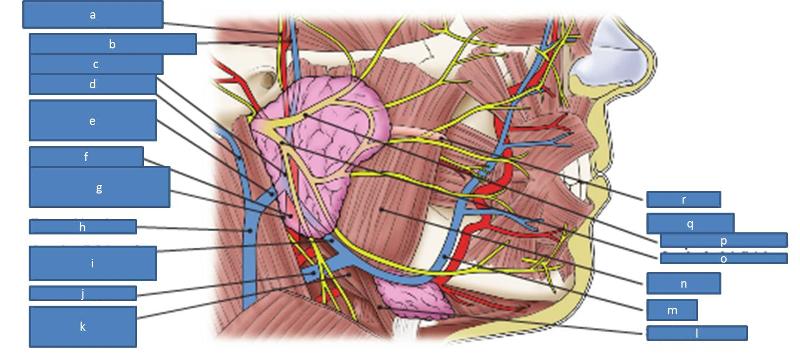

a-d
a. auriculotemporal nerve
b. superficial temporal a and v
c. retromandibular vein
d. posterior auricular vein
e-h
e. posterior division of retromandibular vein
f. external carotid artery
g. anterior border of SCM
h. external jugular vein
i-l
i. anterior division of retromandibular vein
j. common facial vein
k. posterior belly of digastric muscle
l. stylohyoid
m-q
m. facial vein
n. masseter
o. cervicofacial division of parotid plexus
p. temporofacial division of parotid plexus
q. nothing
r. parotid duct

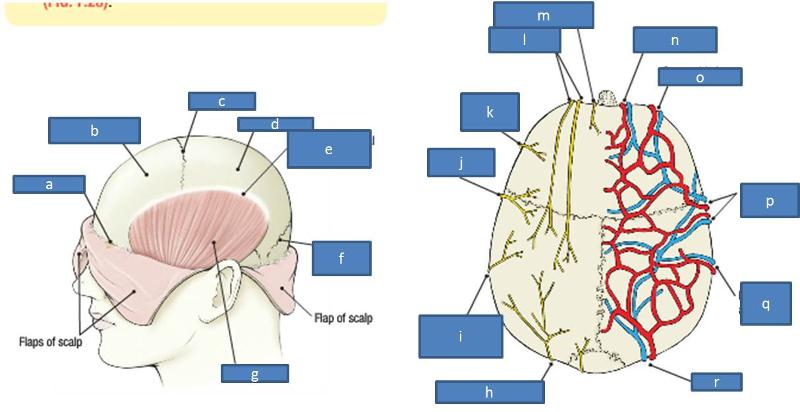

a. supraorbital nerve
b. frontal bone
c. coronal suture
d. parietal bone
e. superior temporal line
f. lambdoid suture
g. temporalis muscle
h. greater ocipital nerve
i. lesser occipital nerve
j. auriculotemporal nerve
k. zygomaticotemporal nerve
l. supraorbital nerve
m. supratrochlear nerve
n. supratrocheal artery and vein
o. supraorbital artery and vein
p. superficial termpoal
q. posterior auricular
r. occipital

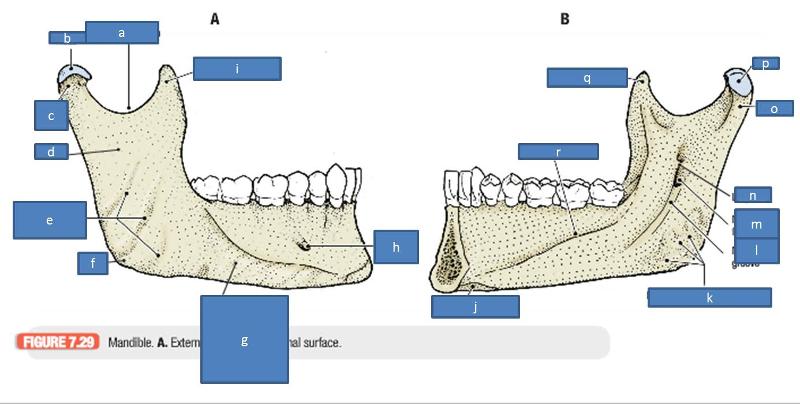

a-d
a. mandibular notch
b. head
c. neck
d. ramus
e-h
e. for masseter
f. angle
g. body
h. mental foramen
i-l
i. coronoid process
j. digastric fossa
k. for medial pterygoid muscle
l. mylohyoid groove
m-r
m. mandibular foramen
n. lingula
o. neck
p. head
q. coronoid process
r. mylohyoid line

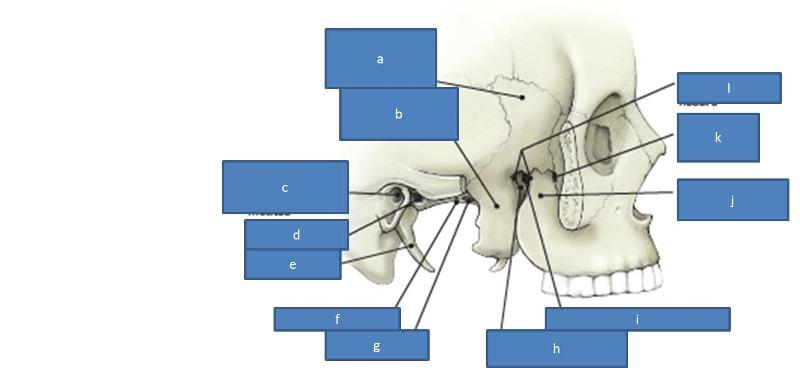

a-d
a. greater wing of sphenoid bone
b. lateral plate of pterygoid process
c. external acoustic meatus
d. mandibular fossa
e-h
e. styolid process
f. foramen spinosum
g. foramen ovale
h. pterygopalatine fossa
i-l
i. sphenopalatine foramen
j. infratemporal surface of maxilla
k. inferior orbital fissure
l. pterygomaxillary fissure

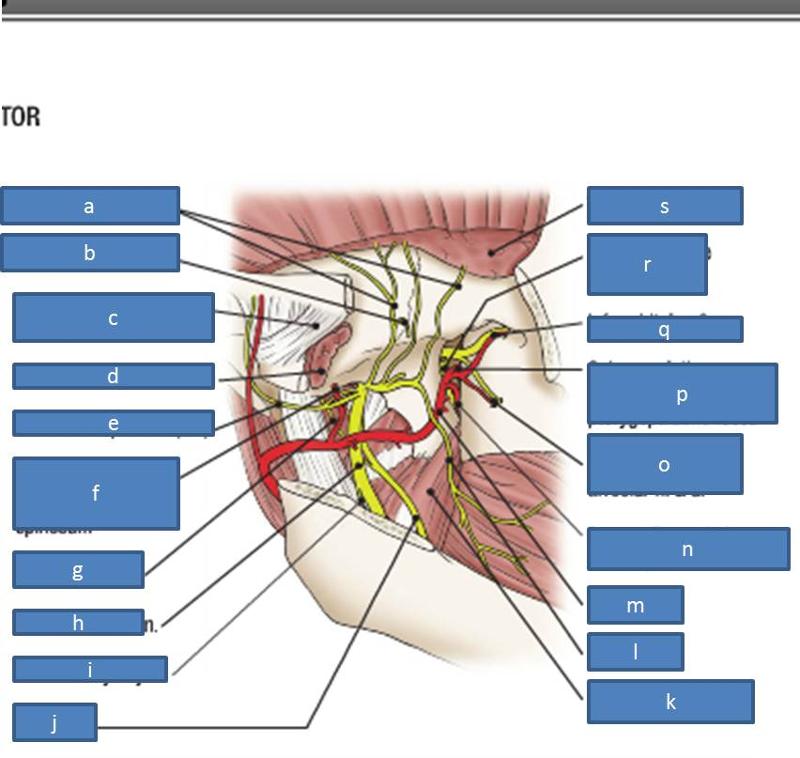

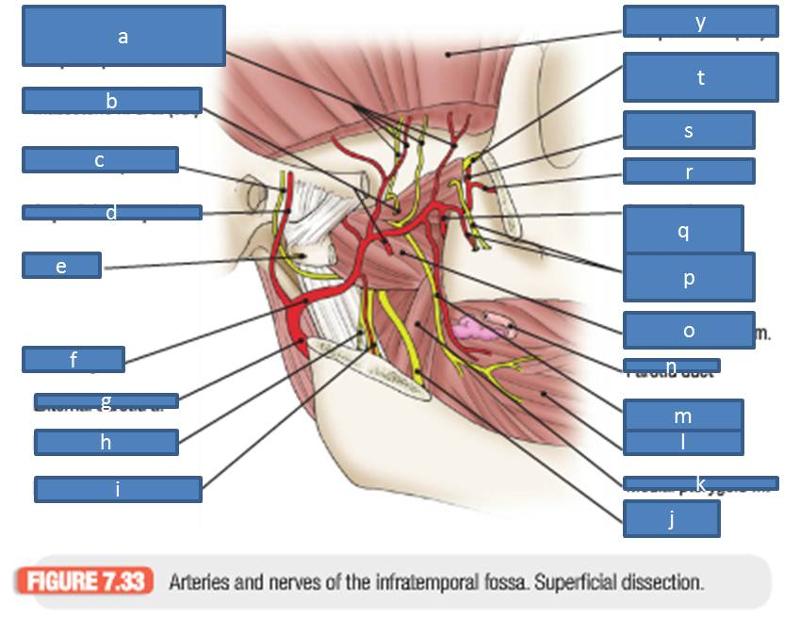

a-d
a. posterior and anterior deep temporal nerve and artery
b. masseteric nerve and artery
c. auriculotemporal verve
d. superficial artery
e-h
e. parotid nerve
f. maxillary artery
g. external carotied artery
h. nerve to mylohyoid
i-l
i. inferior alveolar artery and nerve
j. lingual nerve
k. medial pterygoid m.
l. buccinator muscle
m-p
m. buccal nerve and artery
n. parotid duct
o. lateral pterygoid muscle
p. posterior superior alveolar nerve and artery
q-u
q. descending palatine artery
r. inferior orbital artery
s. maxillary division of trigeminal n.
t. temporalis muscle
a-d
a. deep temporal nerve
b. masseteric nerve
c. lateral ligament of TMJ
d. lateral pterygoid muscle
e-h
e. auriculotemporal nerve
f. middle meningeal artery entering foramen spinosum
g. chordia tympani
h. inveior alveolar nerve
i-l
i. nerve to mylohyoid
j. lingual nerve
k. medial pterygoind m
l. buccal nerve
m-p
m. maxillary artery
n. descending palatine artery entering palatine canal
o. posterior superior alveolar nerve and artery
p. sphenopalatine artery entering pterygopalatine fossa
q-s
q. infraorbital nerve and artery
r. pterygopalatine ganglion
s. temporalis muscle

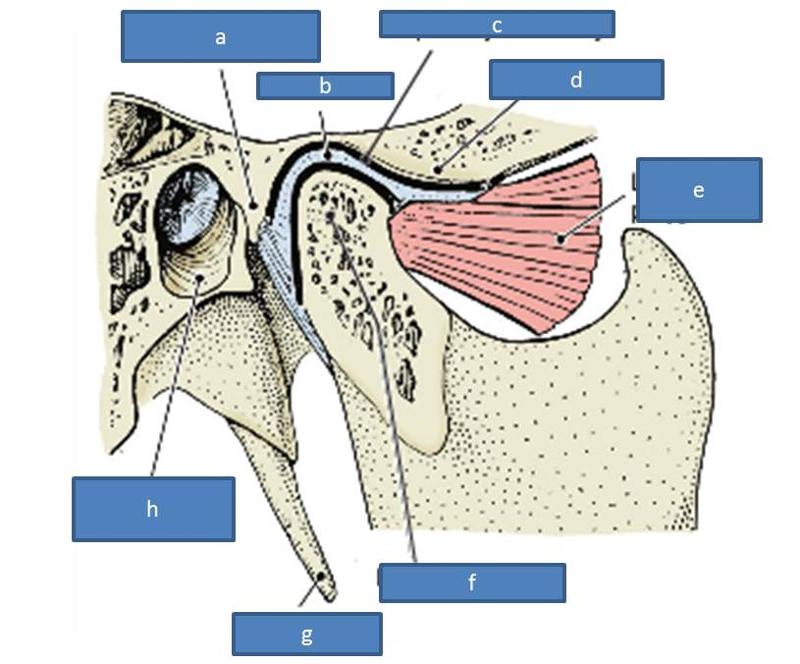

a-d
a. postglenoid tubercle
b. articular disc
c. superior synovial cavity
d. articular tubercle
e-h
e. lateral pterygoid m.
f. head of mandible
g. styloid process
h. external acoustic meatus
a-h
...

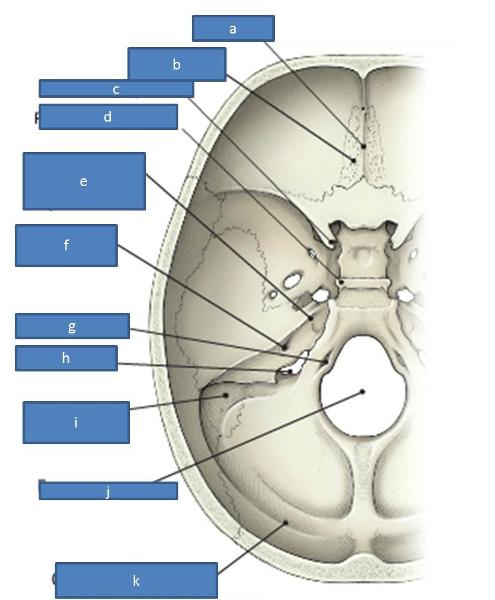

a-d
a. crista galli
b. cribriform plate
c. anterior clinoid process
d. posterior clinoid process
e-h
e. superior border of petrous part of temporal bone
f. internal acoustic meatus
g. hypoglossal canal
h. jugular foramen
i-j
i. groove for sigmoid sinus
j. foramen magnum
k. groove for transverse sinus

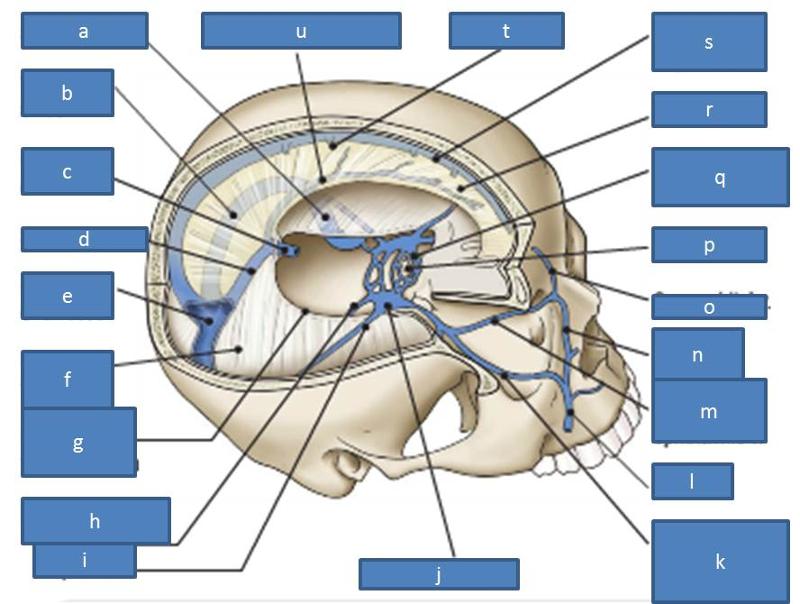

a-d
a. sigmoid sinus
b. transverse sinus
c. great cerebral vein
d. striaght sinus
e-h
e. confluens of sinuses
f. cerebellar tentorium
g. edge of tentorial notch
h. inferior petrosal sinus
i-l
i. superior petrosal sinus
j. cavernous sinus
k. inferior ophthalmic vein
l. facial vein
m-p
m. superior ophthalmic vein
n. angular vein
o. supraorbital vein
p. infundibulum
q-u
q. intercavernous sinus
r. cerebral falx
s. superior sagittal sinus
t. bridging vein
u. inferior sagittal sinus

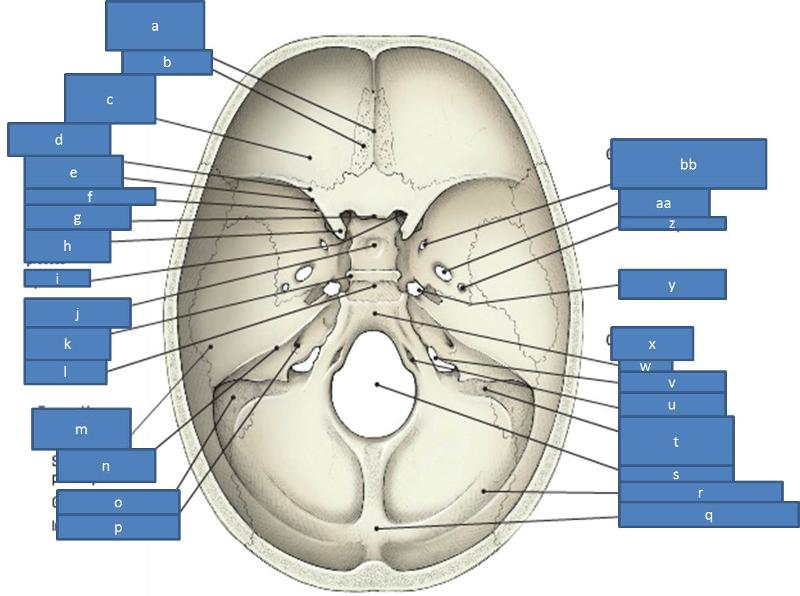

a-d
a. crista galli of ethmoid bone
b. cribriform plate of ethmoid bone
c. orbital part of frontal bone
d. lesser wing of sphenoid bone
e-h
e. sphenoidal crest
f. ssuperior orbital fissure
g. sphenoidal limbus
h. anterior clinoid process
i-l
i. optic canal
j. hypophyseal fossa
k. posterior clinoid process
l. dorsum sellae
m-p
m. squamous part of temporal bone
n. superior border of petrous part
o. groove for sigmoid sinus
p. internal acoustic meatus
q-t
q. internal occipital protuberance
r. groove for transverse sinus
s. foramen magnum
t. groove for sigmoid sinus
u-x
u. hypoglossal canal
v. jugular foramen
w. clivus
x. occipital bone
y-bb
y. foramen lacerum
z. foramen spinosum
aa. foramen ovale
bb. foramen rotundum

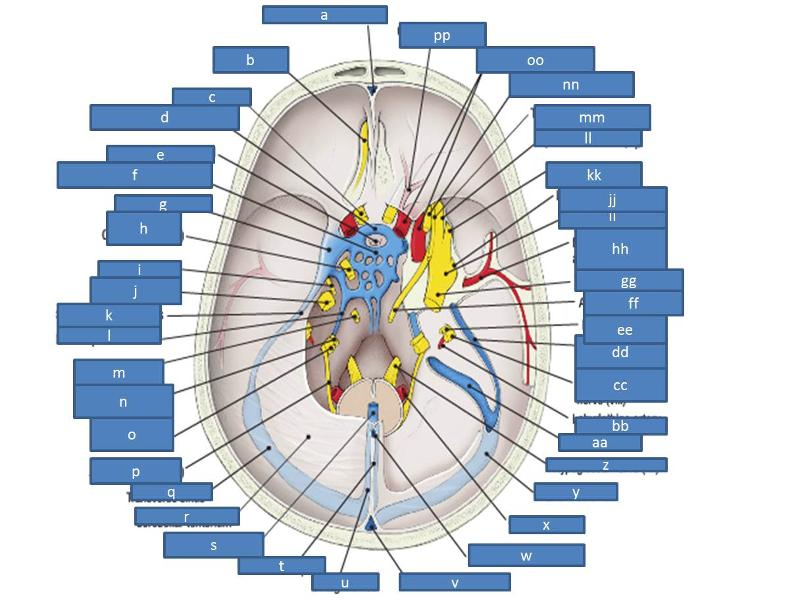

a-d
a. superior sagittal sinus
b. olfactory bulb
c. optic nerve
d. anterior intercavernous sinus
e-h
e. stalk of pituitary gland
f. posterior intercavernous sinus
g. cavernous sinus
h. oculomotor nerve
i-l
i. trochlear nerve
j. trigeminal nerve
k. superior petrosal sinus
l. inferior petrosal sinus
m-p
m. abducent n
n. glossopharyngeal nerve
o. vagus nerve
p. accessory nerve
q-t
q. transverse sinus
r. cerebellar tentorium
s. great cerebral vein
t. cerebral falx
u-x
u. straight sinus
v. superior sagittal sinus
w. inferior sagittal sinus
x. vertebral artery
y-bb
y. transverse sinus
z. hypoglossal nerve
aa. sigmoid sinus
bb. labyrinthine artery
cc-ff
cc. vestibulocochlear nerve
dd. superior petrosal sinus
ee. facial nerve
ff. abducent nerve
gg-jj
gg. trigeminal nerve
hh. middle meningeal artery
ii. trigeminal ganglion
jj. mandibular nerve
kk-pp
kk. mandibular nerve
ll. maxillary nerve
mm. opthalmic nerve
nn. trochlear nerve
oo. oculomotor nerve
pp. internal carotid artery
qq. ophthalmic artery

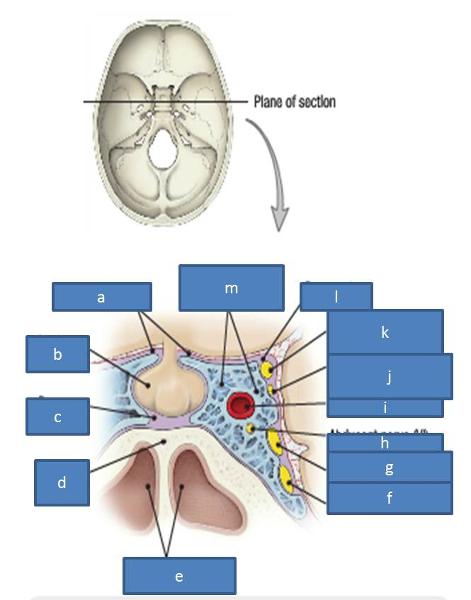

a-m
a. sellar diaphragm
b. pituitary gland
c. dura mater
d. sphenoid bone
e. sphenoidal sinus
f. maxillary nerve
g. ophthalmic nerve
h. abducent nerve
i. internal carotid artery
j. trochlear nerve
k. oculomotor nerve
l. dura mater
m. trabeculae in cavernous sinus
