superior colliculus
inferior colliculus

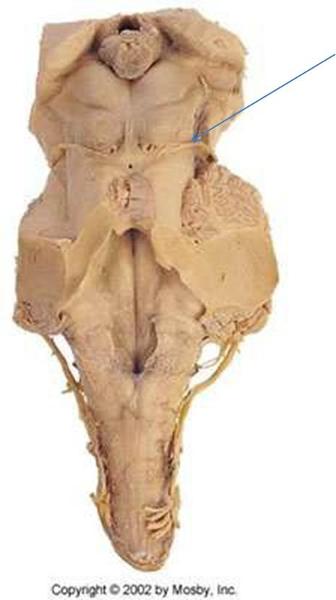

trochlear nerve CN IV
superior cerebellar peduncle
middle cerebellar peduncle
inferior cerebellar peduncle
obex

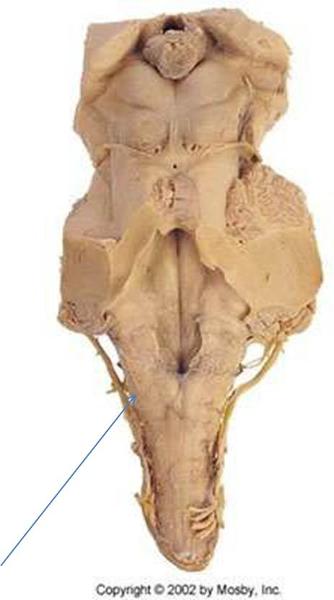

cuneate fasciculus

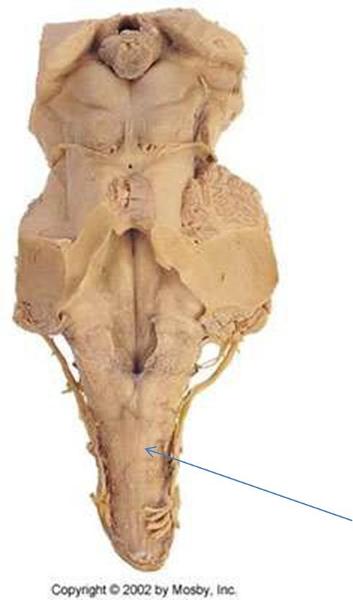

gracile fasciculus
gracile nucleus
cuneate nucleus

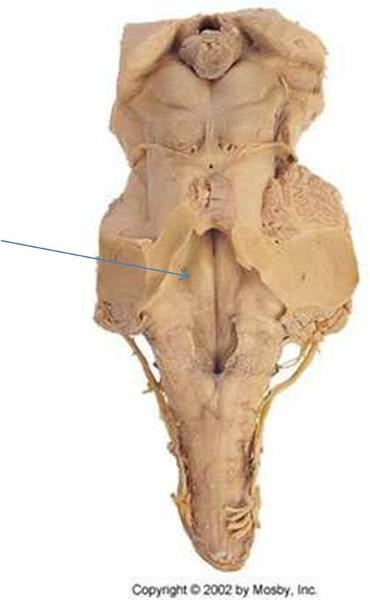

sulcus limitans
cerebral peduncle
pons
trigeminal nerve
pyramid
olive
motor decussation
accessory nerve
hypoglossal nerve

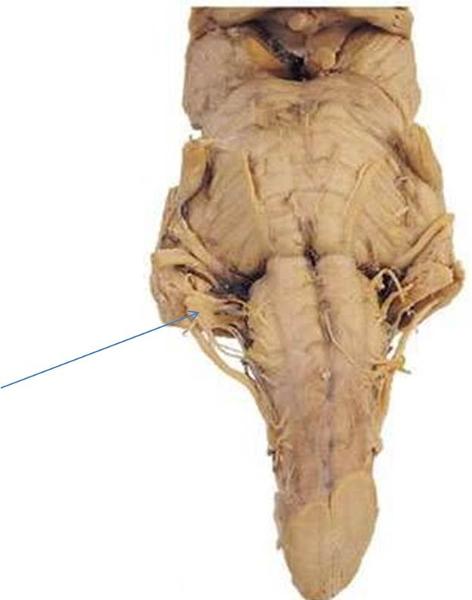

glossopharyngeal and vagus nerve
vestibulocochlear nerve
abducens
facial nerve
oculomotor nerve

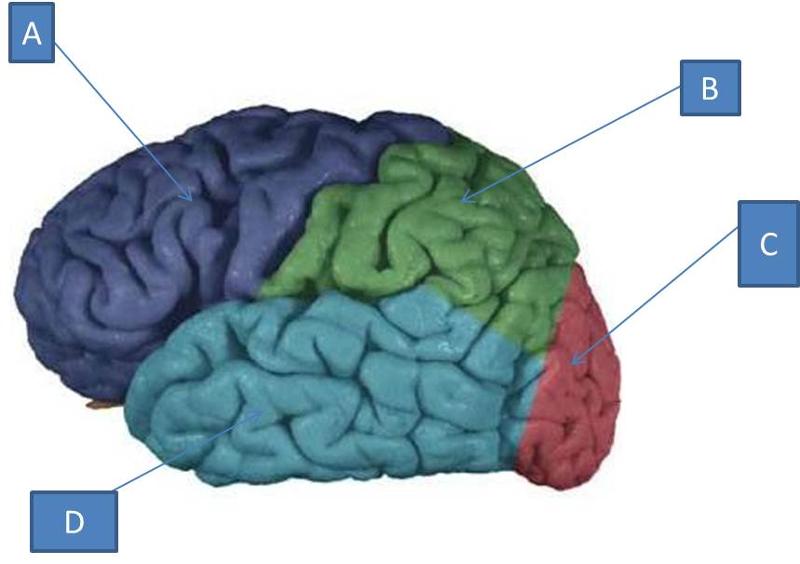

a. frontal lobe
b. parietal lobe
c. occipital lobe
d. temporal lobe

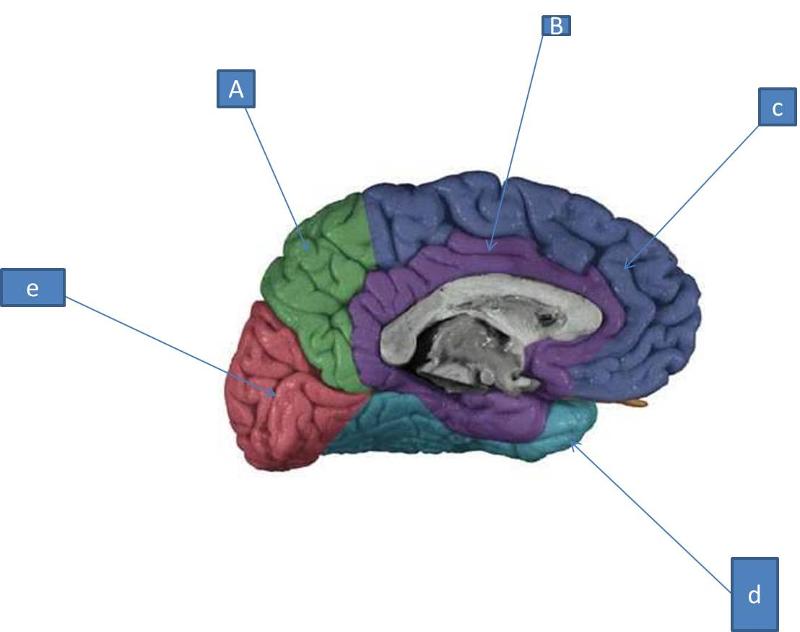

a. parietal lobe
b. limbic lobe: on edge of lateral ventricle, beneath what we can see of limbic lobe
c. frontal lobe
d. temporal lobe
e. occipital lobe
a. central sulcus- upward at angle from lateral sulcus; extends a bit to medial surface
b. lateral sulcus: groove between temporal and frontal lobes and temporal/parietal lobe
c. pre-occipital notch: helps to know where temporal stops and occipital starts

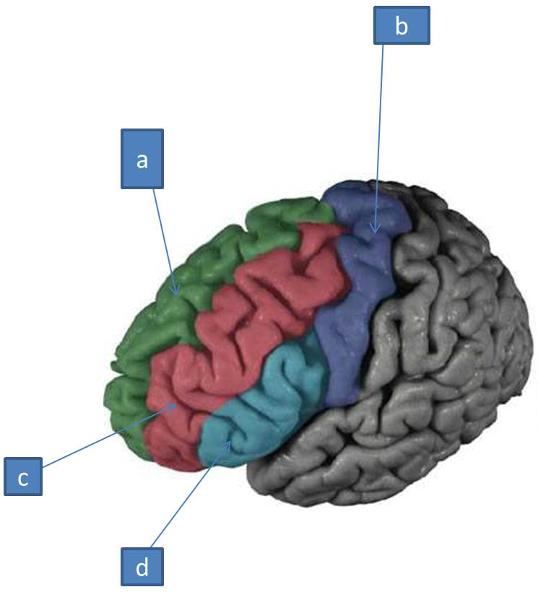

a. superior frontal gyri
b. middle frontal gyri
c. inferior frontal gyri
d. precentral gyrus- primary motor cortex; motor instructructions programmed here

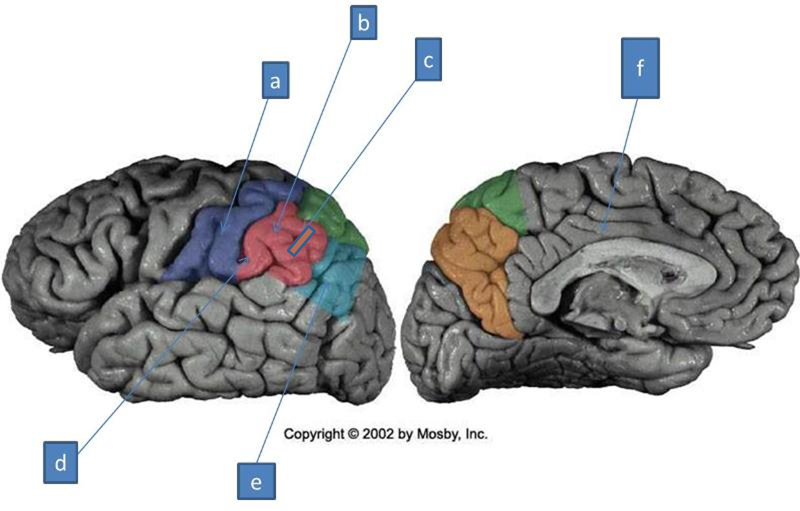

a. postcentral gyrus- important because sensory region in cerebral hemisphere
b. superior parietal lobule
c. supramarginal gyrus- we could follow lateral sulcus up and it would dead end here
d. inferior parietal lobule- if damaged on R side, person will ignore left side of world= lateral neglect
e. angular gyrus- superior temporal sulcus dead ends here
f. cingulate gyrus: not just in parietal lobe, a lot of times just lumped into limbic lobe
a. superior temporal gyri (much auditory processing here)
b. middle temporal gyri
c. inferior temporal gyri
d. parahippocampal gyrus (structures inside bulge like hippocampus)
a. olfactory bulb
b. olfactory tract
c. mammillary body
d. uncus
e. orbital gyri
f. infundibular stalk: attached to pituitary, when brain removed pituitary left behind because it sits in body pocket
g. middle cerebellar peduncle (brainstem to cerebellum)
h. cerebellar hemisphere- largest portion
i. pyramid on surface of brainstem (medulla)
a. insula
b. opercula of frontal lobe
c. superior temporal gyrus

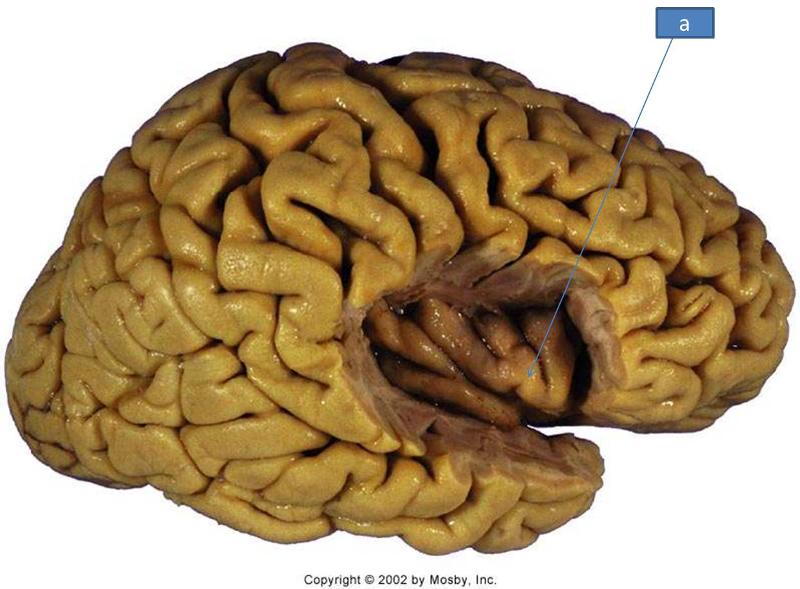

a. gyri of insula

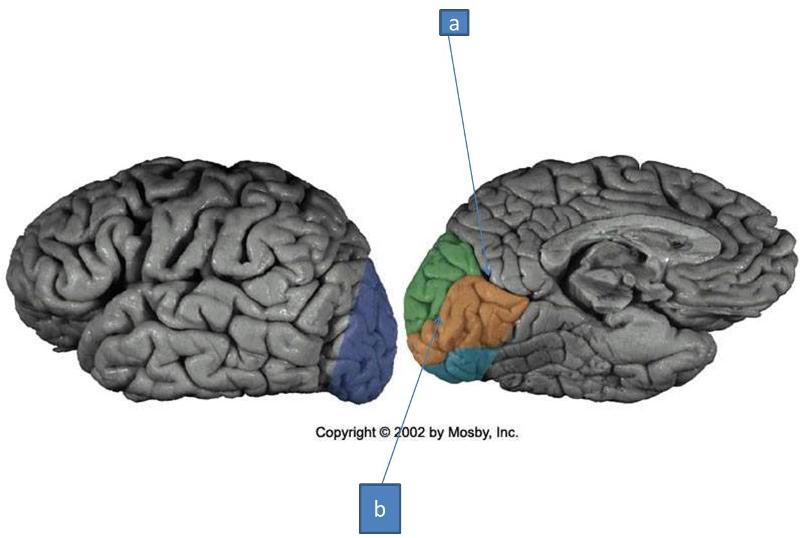

a. parieto-occipital sulcus
b. calcarine sulcus: major sulcus running back on occipital lobe; main visual cortex here
a. septum pellucidum of corpus callosum, forms wall of lateral ventricle
b. splenium of corpus callosum
c. genu of corpus callosum "bend" at front of corpus callosum
a-h
a. interventricular foramen
b. hypothalamus
c. thalamus
d. third ventricle
e. midbrain
f. pons
g. fourth ventricle
h. vermis of cerebellum
i-m
i. cerebellar tonsil
j. medulla
k. anterior commissure
l. lamina terminalis
a-i
a. CN II optic
b. CN III oculomotor
c. CN V trigeminal
d. CN VI abducens
e. CN VII facial
f. CN VIII vestibulocochlear
g. CN XI accessory
h. CN XII hypoglossal
i. CN X vagus
j. CN IX glossopharyngeal
k. CN XII hypoglossal
l. Pyramid
m. Olive
o. CN IV trochlear
p. Optic tract
q. Optic chiasm
j-q
j. CN IX glossopharyngeal
k. CN XII hypoglossal
l. Pyramid
m. Olive
o. CN IV trochlear
p. Optic tract
q. Optic chiasm

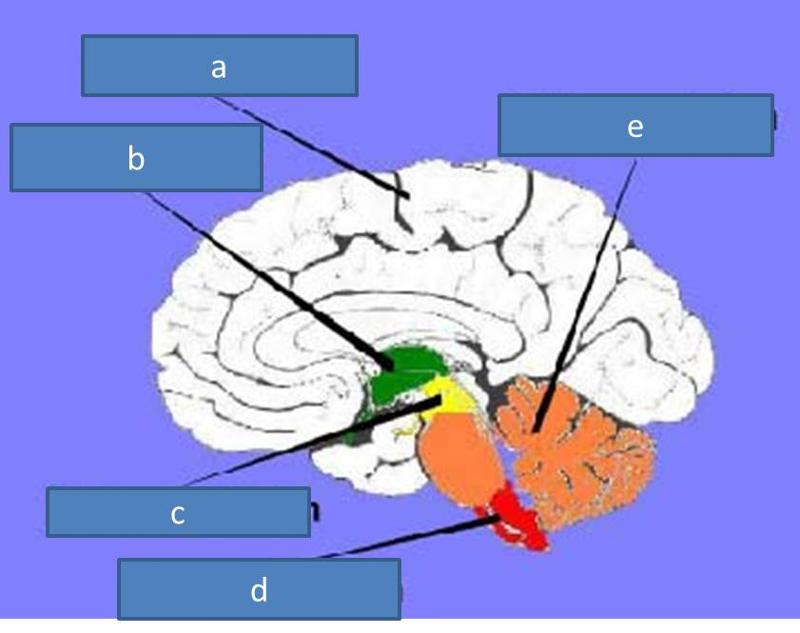

a. telencephalon
b. diencephalon
c. mesencephalon
d. myelencephalon
e. metencephalon
a-g
a. anterior cerebral artery
b. optic chiasm
c. infundibulum
d. mammilary body
e. posterior communicating artery
f. superior cerebellar artery
g. basilar artery
i-n
i. cerebellar tonsil
j. medulla
k. anterior commissure: bundle of axons that connects structures on either side
l. lamina terminalis: last wall, used to be front of brain
m. corpora quadrigemina (tectum): roof of portin of brain, above aqueduct
n. cerebral aqueduct
j-q
j. CN IX glossopharyngeal
k. CN XII hypoglossal
l. Pyramid
m. Olive
o. CN IV trochlear
p. Optic tract
q. Optic chiasm
h-o
h. trigeminal nerve
i. posterior cerebral artery
j. oculomotor nerve
k. uncus
l. internal carotid artery
m. optic nerve
n. olfactory trigone
o. olfactory tract
