human anatomy chapter 9

Helpfulness: +1
Set Details Share
Page to share:
Embed this setcancel
COPY
code changes based on your size selection
Size:
X
Show:
1

humans rely on muscles for (2)

1. Many of our physiological processes
2. Virtually all our dynamic interactions with the environment

2

three types of muscle tissue

1. skeletal muscle
2. cardiac muscle
3. smooth muscle

3

1. skeletal muscle functions

1. produce skeletal movement
2. maintain posture and body position
3. support soft tissue
4. regulate entering and exiting of material
5. maintain body temp.

4

2. cardiac muscle functions

1. Pushes blood through arteries and veins
2. Rhythmic contractions

5

3. Smooth muscle functions

1. Pushes fluids and solids along the digestive tract, for example
2. Involuntary contraction

6

Four basic properties that all muscle tissues share

1. excitability: The ability to respond to stimuli
2. contractility: The ability to shorten and exert a pull or tension
3. extensibility: The ability to continue to contract over a range of resting lengths
4. Elasticity: The ability to rebound toward its original length

7

Gross Anatomy of skeletal muscles is the study of... (4)

1. Overall organization of muscles
2. Connective tissue associated with muscles
3. Nerves associated with muscles
4. Blood vessels associated with muscles

8

Microscpoic anatomy of skeletal muscles is the study of... (3)

1. Myofibrils
2. Myofilaments
3. Sarcomeres

9

Gross Anatomy
Connective tissue of muscle

1. Epimysium
2. Perimysium
3. Endomysium

10

Gross Anatomy
Connective tissue of muscle
1. Epimysium
2. Perimysium
3. Endomysium

1. dense tissue that surrounds the entire muscle
2. dense tissue that divides the muscle into parallel compartments of fascicles
3. dense tissue that surrounds individual muscle fibers

11
card image

1. skeletal muscle (organ)
2. Muscle Fassicle (bundle of cells)
3. Muscle Fiber
4. Epimysium
5. Perimysium
6. Endomysium

12

Connective tissue of muscles

1. Tenconds: connect a muscle to a bone
2. Aponeuroses: Connect a muscle to a muscle

13

What converge to form tendons?(3)

1. Epimysium
2. Perimysium
3. Endomysium

14

Gross Anatomy
Nerves and Blood Vessels
1. Nerves....
2. There is a...
3. the nerve is...

1. Innervate the muscle
2. Chemical communication b/w a nerve and a muscle
3. "connected" to the muscle via the motor end plate---> this is the meuromuscular junction

15

Gross Anatomy
Nerves and Blood Vessels
4. Blood vessels...
5. they then...

4. Inntervate the endomysium of the muscle
5. branch to form coiled networks to accommodate flexion and extension of the muscle

16
card image

1. neuromuscular synapse
2. skeletal muscle fibers
3. Axons

17

Microanatomy of skeletal muscle fibers
1. Sarcolemma
2. Sarcoplasm
3. muscle fiber(3)

1. Membrane that surrounds the muscle cell
2. The cytosol of the muscle cell
3. A. Can be 30–40 cm in length
B. Multinucleated (each muscle cell has hundreds of nuclei)
C. Nuclei are located just deep to the sarcolemma

18

1. the sarcoplasm contains...
2. myofibrisl are responsible for...
3. myofibrils are attached to...
4. surrounding each myofibril is the...

1. myofibrils
2. the contraction of muscles
3. the sarcolemma at each end of the muscle cell
4. sarcoplasmic reticculum

19

1. Myofibrils are made of...
2. (these include...

1. myofilaments
2. A. Actin
B. Myosin

20

Sarcomere Organization
1. myosin
2. actin
3. both are arranged in...
4. all the myofilaments are arranged....

1. (Thick filament)
2. Thin Filament
3. repeating units called sarcomeres
4. parallel to the long axis of the cell

21

Sarcomere Organization
1. is...
2. approximately...
3. consists of...
4. this over lapping creates...

1. Main functioning unit of muscle fibers
2. 10,000 per myofibril
3. overlapping actin and myosin
4. the striations that gibe the skeletal muscle its identifiable characteristic

22

Sarcomere Organization
5. each Sarcomere consists of... (5)

A. Z line (Z disc)
B. I band
C. A band (overlapping A bands create striations)
D. H band
E. M line

23
card image

1. I band 4. H band
2. A band 5. thick filament
3. Z line 6. thin filament

24

Levels of organization
__A__ consists of __B__ -> Consists of __C__ -> consists of __D__ -> consists of __E__ -> consists of __F__ -> are made of __G__ and __H__

A. skeletal muscles B. Muscle fascicles
C. muscle fibers D. myofibrils
E. sarcomeres F. myofilaments
G. actin H. myosin

25
card image

1. skeletal mmuscle 4. myofibril
2. muscle fascicles 5. sarcomere
3. muscle fibers

26

Actin
1. twisted filament consisting of...
2. Each G actin molecule has an...
3. ____ bind to the active site on actin
4. ____: a protein that covers the the binding sites when the musle is relaxed
5. ___: holds tropomyosin in position

1. G Actin molecues
2. Active site
3. Myosin Cross- bridges
4. tropomyosin
5. troponin

27
card image

A. sarcomere B. H bank
c. myofibril D. Z line
E. M line F. Actin
G. Z line H. Titin
I. troponin J. Active Site
K. Tropomyosin L. G actin molecules

28

Myosin
1. myosin filaments consist of...
2. Myosin is a ____. it is held in place by:
A. protein forming the...
B. a Core of...

1. an elongated tail and a globular head (cross-bridges)
2. stationary molecule
A. M line
B. Titin connecting to the Z lines

29

Muscle contraction
1. A contracting muscle ____ in length
2. Contraction is caused by
3. Contraction is triggered by
4. Muscle contraction requires the presence
5. When a muscle contracts, actin filaments
6. This sliding action is called the

1. shortens
2. interactions between thick and thin filaments within the sarcomere
3. the presence of calcium ions
4. ATP
5. slide toward each other
6. sliding filament theory

30

The sliding filament theory
Upon contraction:
1. The H band and I band
2. The zone of overlap gets
3. The Z lines move
4. The width of the A band

1. get smaller
2. larger
3. closer together
4. remains constant throughout the contraction

31

Events leading to muscle conraction
1. an ___travels down the axon of a nerve
2. _____from the end of the axon at the motor end plate
3. This ultimately causes the sarcoplasmic reticulum to
4. Calcium ions

1. impulse
2. acetylcholine is released
3. release its stored calcium ions
4. bind to troponin

32

Events leading to muscle contraction
5. This binding action causes a
6. This rotation
7. ____extend and bind to the binding sites on actin
8. the _____ thus sliding the actin myofilament
9. As the actin myofilaments are pulled toward each other, the

5. rotation of the troponin- tropomyosin complex
6. exposes the binding sites on the actin myofilament
7. myosin heads
8. cross-bridge pivot
9. muscle becomes shorter

33

Motor units and Muscle control
Motor units
1. Precise control (example)
2. Less precise control (example)

1. A motor neuron controlling two or three muscle fibers
A. the control over the eye muscles
2. A motor neuron controlling perhaps 2000 muscle fibers
A. the control over the leg muscles

34

Motor units and muscle control
Muscle tension Depends on

1. The frequency of stimulation
2. The number of motor units involved

35

Motor units and muscle control
1. Muscle tone
2. Muscle spindles

1. A. The tension of a muscle when it is relaxed
B. Stabilizes the position of bones and joints
2. These are specialized muscle cells that are monitored by sensory nerves

36

Hypertrophy

The net effect is an enlargement of the muscle

37

Muscle Atrophy

Discontinued use causes decreased muscle size and muscle tone

38

Three major types of skeletal muscle fibers

1. Fast Fibers (white fibers)associated with eye muscles
2. Intermediate Fibers (pink Fibers)
3. Slow fibers (red fibers)associated with leg muscles

39

features of fast fibers (7)

1. Large in diameter
2. Large glycogen reserves
3. Relatively few mitochondria
4. Muscles contract using anaerobic metabolism
5. Fatigue easily
6. Can contract in 0.01 second or less after stimulation
7. Produce powerful contractions

40

Features of slow fibers (6)

1. Half the diameter of fast fibers
2. Take three times longer to contract after stimulation
3. Can contract for extended periods of time
4. Contain abundant myoglobin (creates the red color)
5. Muscles contract using aerobic metabolism
6. Have a large network of capillaries

41

Features of intermediate fibers

1. Similar to fast fibers
A. Have low myoglobin content
B. Have high glycolytic enzyme concentration
C. Contract using anaerobic metabolism
2. Similar to slow fibers
A. Have lots of mitochondria
B. Have a greater capillary supply
C. Resist fatigue

42

Distribution of fast, slow, and intermediate fibers
1. Fast fibers (3)

A. High density associated with eye and hand muscles
B. Sprinters have a high concentration of fast fibers
C. Repeated intense workouts increase the fast fibers

43

Distribution of fast, slow, and intermediate fibers
2. Slow and intermediate fibers (4)

A. None are associated with the eyes or hands
B. Found in high density in the back and leg muscles
C. Marathon runners have a high amount
D. Training for long distance running increases the proportion of intermediate fibers

44

muscle classifications based on shape or arrangement of fibers (7)

1. Parallel muscle fibers
2. Convergent muscle fibers
3. Pennate muscle fibers
4. Unipennate muscle fibers
5. Bipennate muscle fibers
6. Multipennate muscle fibers
7. Circular muscle fibers

45

1. PArallel Muscle fibers
Examples

Muscle fascicles are parallel to the longitudinal axis
Biceps brachii and rectus abdominis

46
card image

A. Parallel muscle
B. PArallel muscle

47

2. Convergent Muscle Fibers
examples

Muscle fibers form a broad area but come together at a common point
Pectoralis major

48
card image

D. Convergent muscle

49

3. Pennate Muscle Fibers
4. Unipennate muscle fibers
Example

3. Muscle fibers form an oblique angle to the tendon of the muscle
4. All the muscle fibers are on the same side of the tendon
Extensor digitorum

50

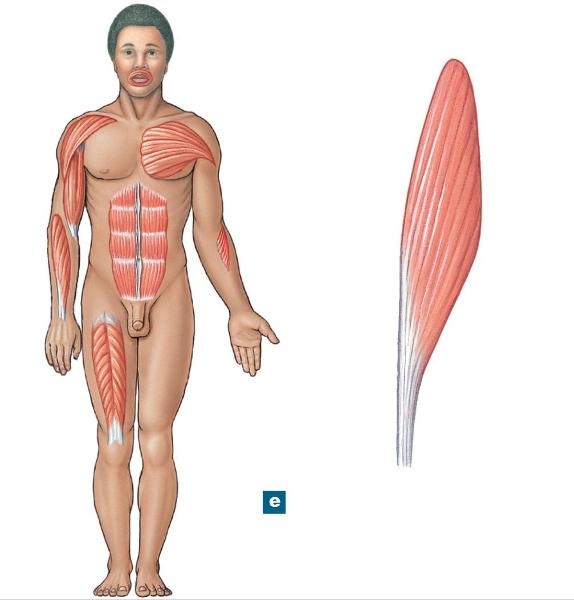

card image

E. Unipennate muscle

51

5. Bipennate muscle fiber
example

5. Muscle fibers are on both sides of the tendon
Rectus Femoris

52

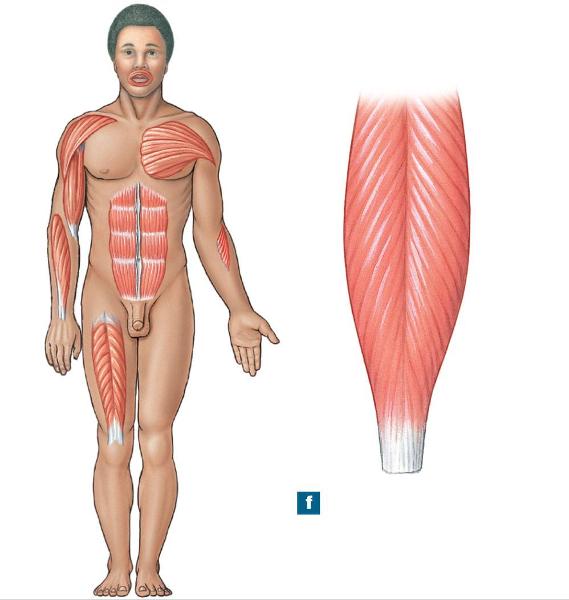

card image

F. Bipennate Muscle

53

6. Multipennate muscle fibers
example

6. The tendon branches within the muscle
Deltoid muscle

54
card image

G. multipennate muscle

55

7. Circular muscle fibers
A. AKA
B. examples

7. Muscle fibers form concentric rings
A. Sphincter muscles
B. Orbicularis oris and orbicularis oculi

56
card image

H. circular muscle

57

Muscle Terminology
1. Origin
2. Insertion
3. Action

1. Point of muscle attachment that remains stationary
2. Point of muscle attachment that is movable
3. The function of the muscle upon contraction

58

Muscles can be grouped according to their primary actions into four types:

1. Prime Movers (agonists)
2. Antagonists
3. Synergists
4. Fixators

59

1. Prime Movers (agonists)
2. Antagonists
3. Synergists
4. Fixators

1. Responsible for producing a particular movement
2. Actions oppose the action of the agonist
3. Assist the prime mover in performing an action
4. Agonist and antagonist muscles contracting at the same time to stabilize a joint

60

1. Prime Movers (agonists) examples
2. Antagonists examples
3. Synergists examples
4. Fixators examples

1. Biceps brachii – flexes the lower arm
2. Triceps brachii – extends the lower arm
3. Latissimus dorsi and teres major – contract to move the arm medially over the posterior body
4. Flexor and extensor muscles contract at the same time to stabilize an outstretched hand

61

Muscles can be named for

1. Specific body regions or location
2. Shape of the muscle
3. Orientation of the muscle fibers
4. Specific or unusual features
5. Its origin and insertion points
6. Primary function
7. References to occupational or habitual action

62

Specific body regions or locations
1. brachialis
2. tibialis anterior

1. associated with the brachium of the arm
2. associated with the anterior tibia

63

Shape of the muscle
1. trapezius
2. Deltoid

1. trapezoid shape
2. triangular shape

64

Orientation of the muscle fibers
1. Rectus femoris
2. External oblique

1. straight muscle of the leg
2. muscle on outside that is oriented with the fibers at an angle

65

Specific or unusual features
1. Biceps brachii
2. Teres Major

1. two origins
2. long, big, rounded muscle

66

Origin and insertion points
1. Sternocleidomastoid
2. Genioglossus

1. points of attachment are sternum, clavicle, and mastoid process
2. points of attachment are chin and tongue

67

Primary functions
1. Flexor carpi radialis
2. Adductor longus

1. a muscle that is near the radius and flexes the wrist.
2. a long muscle that adducts the leg

68

References to occupational or habitual actions
1. Buccinator
2. Sartorius

1. the buccinator area moves when playing a trumpet
2. derived from the Latin term (sartor), which is in reference to “tailors.” Tailors used to cross their legs to form a table when sewing material

69

Levers and Pulleys: A Systems Design for Movement
1. most of the time, upon contraction, a muscle causes...
2. this action is applied to a ____
3. This Lever moves on a fixed point called the ___
4. The action of the lever is apposed by a...

1. action
2. Lever (a bone)
3. Fulcrum (joint)
4. Force acting in the opposite direction

70

There are three classes of levers

1. First class
2. second class
3. third class

71

classes of levers
1. first class
example

1. The fulcrum (joint) lies between the applied force and the resistance force (opposed force)
tilting the head forward and backward

72

classes of levers
2. second class
example

2. The resistance is located between the applied force and the fulcrum (joint)
standing on your tip toes

73

classes of levers
3. third class
example

3. The force is applied between the resistance and fulcrum (joint)
flexing the lower arm

74

Levers and Pulleys: A Systems Design for Movement
1. sometimes, a tendon may...
2. this bony projection could be called...
3. example

1. loop around a bony projection
2. pulley
3. lateral malleolus and trochlea of the eye

75

Changes that occur in muscles as we age
(6)

1. Skeletal muscle fibers become smaller in diameter
2. There is a decrease in the number of myofibrils
3. Contain less glycogen reserves
4. Contain less myoglobin
5. There is a decrease in myosatellite cells
6. There is an increase in fibrous connective tissue

76

changes in muscles as we age
4. Contain less myoglobin results in(2)

1. decrease in strength and endurance
2. Muscles fatigue rapidly

77

changes occur in muscles as we age
6. There is an increase in fibrous connective tissue
A. Results in (2)

1. Results in fibrosis
2. The ability to recover from muscular injuries decreases
